SDO HMI 2014-05-15 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.76 | 172.54 | 22.03 | 112.15 | 15.19 | 248.83 | 36.57 | 297.34 | 0.6495 | -362.8 | -255.2 | |
|
previous
or next observation for the same group /

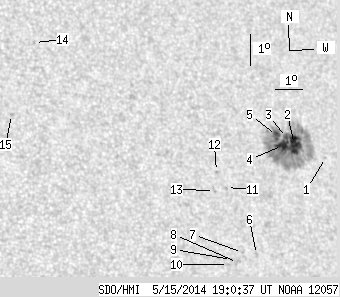

back to the solar disc SDO HMI 2014-05-15 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.48 | 14.93 | 250.52 | 38.26 | 296.02 | 0.6680 | 687.0 | 577.4 | |
| 17.41 | 158.16 | 11.40 | 103.25 | 15.31 | 249.36 | 37.10 | 297.19 | 0.6564 | -791.6 | -345.6 | |
| 1.71 | -2.00 | 1.11 | -2.00 | 15.53 | 249.09 | 36.83 | 297.65 | 0.6544 | -815.4 | 999999 | |
| 9.34 | -2.00 | 6.08 | -2.00 | 15.27 | 248.88 | 36.62 | 297.40 | 0.6505 | -1036.8 | 999999 | |
| 5.30 | -2.00 | 3.44 | -2.00 | 15.58 | 248.71 | 36.45 | 297.95 | 0.6502 | -943.4 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.96 | 11.79 | 247.27 | 35.01 | 293.20 | 0.6132 | 519.0 | 479.1 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 11.84 | 246.74 | 34.49 | 293.57 | 0.6068 | 798.0 | 680.6 | |
| 0.00 | 2.87 | 0.00 | 1.78 | 11.52 | 246.51 | 34.25 | 293.21 | 0.6023 | 679.0 | 621.1 | |
| 0.00 | 0.90 | 0.00 | 0.55 | 11.61 | 246.30 | 34.04 | 293.47 | 0.6000 | 642.0 | 535.0 | |
| 0.00 | 1.44 | 0.00 | 0.89 | 11.45 | 246.16 | 33.91 | 293.29 | 0.5974 | 732.0 | 614.2 | |
| 0.00 | 0.54 | 0.00 | 0.34 | 13.87 | 246.46 | 34.20 | 296.84 | 0.6139 | 679.0 | 591.3 | |
| 0.00 | 0.90 | 0.00 | 0.56 | 14.37 | 246.17 | 33.91 | 297.77 | 0.6130 | 651.0 | 551.6 | |
| 0.00 | 2.06 | 0.00 | 1.28 | 13.77 | 245.99 | 33.73 | 296.98 | 0.6075 | 692.0 | 551.0 | |
| 0.00 | 1.53 | 0.00 | 0.92 | 18.36 | 240.16 | 27.91 | 308.47 | 0.5695 | 683.0 | 480.5 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 16.02 | 238.96 | 26.70 | 306.09 | 0.5366 | 733.0 | 613.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
