SDO HMI 2014-05-15 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.45 | 52.07 | 8.13 | 27.51 | 8.55 | 195.29 | -16.97 | 56.23 | 0.3480 | -248.2 | 196.5 | |
|
previous
or next observation for the same group /

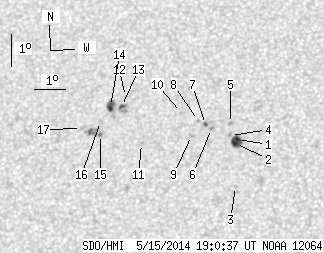

back to the solar disc SDO HMI 2014-05-15 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.77 | 10.14 | 1.96 | 5.28 | 8.09 | 197.86 | -14.40 | 53.18 | 0.3090 | -1074.9 | -743.8 | |
| 4.22 | -1.00 | 2.20 | -1.00 | 7.97 | 197.80 | -14.46 | 53.61 | 0.3086 | -1155.1 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 6.65 | 197.84 | -14.42 | 57.18 | 0.2956 | -792.0 | -582.1 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 8.22 | 197.63 | -14.63 | 53.27 | 0.3132 | -598.0 | -606.9 | |
| 0.00 | 1.88 | 0.00 | 0.98 | 8.59 | 197.62 | -14.64 | 52.35 | 0.3171 | -916.0 | -749.7 | |
| 0.00 | 1.26 | 0.00 | 0.66 | 8.45 | 197.02 | -15.24 | 53.81 | 0.3235 | -1074.0 | -909.7 | |
| 0.72 | 1.97 | 0.38 | 1.03 | 8.57 | 196.83 | -15.43 | 53.84 | 0.3274 | -1010.5 | -808.4 | |
| 0.00 | 1.35 | 0.00 | 0.71 | 8.70 | 196.60 | -15.66 | 53.92 | 0.3316 | -726.0 | -575.9 | |
| 0.00 | 2.15 | 0.00 | 1.13 | 8.24 | 196.39 | -15.87 | 55.42 | 0.3301 | -763.0 | -657.6 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 8.95 | 196.04 | -16.22 | 54.23 | 0.3414 | -595.0 | -409.9 | |
| 0.00 | 0.90 | 0.00 | 0.47 | 8.01 | 194.80 | -17.45 | 58.46 | 0.3500 | -738.0 | -652.3 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 9.48 | 194.22 | -18.04 | 55.85 | 0.3707 | 796.0 | 674.7 | |
| 1.53 | 5.92 | 0.81 | 3.15 | 9.17 | 194.11 | -18.15 | 56.72 | 0.3695 | 1087.1 | 866.1 | |
| 4.76 | 10.32 | 2.54 | 5.51 | 9.17 | 193.75 | -18.51 | 57.21 | 0.3744 | 965.3 | 753.6 | |
| 0.45 | 8.89 | 0.24 | 4.75 | 8.31 | 193.47 | -18.79 | 59.58 | 0.3712 | 1099.0 | 836.1 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 8.71 | 193.45 | -18.81 | 58.67 | 0.3747 | 869.0 | 629.0 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 8.51 | 192.84 | -19.42 | 59.93 | 0.3815 | 639.0 | 441.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
