Sunspot Group 12058

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12058	93.11	543.06	49.61	290.09	-14.18	229.45	18.30	235.39	0.3740	243.8	244.9

previous or next observation for the same group / back to the solar disc

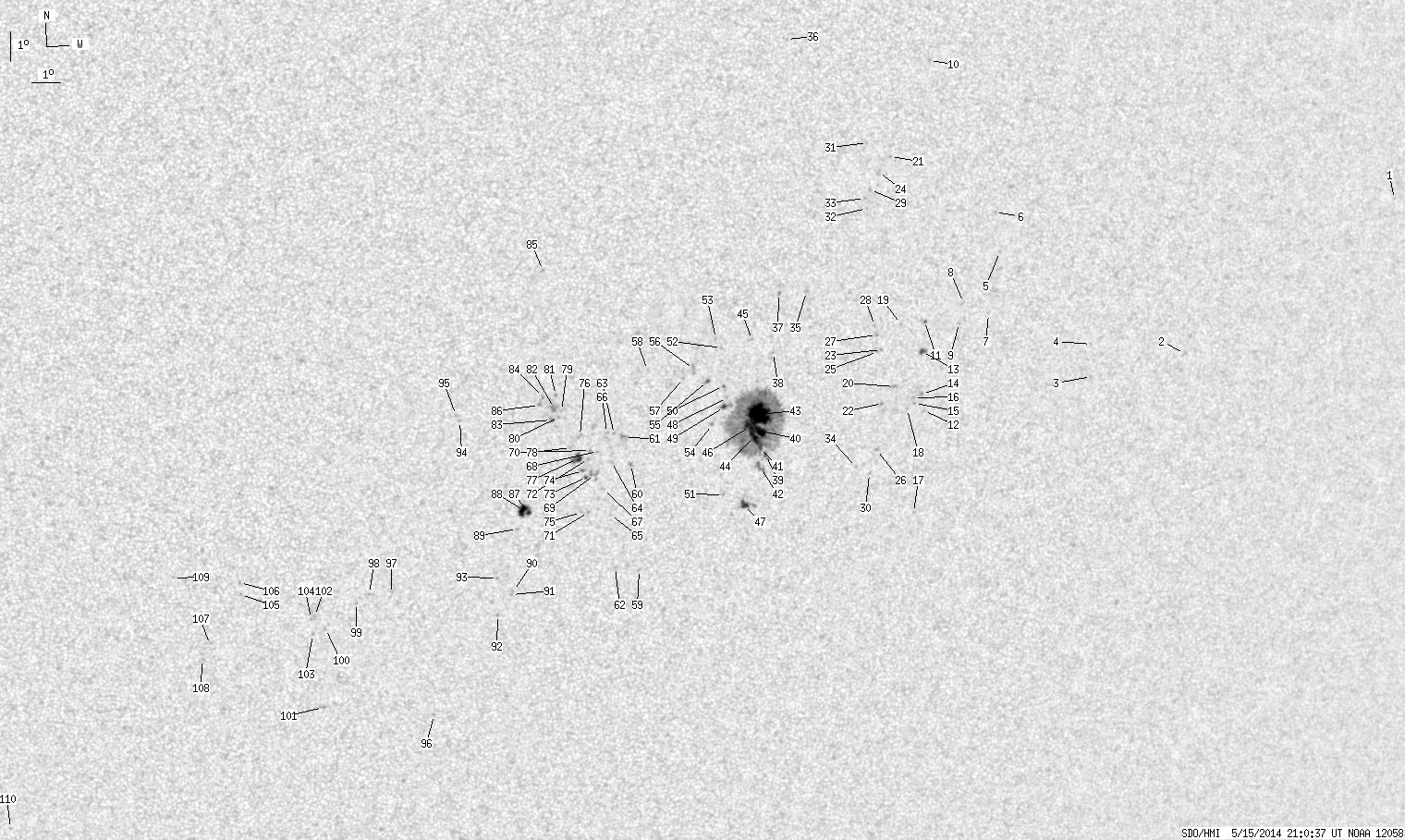

SDO HMI 2014-05-15 21:00:37 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	0.63	0.00	0.43	-6.09	254.67	43.52	263.89	0.6909	554.0	415.7
2	0.00	3.05	0.00	1.87	-11.43	246.30	35.15	254.03	0.5891	599.0	458.8
3	0.00	1.80	0.00	1.06	-12.28	242.66	31.51	251.13	0.5418	578.0	450.0
4	0.00	1.17	0.00	0.68	-11.21	242.53	31.38	253.01	0.5361	643.0	452.7
5	0.00	1.08	0.00	0.60	-8.23	238.74	27.59	257.32	0.4717	680.0	477.2
6	0.00	1.89	0.00	1.05	-6.92	238.48	27.33	260.00	0.4646	63.0	139.2
7	0.00	0.81	0.00	0.45	-10.28	238.49	27.34	252.96	0.4746	702.0	553.4
8	0.00	0.99	0.00	0.55	-9.93	237.53	26.38	253.20	0.4591	595.0	525.3
9	0.00	1.89	0.00	1.05	-10.61	237.42	26.27	251.71	0.4600	734.0	552.6
10	0.00	0.81	0.00	0.44	-2.00	235.89	24.74	270.88	0.4200	618.0	535.7
11	0.36	1.26	0.20	0.69	-10.57	236.15	25.00	251.04	0.4411	790.2	714.1
12	0.00	1.35	0.00	0.75	-13.55	236.41	25.26	244.94	0.4599	658.0	619.3
13	1.89	4.13	1.04	2.28	-11.58	236.14	24.99	248.84	0.4456	988.5	742.5
14	0.00	2.24	0.00	1.25	-12.99	236.28	25.13	245.97	0.4549	763.0	681.2
15	0.00	0.81	0.00	0.45	-13.31	236.04	24.89	245.14	0.4533	944.0	806.0
16	0.00	1.44	0.00	0.80	-13.12	235.98	24.83	245.48	0.4514	907.0	752.2
17	0.00	1.44	0.00	0.81	-16.97	236.46	25.32	238.34	0.4824	625.0	488.8
18	0.00	0.99	0.00	0.55	-13.49	235.78	24.63	244.54	0.4508	828.0	557.5
19	0.00	1.08	0.00	0.59	-10.67	235.27	24.13	250.24	0.4286	724.0	637.2
20	0.00	2.60	0.00	1.43	-12.76	235.23	24.08	245.63	0.4387	966.0	768.9
21	0.00	0.99	0.00	0.53	-5.17	234.58	23.43	263.01	0.4006	795.0	660.9
22	0.00	0.99	0.00	0.54	-13.33	234.84	23.69	244.12	0.4365	973.0	776.7
23	0.00	0.90	0.00	0.49	-11.54	234.64	23.49	247.84	0.4235	-649.0	-497.3
24	0.00	2.78	0.00	1.50	-5.70	234.17	23.02	261.59	0.3950	778.0	639.0
25	0.00	0.99	0.00	0.54	-11.61	234.51	23.36	247.60	0.4219	-625.0	-488.5
26	0.00	2.42	0.00	1.34	-14.87	234.81	23.66	240.86	0.4459	860.0	714.4
27	0.00	1.35	0.00	0.73	-11.06	234.43	23.28	248.78	0.4179	809.0	640.9
28	0.00	0.81	0.00	0.44	-10.75	234.34	23.19	249.41	0.4150	846.0	707.7
29	0.00	1.80	0.00	0.97	-6.28	233.89	22.74	260.03	0.3918	937.0	729.7
30	0.00	1.08	0.00	0.60	-15.69	234.63	23.48	239.06	0.4491	661.0	519.9
31	0.00	0.45	0.00	0.24	-4.73	233.73	22.58	263.94	0.3865	705.0	581.0
32	0.00	0.81	0.00	0.43	-6.89	233.79	22.64	258.44	0.3917	763.0	630.2
33	0.00	1.08	0.00	0.58	-6.55	233.71	22.56	259.25	0.3896	734.0	633.7
34	0.00	1.17	0.00	0.64	-15.48	234.13	22.98	238.98	0.4408	739.0	578.3
35	0.00	1.89	0.00	1.01	-9.66	231.80	20.65	250.13	0.3713	-919.0	-702.5
36	0.00	1.26	0.00	0.66	-1.38	230.83	19.69	273.18	0.3387	638.0	459.9
37	0.00	1.44	0.00	0.76	-9.73	230.82	19.67	249.10	0.3567	-586.0	-528.7
38	0.00	1.44	0.00	0.76	-11.69	230.76	19.61	243.96	0.3673	-749.0	-509.1
39	0.81	344.09	0.43	184.04	-15.09	230.78	19.63	236.00	0.3929	691.3	458.2
40	10.41	-39.00	5.58	-39.00	-14.32	230.51	19.36	237.39	0.3829	1076.4	999999
41	0.27	-39.00	0.14	-39.00	-14.88	230.56	19.41	236.20	0.3882	863.3	999999
42	0.00	7.09	0.00	3.82	-15.53	230.62	19.47	234.85	0.3945	775.0	678.8
43	39.68	-39.00	21.21	-39.00	-13.76	230.39	19.24	238.52	0.3770	1380.1	999999
44	7.81	-39.00	4.18	-39.00	-14.51	230.29	19.14	236.68	0.3815	1106.2	999999
45	0.00	0.99	0.00	0.52	-11.28	229.98	18.83	244.18	0.3531	-713.0	-573.3
46	7.99	-39.00	4.27	-39.00	-14.17	230.13	18.98	237.25	0.3766	1280.0	999999
47	4.49	11.22	2.42	6.06	-16.81	230.18	19.03	231.55	0.4002	-979.7	-618.0
48	0.00	1.26	0.00	0.67	-13.22	229.23	18.08	238.32	0.3566	997.0	770.3
49	1.53	6.46	0.81	3.43	-13.53	229.16	18.01	237.47	0.3580	1027.5	867.9
50	0.36	1.35	0.19	0.71	-12.82	229.07	17.92	239.10	0.3512	837.8	716.6
51	0.00	0.90	0.00	0.48	-16.48	229.38	18.23	231.11	0.3871	835.0	661.9
52	0.00	1.17	0.00	0.61	-11.57	228.92	17.77	242.17	0.3396	-602.0	-494.7
53	0.00	1.71	0.00	0.90	-11.26	228.71	17.56	242.72	0.3343	-747.0	-544.1
54	0.00	1.35	0.00	0.71	-14.12	228.78	17.63	235.51	0.3578	865.0	756.8
55	0.63	2.87	0.33	1.51	-12.68	228.51	17.36	238.71	0.3421	932.1	743.5
56	0.00	4.22	0.00	2.21	-12.28	227.99	16.84	239.01	0.3317	-719.0	-636.3
57	0.00	0.99	0.00	0.52	-12.59	227.66	16.51	237.70	0.3295	-832.0	-689.5
58	0.00	0.81	0.00	0.42	-12.33	226.38	15.23	236.40	0.3095	-650.0	-543.3
59	0.00	1.26	0.00	0.67	-19.06	226.60	15.45	221.49	0.3817	706.0	605.7
60	0.00	1.80	0.00	0.94	-15.49	226.01	14.86	227.75	0.3353	-928.0	-732.3
61	0.00	6.82	0.00	3.57	-14.59	225.72	14.57	229.34	0.3223	-728.0	-641.1
62	0.00	1.26	0.00	0.67	-19.00	225.73	14.58	220.00	0.3719	713.0	642.4
63	0.00	1.62	0.00	0.84	-14.47	225.35	14.20	228.94	0.3165	-786.0	-571.2
64	0.00	1.62	0.00	0.85	-15.40	225.32	14.17	226.64	0.3260	-618.0	-456.9
65	0.00	0.72	0.00	0.38	-17.21	225.42	14.27	222.88	0.3475	-708.0	-572.4
66	0.00	1.53	0.00	0.80	-14.44	225.09	13.94	228.50	0.3129	-793.0	-677.9
67	0.00	1.08	0.00	0.57	-16.34	225.09	13.94	224.09	0.3338	-685.0	-533.7
68	0.00	1.44	0.00	0.75	-15.07	224.81	13.66	226.42	0.3162	-783.0	-673.2
69	0.00	6.64	0.00	3.48	-15.84	224.77	13.62	224.53	0.3244	-670.0	-681.3
70	0.00	1.26	0.00	0.66	-15.04	224.55	13.40	225.96	0.3128	-904.0	-799.4
71	0.00	1.17	0.00	0.61	-17.12	224.63	13.48	221.48	0.3377	-981.0	-790.2
72	0.00	1.44	0.00	0.75	-15.32	224.50	13.35	225.20	0.3153	-870.0	-624.9
73	0.72	1.62	0.38	0.85	-15.94	224.48	13.33	223.72	0.3222	-824.2	-694.8
74	0.00	1.53	0.00	0.80	-15.72	224.34	13.19	223.91	0.3180	-947.0	-828.2
75	0.00	0.63	0.00	0.33	-17.13	224.37	13.22	220.94	0.3349	-753.0	-650.1
76	0.00	2.96	0.00	1.54	-14.54	224.17	13.02	226.35	0.3027	-647.0	-539.2
77	5.39	9.07	2.81	4.72	-15.32	224.12	12.97	224.37	0.3108	-1053.7	-818.0
78	0.00	1.26	0.00	0.65	-14.95	223.87	12.72	224.71	0.3037	-833.0	-585.1
79	0.00	0.72	0.00	0.37	-13.71	223.48	12.33	226.96	0.2851	-679.0	-590.1
80	0.00	1.17	0.00	0.60	-13.93	223.40	12.25	226.20	0.2865	-826.0	-671.3
81	0.00	0.90	0.00	0.46	-13.19	223.26	12.11	227.88	0.2766	-877.0	-753.4
82	0.00	5.39	0.00	2.78	-13.62	223.22	12.07	226.61	0.2809	-1029.0	-880.2
83	0.00	2.60	0.00	1.34	-14.03	223.15	12.00	225.38	0.2845	-1000.0	-909.4
84	0.00	1.26	0.00	0.65	-13.26	222.82	11.67	226.67	0.2719	-977.0	-823.6
85	0.00	1.53	0.00	0.78	-9.06	222.65	11.51	240.09	0.2283	-833.0	-668.2
86	0.00	1.53	0.00	0.79	-13.54	222.71	11.56	225.63	0.2737	-994.0	-861.8
87	2.06	14.54	1.08	7.58	-17.14	222.52	11.37	216.79	0.3159	856.8	746.5
88	8.71	-87.00	4.54	-87.00	-17.08	222.35	11.20	216.52	0.3134	1070.9	999999
89	0.00	1.17	0.00	0.61	-17.71	222.16	11.01	214.85	0.3199	765.0	622.7
90	0.00	0.54	0.00	0.28	-19.82	222.17	11.02	211.22	0.3485	-733.0	-587.7
91	0.00	1.44	0.00	0.76	-19.95	222.11	10.97	210.89	0.3498	-787.0	-594.4
92	0.00	1.08	0.00	0.57	-20.65	221.67	10.52	208.82	0.3560	-737.0	-572.8
93	0.00	1.08	0.00	0.57	-19.38	221.59	10.44	210.56	0.3375	-950.0	-761.5
94	0.00	1.35	0.00	0.69	-14.08	220.00	8.85	216.82	0.2502	-829.0	-624.5
95	0.00	1.89	0.00	0.96	-13.89	219.87	8.72	216.87	0.2464	-842.0	-540.5
96	0.00	0.90	0.00	0.48	-24.15	219.61	8.46	200.07	0.3931	-785.0	-654.3
97	0.00	0.99	0.00	0.52	-19.94	217.87	6.72	200.25	0.3193	-434.0	-453.3
98	0.00	0.99	0.00	0.52	-19.94	217.09	5.95	198.08	0.3151	-729.0	-561.5
99	0.00	0.72	0.00	0.38	-20.26	216.65	5.50	196.51	0.3180	-752.0	-624.2
100	0.00	1.53	0.00	0.80	-21.16	215.61	4.46	192.83	0.3279	-869.0	-581.1
101	0.00	2.15	0.00	1.15	-23.90	215.59	4.45	191.04	0.3717	-790.0	-656.3
102	0.00	0.81	0.00	0.42	-20.71	215.21	4.06	192.01	0.3193	-811.0	-676.1
103	0.00	1.44	0.00	0.75	-21.35	215.16	4.01	191.44	0.3295	-760.0	-638.1
104	0.00	1.17	0.00	0.61	-20.81	215.08	3.93	191.58	0.3204	-614.0	-580.3
105	0.00	1.35	0.00	0.70	-19.98	212.60	1.46	184.57	0.3010	-743.0	-536.7
106	0.00	0.90	0.00	0.47	-19.57	212.57	1.42	184.57	0.2940	-858.0	-712.3
107	0.00	0.63	0.00	0.33	-21.71	211.54	0.39	181.12	0.3287	-512.0	-629.9
108	0.00	0.90	0.00	0.47	-22.22	211.28	0.13	180.37	0.3372	-707.0	-604.8
109	0.00	0.81	0.00	0.42	-19.41	210.26	-0.89	177.09	0.2908	-768.0	-605.3
110	0.00	1.26	0.00	0.70	-28.21	204.11	-7.04	165.98	0.4475	-661.0	-485.6

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
