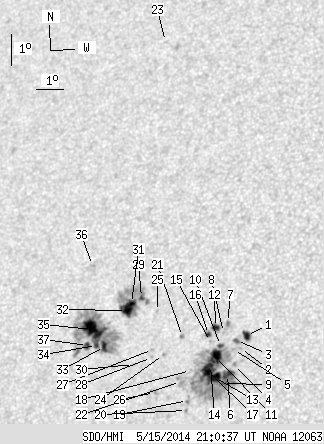

SDO HMI 2014-05-15 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.57 | 414.86 | 63.46 | 250.01 | 10.27 | 178.84 | -32.31 | 67.65 | 0.5703 | -103.4 | 4.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.49 | 6.91 | 2.62 | 4.03 | 10.48 | 181.99 | -29.16 | 65.26 | 0.5295 | -988.7 | -740.6 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 10.08 | 181.82 | -29.33 | 66.09 | 0.5296 | -922.0 | -758.9 | |
| 1.26 | 2.87 | 0.73 | 1.68 | 10.33 | 181.65 | -29.50 | 65.76 | 0.5333 | -943.6 | -705.0 | |
| 0.00 | 1.80 | 0.00 | 1.05 | 9.59 | 181.66 | -29.49 | 67.07 | 0.5292 | -937.0 | -780.2 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 10.05 | 181.58 | -29.57 | 66.30 | 0.5328 | -272.0 | -271.0 | |
| 6.28 | 163.74 | 3.67 | 96.07 | 9.28 | 181.44 | -29.71 | 67.75 | 0.5306 | -1091.8 | -454.7 | |
| 0.36 | 2.15 | 0.21 | 1.27 | 10.90 | 181.27 | -29.88 | 65.05 | 0.5416 | -662.2 | -557.7 | |
| 0.00 | 0.90 | 0.00 | 0.53 | 10.59 | 181.16 | -29.98 | 65.65 | 0.5413 | -663.0 | -569.8 | |
| 0.81 | -6.00 | 0.47 | -6.00 | 9.01 | 181.29 | -29.86 | 68.34 | 0.5312 | -1054.8 | 999999 | |
| 1.62 | -6.00 | 0.95 | -6.00 | 10.19 | 181.10 | -30.05 | 66.39 | 0.5400 | -775.8 | 999999 | |
| 13.02 | -6.00 | 7.65 | -6.00 | 9.85 | 180.96 | -30.19 | 67.07 | 0.5401 | -1125.9 | 999999 | |
| 3.59 | 6.73 | 2.12 | 3.97 | 10.75 | 180.86 | -30.29 | 65.58 | 0.5463 | -776.4 | -491.3 | |
| 10.41 | -6.00 | 6.10 | -6.00 | 9.20 | 180.98 | -30.17 | 68.19 | 0.5364 | -1047.1 | 999999 | |
| 2.60 | -6.00 | 1.53 | -6.00 | 9.58 | 180.81 | -30.34 | 67.65 | 0.5407 | -1078.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.48 | 10.32 | 180.73 | -30.42 | 66.41 | 0.5457 | -650.0 | -573.1 | |
| 1.89 | 3.77 | 1.11 | 2.23 | 10.54 | 180.63 | -30.52 | 66.09 | 0.5482 | -710.4 | -390.0 | |
| 11.04 | -6.00 | 6.49 | -6.00 | 9.39 | 180.72 | -30.43 | 68.02 | 0.5410 | -954.7 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 9.44 | 180.10 | -31.05 | 68.32 | 0.5496 | -329.0 | -187.2 | |
| 0.00 | 2.33 | 0.00 | 1.38 | 8.51 | 180.08 | -31.07 | 69.94 | 0.5454 | -604.0 | -514.7 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 8.20 | 180.07 | -31.08 | 70.48 | 0.5441 | -368.0 | -380.9 | |
| 0.00 | 1.89 | 0.00 | 1.13 | 10.50 | 179.70 | -31.45 | 66.76 | 0.5604 | -572.0 | -415.3 | |
| 0.00 | 6.82 | 0.00 | 4.05 | 9.11 | 179.78 | -31.37 | 69.09 | 0.5524 | 173.0 | 205.6 | |
| 0.00 | 0.90 | 0.00 | 0.58 | 19.95 | 177.42 | -33.73 | 54.20 | 0.6458 | 630.0 | 524.4 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 9.96 | 179.07 | -32.08 | 68.06 | 0.5661 | -766.0 | -539.2 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 11.31 | 178.69 | -32.45 | 66.07 | 0.5779 | 704.0 | 722.5 | |
| 0.00 | 3.50 | 0.00 | 2.10 | 8.79 | 178.87 | -32.28 | 70.14 | 0.5633 | 807.0 | 629.0 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 10.13 | 178.65 | -32.50 | 68.03 | 0.5725 | -559.0 | -406.8 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 9.88 | 178.64 | -32.51 | 68.44 | 0.5714 | -551.0 | -429.7 | |
| 1.53 | 60.15 | 0.93 | 36.93 | 11.76 | 178.05 | -33.10 | 65.74 | 0.5887 | 863.2 | 367.2 | |
| 0.00 | 1.44 | 0.00 | 0.87 | 9.68 | 178.01 | -33.14 | 69.13 | 0.5790 | 700.0 | 567.6 | |
| 4.85 | -29.00 | 2.97 | -29.00 | 11.58 | 177.70 | -33.45 | 66.24 | 0.5922 | 1090.4 | 999999 | |
| 10.14 | -29.00 | 6.23 | -29.00 | 11.37 | 177.54 | -33.61 | 66.67 | 0.5932 | 1037.0 | 999999 | |
| 4.31 | 136.81 | 2.66 | 84.88 | 10.27 | 176.86 | -34.29 | 68.80 | 0.5968 | 1072.4 | 409.0 | |
| 2.24 | -33.00 | 1.39 | -33.00 | 10.31 | 176.56 | -34.59 | 68.90 | 0.6009 | 766.2 | 999999 | |
| 22.08 | -33.00 | 13.73 | -33.00 | 10.81 | 176.34 | -34.81 | 68.22 | 0.6060 | 1060.0 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.07 | 12.82 | 176.05 | -35.10 | 65.30 | 0.6194 | 725.0 | 600.4 | |
| 3.05 | -33.00 | 1.90 | -33.00 | 10.32 | 176.22 | -34.93 | 69.06 | 0.6054 | 791.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
