SDO HMI 2014-05-15 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.36 | 156.61 | 19.63 | 104.13 | 15.20 | 248.85 | 38.26 | 296.37 | 0.6692 | -271.1 | -256.8 | |
|
previous
or next observation for the same group /

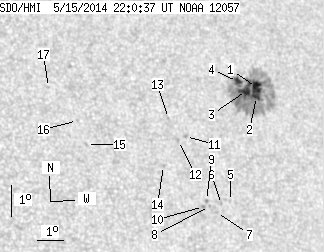

back to the solar disc SDO HMI 2014-05-15 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.97 | 142.93 | 6.69 | 95.55 | 15.47 | 249.41 | 38.82 | 296.44 | 0.6770 | -778.6 | -341.3 | |
| 4.58 | -1.00 | 3.07 | -1.00 | 15.18 | 249.35 | 38.75 | 296.08 | 0.6749 | -730.8 | 999999 | |
| 10.77 | -1.00 | 7.18 | -1.00 | 15.36 | 248.98 | 38.39 | 296.52 | 0.6716 | -925.7 | 999999 | |
| 4.04 | -1.00 | 2.69 | -1.00 | 15.64 | 248.68 | 38.09 | 297.07 | 0.6695 | -855.3 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.46 | 11.82 | 247.68 | 37.09 | 292.14 | 0.6394 | 421.0 | 319.1 | |
| 0.00 | 0.90 | 0.00 | 0.57 | 11.72 | 247.31 | 36.72 | 292.17 | 0.6344 | 558.0 | 456.7 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 11.46 | 247.08 | 36.49 | 291.90 | 0.6304 | 176.0 | 227.3 | |
| 0.00 | 1.08 | 0.00 | 0.68 | 11.64 | 246.84 | 36.25 | 292.30 | 0.6281 | 482.0 | 440.7 | |
| 0.00 | 1.26 | 0.00 | 0.80 | 11.83 | 246.75 | 36.16 | 292.62 | 0.6279 | 729.0 | 630.6 | |
| 0.00 | 1.08 | 0.00 | 0.68 | 11.64 | 246.61 | 36.01 | 292.41 | 0.6252 | 781.0 | 694.3 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 13.83 | 246.28 | 35.68 | 295.86 | 0.6317 | 659.0 | 560.5 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 13.69 | 245.99 | 35.39 | 295.83 | 0.6274 | 807.0 | 571.4 | |
| 0.00 | 1.17 | 0.00 | 0.74 | 14.38 | 245.73 | 35.13 | 297.00 | 0.6279 | 675.0 | 467.3 | |
| 0.00 | 1.08 | 0.00 | 0.68 | 12.89 | 245.28 | 34.69 | 295.04 | 0.6145 | 505.0 | 545.8 | |
| 0.00 | 1.26 | 0.00 | 0.76 | 13.48 | 242.50 | 31.90 | 297.74 | 0.5829 | 566.0 | 453.8 | |
| 0.00 | 0.90 | 0.00 | 0.55 | 14.23 | 242.28 | 31.69 | 299.06 | 0.5847 | 500.0 | 391.3 | |
| 0.00 | 0.72 | 0.00 | 0.44 | 15.26 | 241.39 | 30.79 | 301.32 | 0.5803 | 694.0 | 534.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
