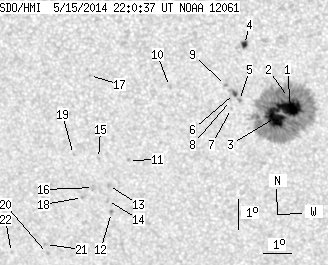

SDO HMI 2014-05-15 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.84 | 302.23 | 31.06 | 168.82 | -23.84 | 192.61 | -17.98 | 142.32 | 0.4628 | 582.6 | 344.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.11 | 270.68 | 15.05 | 150.62 | -23.61 | 193.40 | -17.19 | 143.07 | 0.4527 | 1304.0 | 421.9 | |
| 0.63 | -1.00 | 0.35 | -1.00 | -23.28 | 193.38 | -17.22 | 142.56 | 0.4491 | 1157.0 | 999999 | |
| 24.06 | -1.00 | 13.42 | -1.00 | -23.93 | 192.84 | -17.76 | 142.68 | 0.4617 | 1045.1 | 999999 | |
| 2.60 | 4.40 | 1.44 | 2.43 | -21.55 | 192.09 | -18.50 | 137.93 | 0.4423 | -963.1 | -723.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -23.36 | 191.66 | -18.93 | 140.13 | 0.4665 | 920.0 | 632.6 | |
| 1.44 | 4.40 | 0.80 | 2.46 | -23.13 | 191.52 | -19.07 | 139.59 | 0.4654 | 943.4 | 671.6 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -23.61 | 191.35 | -19.25 | 140.07 | 0.4725 | 548.0 | 457.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -23.35 | 191.35 | -19.24 | 139.69 | 0.4696 | 605.0 | 433.7 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -22.86 | 191.25 | -19.34 | 138.80 | 0.4653 | 878.0 | 673.7 | |
| 0.00 | 2.06 | 0.00 | 1.17 | -22.86 | 189.28 | -21.31 | 136.20 | 0.4858 | -682.0 | -557.1 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -25.25 | 187.37 | -23.22 | 137.44 | 0.5293 | -927.0 | -699.5 | |
| 0.00 | 1.71 | 0.00 | 1.01 | -26.95 | 186.37 | -24.22 | 138.67 | 0.5559 | -808.0 | -675.2 | |
| 0.00 | 1.80 | 0.00 | 1.06 | -26.06 | 186.47 | -24.13 | 137.56 | 0.5463 | -932.0 | -581.5 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -26.55 | 186.32 | -24.28 | 138.07 | 0.5526 | -752.0 | -594.2 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -25.16 | 186.29 | -24.30 | 136.11 | 0.5395 | -771.0 | -561.2 | |
| 0.00 | 2.96 | 0.00 | 1.76 | -26.11 | 185.90 | -24.70 | 137.02 | 0.5525 | -93.0 | -246.7 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -22.46 | 186.51 | -24.09 | 132.31 | 0.5121 | -606.0 | -481.7 | |
| 0.00 | 1.44 | 0.00 | 0.86 | -26.43 | 185.41 | -25.18 | 136.95 | 0.5604 | -767.0 | -539.6 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -25.01 | 185.40 | -25.19 | 134.96 | 0.5472 | -656.0 | -561.9 | |
| 0.00 | 0.90 | 0.00 | 0.55 | -28.27 | 183.61 | -26.99 | 137.60 | 0.5948 | -736.0 | -623.3 | |
| 0.00 | 1.71 | 0.00 | 1.05 | -27.97 | 183.62 | -26.98 | 137.21 | 0.5920 | -699.0 | -484.4 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -28.21 | 182.23 | -28.37 | 136.23 | 0.6075 | -518.0 | -355.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
