SDO HMI 2014-05-15 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.21 | 0.00 | 2.75 | -15.30 | 194.05 | -16.54 | 128.92 | 0.3544 | 829.8 | 681.4 | |
|
previous
or next observation for the same group /

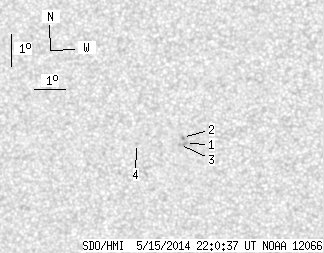

back to the solar disc SDO HMI 2014-05-15 22:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.15 | 0.00 | 1.14 | -15.34 | 194.36 | -16.23 | 129.51 | 0.3509 | 888.0 | 645.3 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -15.15 | 194.28 | -16.31 | 128.94 | 0.3501 | 972.0 | 883.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -15.37 | 194.16 | -16.43 | 129.24 | 0.3537 | 809.0 | 638.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -15.32 | 192.75 | -17.84 | 126.95 | 0.3713 | 650.0 | 517.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
