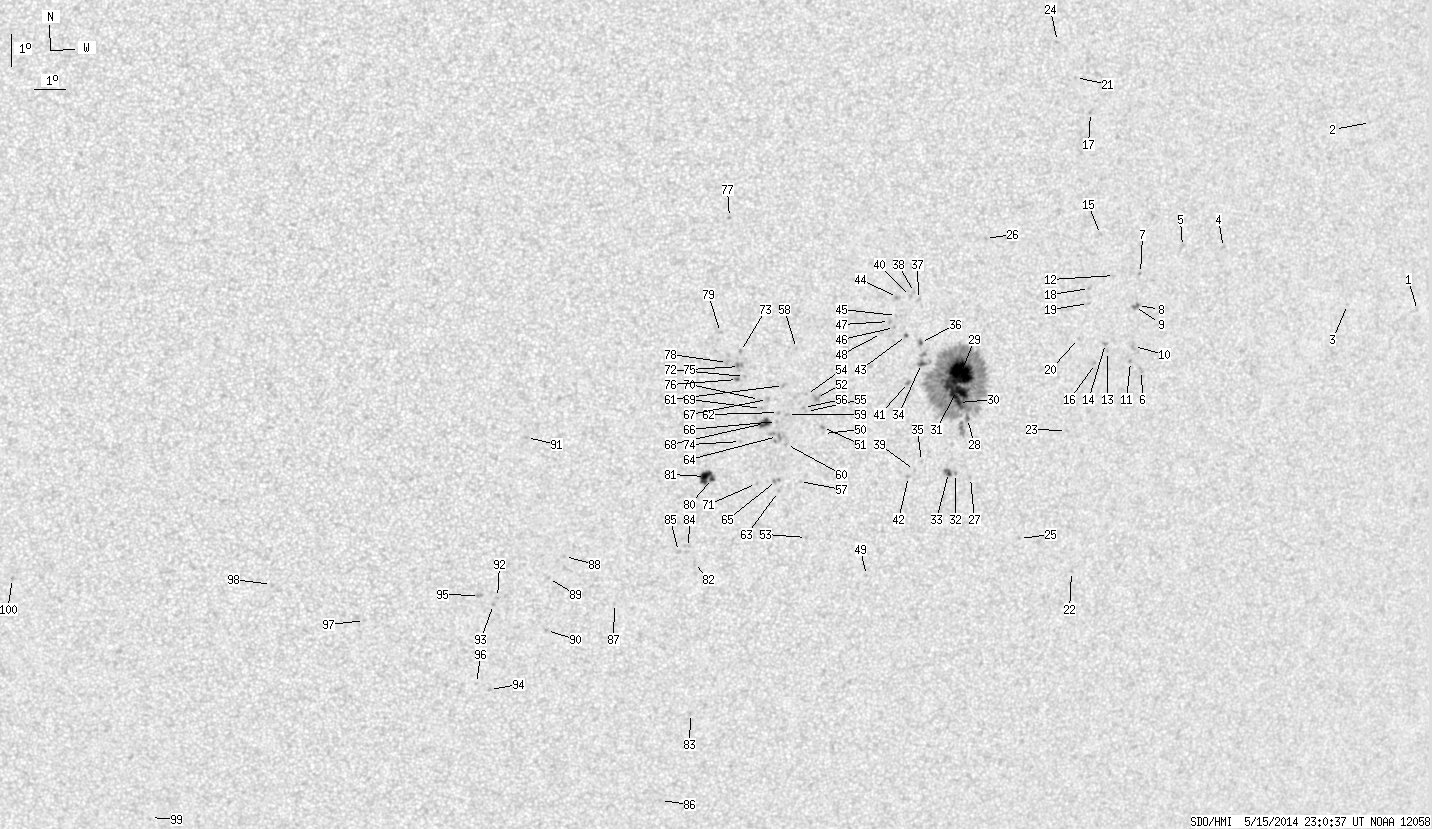

SDO HMI 2014-05-15 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.31 | 538.01 | 50.02 | 288.83 | -14.41 | 229.08 | 19.04 | 235.91 | 0.3857 | 211.0 | 226.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-15 23:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.45 | -11.52 | 246.35 | 36.30 | 254.24 | 0.6050 | 692.0 | 513.4 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -5.83 | 243.97 | 33.93 | 263.41 | 0.5612 | 460.0 | 361.0 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -11.40 | 243.68 | 33.64 | 253.54 | 0.5684 | 595.0 | 461.9 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -9.75 | 239.01 | 28.97 | 254.74 | 0.4968 | 644.0 | 516.9 | |
| 0.00 | 3.23 | 0.00 | 1.82 | -9.75 | 237.58 | 27.54 | 254.12 | 0.4757 | 550.0 | 376.1 | |
| 0.00 | 2.60 | 0.00 | 1.47 | -13.58 | 236.55 | 26.51 | 245.78 | 0.4777 | 619.0 | 567.7 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -10.60 | 236.20 | 26.16 | 251.63 | 0.4586 | 772.0 | 641.2 | |
| 0.72 | 3.68 | 0.40 | 2.05 | -11.58 | 236.20 | 26.15 | 249.57 | 0.4627 | 905.5 | 780.3 | |
| 0.27 | -8.00 | 0.15 | -8.00 | -11.62 | 236.09 | 26.05 | 249.44 | 0.4614 | 1002.7 | 999999 | |
| 0.00 | 3.59 | 0.00 | 2.01 | -12.85 | 236.19 | 26.15 | 246.99 | 0.4687 | 816.0 | 724.5 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -13.31 | 236.14 | 26.10 | 246.02 | 0.4704 | 901.0 | 749.3 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -10.68 | 235.32 | 25.28 | 250.95 | 0.4458 | 514.0 | 435.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -13.02 | 235.31 | 25.27 | 246.01 | 0.4571 | 727.0 | 622.3 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -12.77 | 235.22 | 25.17 | 246.44 | 0.4544 | 831.0 | 734.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -9.44 | 234.74 | 24.70 | 253.36 | 0.4321 | 718.0 | 525.7 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -13.39 | 234.94 | 24.90 | 244.94 | 0.4540 | 859.0 | 759.3 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -5.73 | 234.19 | 24.15 | 261.79 | 0.4130 | 753.0 | 614.6 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -11.09 | 234.51 | 24.47 | 249.52 | 0.4356 | 681.0 | 509.9 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -11.55 | 234.51 | 24.47 | 248.52 | 0.4380 | -561.0 | -410.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -12.63 | 234.28 | 24.24 | 246.01 | 0.4402 | 686.0 | 530.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -4.68 | 233.65 | 23.61 | 264.25 | 0.4028 | 642.0 | 517.4 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -19.90 | 235.00 | 24.96 | 232.77 | 0.5003 | 732.0 | 561.9 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -15.48 | 234.18 | 24.14 | 240.07 | 0.4567 | 729.0 | 586.3 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -3.60 | 233.02 | 22.98 | 266.90 | 0.3918 | 588.0 | 585.9 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -18.89 | 233.01 | 22.97 | 232.44 | 0.4677 | 712.0 | 580.1 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -9.62 | 230.92 | 20.88 | 250.38 | 0.3746 | -839.0 | -625.1 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -17.00 | 231.08 | 21.04 | 233.76 | 0.4275 | -750.0 | -603.3 | |
| 0.81 | 353.59 | 0.44 | 190.48 | -15.16 | 230.78 | 20.74 | 237.18 | 0.4084 | 696.6 | 453.5 | |
| 41.12 | -28.00 | 22.14 | -28.00 | -13.77 | 230.41 | 20.37 | 239.82 | 0.3928 | 1317.4 | 999999 | |
| 3.95 | -28.00 | 2.13 | -28.00 | -14.67 | 230.43 | 20.39 | 237.83 | 0.3998 | 959.7 | 999999 | |
| 23.35 | -28.00 | 12.58 | -28.00 | -14.30 | 230.33 | 20.29 | 238.53 | 0.3956 | 1137.8 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -16.88 | 230.56 | 20.52 | 233.35 | 0.4198 | -799.0 | -673.1 | |
| 2.78 | 4.76 | 1.52 | 2.59 | -16.85 | 230.32 | 20.28 | 233.10 | 0.4165 | -993.7 | -803.4 | |
| 1.80 | 9.97 | 0.96 | 5.32 | -13.48 | 229.09 | 19.05 | 238.92 | 0.3722 | 989.8 | 839.8 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -16.52 | 229.38 | 19.33 | 232.55 | 0.4015 | 732.0 | 585.6 | |
| 0.99 | 2.15 | 0.53 | 1.15 | -12.84 | 229.01 | 18.97 | 240.38 | 0.3662 | 804.5 | 593.6 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -11.52 | 228.85 | 18.81 | 243.51 | 0.3545 | -583.0 | -499.9 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -11.30 | 228.70 | 18.66 | 243.89 | 0.3510 | -851.0 | -668.4 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.81 | 229.17 | 19.13 | 231.68 | 0.4015 | 760.0 | 622.2 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -11.43 | 228.58 | 18.54 | 243.43 | 0.3500 | -784.0 | -677.6 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -14.08 | 228.71 | 18.67 | 237.04 | 0.3717 | 875.0 | 746.1 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -17.00 | 228.99 | 18.95 | 231.04 | 0.4010 | 809.0 | 698.0 | |
| 0.54 | 1.98 | 0.29 | 1.05 | -12.63 | 228.54 | 18.49 | 240.31 | 0.3579 | 800.8 | 713.1 | |
| 0.00 | 2.24 | 0.00 | 1.18 | -11.46 | 228.16 | 18.12 | 242.84 | 0.3441 | -987.0 | -788.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -12.02 | 228.16 | 18.12 | 241.40 | 0.3481 | -654.0 | -473.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -12.39 | 228.13 | 18.08 | 240.40 | 0.3502 | -671.0 | -565.4 | |
| 0.00 | 2.15 | 0.00 | 1.14 | -12.20 | 227.95 | 17.91 | 240.64 | 0.3463 | -735.0 | -626.5 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -12.58 | 227.71 | 17.67 | 239.37 | 0.3458 | -708.0 | -556.4 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -20.13 | 227.92 | 17.88 | 223.53 | 0.4203 | 643.0 | 468.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -15.69 | 226.05 | 16.01 | 229.32 | 0.3517 | -597.0 | -427.3 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -15.50 | 226.01 | 15.97 | 229.66 | 0.3492 | -918.0 | -728.4 | |
| 0.00 | 5.03 | 0.00 | 2.64 | -14.57 | 225.74 | 15.70 | 231.38 | 0.3367 | -873.0 | -719.0 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -18.95 | 225.78 | 15.74 | 222.16 | 0.3838 | 740.0 | 570.1 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -14.49 | 225.41 | 15.37 | 231.02 | 0.3315 | -749.0 | -559.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -15.01 | 225.45 | 15.41 | 229.83 | 0.3373 | -695.0 | -510.2 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -14.89 | 225.34 | 15.30 | 229.93 | 0.3347 | -785.0 | -622.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -17.20 | 225.39 | 15.35 | 224.91 | 0.3597 | -589.0 | -513.2 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -13.07 | 224.99 | 14.95 | 233.90 | 0.3124 | -760.0 | -608.2 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -15.11 | 224.84 | 14.80 | 228.49 | 0.3307 | -831.0 | -623.6 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -16.04 | 224.87 | 14.83 | 226.43 | 0.3410 | -773.0 | -619.7 | |
| 0.00 | 2.24 | 0.00 | 1.17 | -14.21 | 224.65 | 14.61 | 230.31 | 0.3190 | -855.0 | -642.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -15.05 | 224.54 | 14.50 | 228.08 | 0.3264 | -866.0 | -775.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -17.52 | 224.73 | 14.68 | 223.04 | 0.3558 | -756.0 | -634.7 | |
| 0.00 | 9.34 | 0.00 | 4.91 | -15.80 | 224.56 | 14.52 | 226.39 | 0.3346 | -699.0 | -696.5 | |
| 0.00 | 3.32 | 0.00 | 1.76 | -17.17 | 224.63 | 14.59 | 223.56 | 0.3508 | -768.0 | -768.9 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -15.33 | 224.50 | 14.45 | 227.33 | 0.3288 | -821.0 | -627.5 | |
| 0.00 | 2.51 | 0.00 | 1.31 | -14.65 | 224.16 | 14.12 | 228.30 | 0.3174 | -818.0 | -681.8 | |
| 5.48 | 8.26 | 2.87 | 4.32 | -15.40 | 224.11 | 14.07 | 226.43 | 0.3249 | -1003.4 | -774.3 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -14.93 | 223.98 | 13.94 | 227.28 | 0.3183 | -823.0 | -620.4 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -14.66 | 223.90 | 13.86 | 227.79 | 0.3143 | -806.0 | -635.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -17.27 | 223.99 | 13.94 | 222.10 | 0.3447 | -739.0 | -558.0 | |
| 0.00 | 1.26 | 0.00 | 0.65 | -13.95 | 223.37 | 13.33 | 228.49 | 0.3002 | -750.0 | -604.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -13.18 | 223.20 | 13.16 | 230.18 | 0.2899 | -890.0 | -679.5 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -15.97 | 223.37 | 13.33 | 223.64 | 0.3226 | -664.0 | -442.5 | |
| 0.00 | 4.67 | 0.00 | 2.42 | -13.64 | 223.20 | 13.16 | 228.93 | 0.2947 | -830.0 | -864.5 | |
| 0.72 | 2.60 | 0.37 | 1.35 | -14.04 | 223.16 | 13.11 | 227.79 | 0.2985 | -963.2 | -836.2 | |
| 0.00 | 1.35 | 0.00 | 0.69 | -9.08 | 222.67 | 12.63 | 242.18 | 0.2453 | -942.0 | -742.3 | |
| 0.00 | 2.24 | 0.00 | 1.16 | -13.52 | 222.81 | 12.77 | 228.41 | 0.2885 | -991.0 | -805.7 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -12.60 | 222.54 | 12.50 | 230.39 | 0.2753 | -745.0 | -585.2 | |
| 2.07 | 14.64 | 1.08 | 7.66 | -17.13 | 222.54 | 12.50 | 219.38 | 0.3274 | 834.2 | 693.7 | |
| 8.71 | -80.00 | 4.56 | -80.00 | -17.07 | 222.31 | 12.27 | 218.99 | 0.3243 | 1022.6 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -19.78 | 222.14 | 12.10 | 213.65 | 0.3576 | -746.0 | -572.3 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -24.64 | 222.43 | 12.39 | 207.40 | 0.4256 | 704.0 | 456.2 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -19.31 | 221.91 | 11.87 | 213.94 | 0.3492 | -552.0 | -626.0 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -19.43 | 221.59 | 11.55 | 213.02 | 0.3480 | -862.0 | -650.0 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -27.52 | 221.70 | 11.66 | 202.99 | 0.4607 | 638.0 | 490.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -21.10 | 219.60 | 9.56 | 205.98 | 0.3553 | -864.0 | -695.1 | |
| 0.00 | 1.08 | 0.00 | 0.56 | -19.62 | 217.88 | 7.84 | 203.68 | 0.3215 | -805.0 | -643.7 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -20.32 | 217.40 | 7.36 | 201.50 | 0.3290 | -743.0 | -593.7 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -21.98 | 217.41 | 7.37 | 199.70 | 0.3545 | -804.0 | -612.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -15.88 | 216.52 | 6.48 | 205.24 | 0.2556 | -863.0 | -771.4 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -20.93 | 215.76 | 5.72 | 196.47 | 0.3297 | -769.0 | -657.9 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -21.15 | 215.64 | 5.60 | 195.94 | 0.3327 | -817.0 | -642.4 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -23.89 | 215.61 | 5.57 | 193.73 | 0.3757 | -752.0 | -580.0 | |
| 0.00 | 2.87 | 0.00 | 1.50 | -20.87 | 215.17 | 5.13 | 194.91 | 0.3261 | -788.0 | -709.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -23.70 | 215.17 | 5.13 | 192.81 | 0.3710 | -649.0 | -521.3 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -21.67 | 211.44 | 1.40 | 183.98 | 0.3291 | -783.0 | -609.6 | |
| 0.00 | 2.15 | 0.00 | 1.12 | -20.52 | 208.42 | -1.62 | 175.09 | 0.3102 | -399.0 | -460.5 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -28.11 | 204.15 | -5.89 | 168.13 | 0.4422 | -282.0 | -386.8 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -20.28 | 200.01 | -10.03 | 151.78 | 0.3470 | -844.0 | -658.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
