SDO HMI 2014-05-16 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.66 | 527.36 | 47.13 | 284.45 | -14.30 | 229.33 | 19.84 | 237.19 | 0.3949 | 242.0 | 256.0 | |
|
previous
or next observation for the same group /

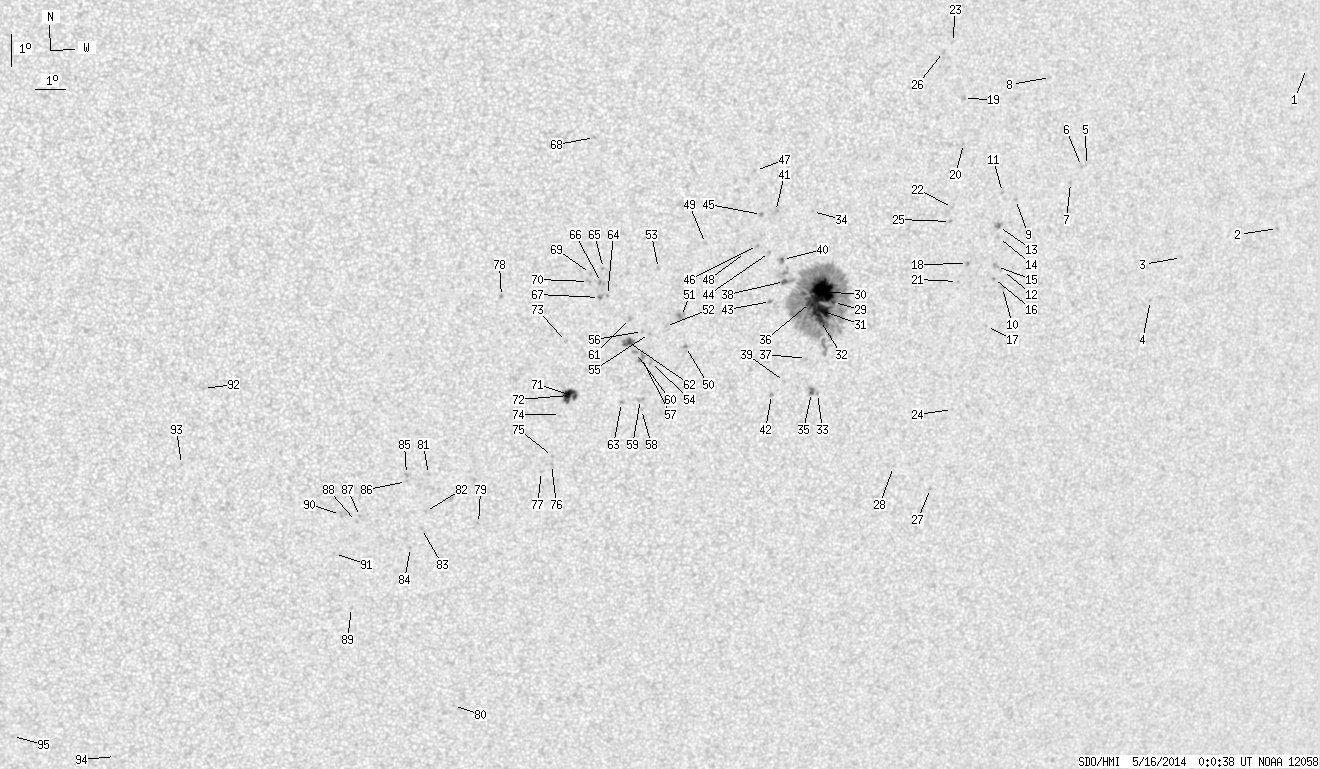

back to the solar disc SDO HMI 2014-05-16 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.50 | -6.59 | 246.87 | 37.38 | 262.53 | 0.6105 | 478.0 | 447.6 | |
| 0.00 | 1.35 | 0.00 | 0.84 | -11.50 | 246.33 | 36.84 | 254.43 | 0.6122 | 711.0 | 522.6 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -12.48 | 242.83 | 33.35 | 251.56 | 0.5679 | 588.0 | 476.0 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -13.83 | 241.89 | 32.40 | 248.81 | 0.5601 | 620.0 | 451.1 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -9.73 | 239.06 | 29.57 | 255.01 | 0.5056 | 528.0 | 430.8 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -9.77 | 238.89 | 29.40 | 254.88 | 0.5031 | 721.0 | 641.6 | |
| 0.00 | 1.35 | 0.00 | 0.77 | -10.27 | 238.55 | 29.06 | 253.76 | 0.4998 | 698.0 | 519.7 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -7.08 | 237.59 | 28.10 | 259.86 | 0.4767 | 574.0 | 434.0 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -10.82 | 236.68 | 27.19 | 251.73 | 0.4745 | 761.0 | 618.4 | |
| 0.00 | 3.05 | 0.00 | 1.73 | -13.53 | 236.52 | 27.03 | 246.22 | 0.4848 | 732.0 | 523.3 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -10.62 | 236.21 | 26.72 | 251.90 | 0.4668 | 808.0 | 639.5 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -13.01 | 236.46 | 26.97 | 247.21 | 0.4813 | 540.0 | 535.1 | |
| 0.90 | 4.22 | 0.50 | 2.37 | -11.66 | 236.17 | 26.68 | 249.73 | 0.4707 | 925.0 | 748.9 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -12.00 | 236.21 | 26.72 | 249.07 | 0.4728 | 65.0 | 84.9 | |
| 0.00 | 3.14 | 0.00 | 1.77 | -12.89 | 236.23 | 26.75 | 247.29 | 0.4775 | 875.0 | 755.7 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -13.26 | 236.17 | 26.69 | 246.52 | 0.4785 | 784.0 | 747.8 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -14.75 | 236.11 | 26.63 | 243.58 | 0.4859 | 654.0 | 489.3 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -12.82 | 235.22 | 25.73 | 246.74 | 0.4627 | 884.0 | 736.3 | |
| 0.00 | 2.60 | 0.00 | 1.43 | -7.78 | 234.65 | 25.16 | 257.34 | 0.4336 | 599.0 | 487.4 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -9.15 | 234.75 | 25.26 | 254.29 | 0.4395 | 607.0 | 449.6 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -13.38 | 234.94 | 25.45 | 245.39 | 0.4617 | 691.0 | 660.5 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -11.11 | 234.53 | 25.05 | 249.86 | 0.4443 | 708.0 | 543.6 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -6.08 | 234.19 | 24.70 | 261.10 | 0.4223 | 762.0 | 598.4 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -17.36 | 235.28 | 25.80 | 238.03 | 0.4916 | 656.0 | 521.7 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -11.54 | 234.51 | 25.02 | 248.92 | 0.4459 | -616.0 | -371.3 | |
| 0.00 | 1.80 | 0.00 | 0.98 | -6.36 | 233.90 | 24.41 | 260.36 | 0.4184 | 702.0 | 639.6 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -19.86 | 234.90 | 25.42 | 233.29 | 0.5056 | 567.0 | 436.9 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -19.18 | 233.48 | 24.00 | 233.01 | 0.4828 | 598.0 | 397.4 | |
| 1.26 | 371.32 | 0.68 | 200.67 | -14.09 | 230.79 | 21.31 | 240.12 | 0.4081 | 675.1 | 463.0 | |
| 39.33 | -29.00 | 21.24 | -29.00 | -13.76 | 230.36 | 20.87 | 240.39 | 0.3997 | 1326.5 | 999999 | |
| 18.41 | -29.00 | 9.96 | -29.00 | -14.35 | 230.38 | 20.89 | 239.11 | 0.4043 | 1077.2 | 999999 | |
| 4.22 | -29.00 | 2.29 | -29.00 | -14.66 | 230.41 | 20.92 | 238.47 | 0.4071 | 920.1 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -16.93 | 230.56 | 21.07 | 233.92 | 0.4273 | -717.0 | -596.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -11.30 | 229.86 | 20.37 | 245.67 | 0.3762 | -698.0 | -601.2 | |
| 0.72 | 3.59 | 0.39 | 1.96 | -16.90 | 230.35 | 20.86 | 233.72 | 0.4244 | -955.0 | -897.8 | |
| 5.03 | -29.00 | 2.71 | -29.00 | -14.11 | 230.02 | 20.54 | 239.24 | 0.3976 | 1274.9 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -15.84 | 230.06 | 20.58 | 235.53 | 0.4118 | -431.0 | -304.2 | |
| 1.62 | -29.00 | 0.87 | -29.00 | -13.47 | 229.10 | 19.62 | 239.63 | 0.3800 | 991.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -16.57 | 229.40 | 19.91 | 233.20 | 0.4094 | 837.0 | 654.9 | |
| 0.63 | 3.50 | 0.34 | 1.87 | -12.79 | 228.98 | 19.49 | 241.09 | 0.3733 | 894.3 | 517.1 | |
| 0.00 | 3.14 | 0.00 | 1.67 | -11.32 | 228.64 | 19.16 | 244.38 | 0.3584 | -721.0 | -710.7 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -16.98 | 229.01 | 19.52 | 231.84 | 0.4081 | 874.0 | 732.2 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -14.09 | 228.69 | 19.21 | 237.67 | 0.3792 | 835.0 | 658.4 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -12.58 | 228.54 | 19.05 | 241.08 | 0.3655 | 832.0 | 643.7 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -11.42 | 228.19 | 18.70 | 243.62 | 0.3524 | -906.0 | -760.8 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -12.37 | 228.13 | 18.64 | 241.11 | 0.3581 | -632.0 | -564.7 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -10.08 | 227.91 | 18.43 | 246.92 | 0.3397 | -652.0 | -555.6 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -12.59 | 227.75 | 18.26 | 240.09 | 0.3544 | -605.0 | -477.6 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -12.33 | 226.43 | 16.94 | 238.98 | 0.3336 | -672.0 | -446.1 | |
| 0.00 | 1.44 | 0.00 | 0.76 | -15.52 | 226.01 | 16.53 | 230.54 | 0.3565 | -840.0 | -670.2 | |
| 0.00 | 5.75 | 0.00 | 3.03 | -14.59 | 225.81 | 16.32 | 232.36 | 0.3450 | -732.0 | -660.7 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -14.91 | 225.31 | 15.82 | 230.78 | 0.3416 | -670.0 | -666.4 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -13.12 | 224.96 | 15.47 | 234.64 | 0.3200 | -725.0 | -557.6 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -16.03 | 224.91 | 15.42 | 227.51 | 0.3480 | -557.0 | -582.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -15.13 | 224.81 | 15.32 | 229.38 | 0.3374 | -756.0 | -703.2 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -15.07 | 224.57 | 15.09 | 229.10 | 0.3339 | -891.0 | -706.1 | |
| 0.00 | 5.03 | 0.00 | 2.65 | -15.88 | 224.60 | 15.11 | 227.30 | 0.3427 | -768.0 | -730.5 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -17.50 | 224.73 | 15.24 | 224.08 | 0.3620 | -762.0 | -508.9 | |
| 0.00 | 3.59 | 0.00 | 1.90 | -17.19 | 224.67 | 15.19 | 224.61 | 0.3578 | -775.0 | -706.8 | |
| 0.00 | 2.24 | 0.00 | 1.18 | -15.73 | 224.39 | 14.91 | 227.26 | 0.3386 | -885.0 | -726.6 | |
| 0.00 | 2.60 | 0.00 | 1.36 | -14.67 | 224.16 | 14.67 | 229.29 | 0.3246 | -915.0 | -702.6 | |
| 4.04 | 7.90 | 2.12 | 4.15 | -15.42 | 224.14 | 14.66 | 227.50 | 0.3323 | -1032.3 | -825.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -17.29 | 224.06 | 14.57 | 223.26 | 0.3520 | -909.0 | -739.6 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -13.97 | 223.37 | 13.88 | 229.54 | 0.3074 | -808.0 | -667.4 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -13.14 | 223.19 | 13.71 | 231.38 | 0.2966 | -799.0 | -635.1 | |
| 0.00 | 2.78 | 0.00 | 1.45 | -13.57 | 223.15 | 13.67 | 230.15 | 0.3005 | -1047.0 | -943.5 | |
| 0.36 | 2.78 | 0.19 | 1.45 | -14.03 | 223.12 | 13.63 | 228.87 | 0.3048 | -1031.2 | -856.5 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -9.12 | 222.72 | 13.23 | 243.03 | 0.2548 | -899.0 | -791.6 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -13.29 | 222.79 | 13.30 | 230.13 | 0.2929 | -892.0 | -714.5 | |
| 0.00 | 2.87 | 0.00 | 1.49 | -13.54 | 222.73 | 13.25 | 229.37 | 0.2949 | -944.0 | -750.4 | |
| 2.07 | 14.64 | 1.08 | 7.68 | -17.12 | 222.51 | 13.02 | 220.51 | 0.3329 | 856.3 | 688.7 | |
| 9.07 | -71.00 | 4.76 | -71.00 | -17.09 | 222.31 | 12.82 | 220.15 | 0.3304 | 1048.8 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.70 | -15.40 | 222.14 | 12.65 | 223.45 | 0.3084 | -670.0 | -576.8 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -17.69 | 222.09 | 12.60 | 218.49 | 0.3355 | 154.0 | 285.5 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -19.01 | 221.93 | 12.44 | 215.67 | 0.3508 | -782.0 | -595.8 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -19.26 | 221.91 | 12.43 | 215.20 | 0.3539 | -788.0 | -617.1 | |
| 0.00 | 1.35 | 0.00 | 0.71 | -19.49 | 221.60 | 12.11 | 214.15 | 0.3539 | -760.0 | -607.9 | |
| 0.00 | 1.62 | 0.00 | 0.83 | -14.03 | 219.99 | 10.50 | 221.61 | 0.2674 | -867.0 | -679.7 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -21.16 | 219.65 | 10.16 | 207.27 | 0.3606 | -851.0 | -689.6 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -27.10 | 219.26 | 9.78 | 200.00 | 0.4439 | 661.0 | 523.3 | |
| 0.00 | 1.17 | 0.00 | 0.61 | -19.61 | 217.91 | 8.43 | 205.22 | 0.3255 | -836.0 | -658.5 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -20.78 | 217.88 | 8.39 | 203.57 | 0.3427 | -661.0 | -598.4 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -21.33 | 217.78 | 8.29 | 202.66 | 0.3501 | -679.0 | -592.9 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -21.94 | 217.45 | 7.96 | 201.17 | 0.3573 | -789.0 | -664.2 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -19.61 | 217.20 | 7.71 | 203.33 | 0.3206 | -871.0 | -750.2 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -19.83 | 217.21 | 7.72 | 203.07 | 0.3240 | -790.0 | -648.1 | |
| 0.00 | 1.44 | 0.00 | 0.75 | -20.95 | 215.76 | 6.28 | 197.94 | 0.3329 | -807.0 | -596.4 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -21.11 | 215.64 | 6.15 | 197.45 | 0.3348 | -784.0 | -703.8 | |
| 0.00 | 1.53 | 0.00 | 0.82 | -23.89 | 215.59 | 6.11 | 194.98 | 0.3779 | -567.0 | -505.5 | |
| 0.00 | 2.07 | 0.00 | 1.08 | -20.89 | 215.11 | 5.62 | 196.23 | 0.3287 | -552.0 | -531.8 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -22.14 | 214.96 | 5.47 | 194.77 | 0.3478 | -683.0 | -501.6 | |
| 0.00 | 1.17 | 0.00 | 0.60 | -16.92 | 210.63 | 1.15 | 184.42 | 0.2493 | -712.0 | -479.1 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -19.31 | 209.94 | 0.45 | 181.48 | 0.2891 | -785.0 | -658.6 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -28.83 | 207.68 | -1.81 | 176.42 | 0.4449 | -620.0 | -490.4 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -28.14 | 204.14 | -5.34 | 169.23 | 0.4411 | -677.0 | -509.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
