SDO HMI 2014-05-16 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.58 | 416.13 | 60.96 | 244.70 | 10.27 | 178.89 | -30.05 | 66.25 | 0.5399 | -2.8 | -29.5 | |
|
previous
or next observation for the same group /

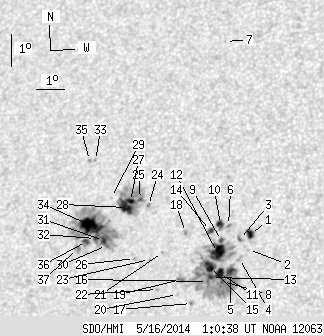

back to the solar disc SDO HMI 2014-05-16 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.76 | 6.92 | 2.72 | 3.95 | 10.42 | 182.01 | -26.92 | 63.70 | 0.4988 | -1003.9 | -733.6 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 9.95 | 181.98 | -26.95 | 64.58 | 0.4963 | -645.0 | -589.6 | |
| 0.72 | 2.42 | 0.41 | 1.39 | 10.27 | 181.64 | -27.29 | 64.26 | 0.5029 | -952.2 | -784.1 | |
| 0.00 | 2.60 | 0.00 | 1.49 | 9.68 | 181.70 | -27.24 | 65.31 | 0.4986 | -785.0 | -610.5 | |
| 6.11 | 181.15 | 3.49 | 104.01 | 9.25 | 181.42 | -27.51 | 66.31 | 0.4999 | -1156.4 | -455.8 | |
| 0.00 | 1.89 | 0.00 | 1.09 | 10.72 | 181.22 | -27.72 | 63.79 | 0.5114 | -763.0 | -616.9 | |
| 0.00 | 0.27 | 0.00 | 0.16 | 16.54 | 180.36 | -28.58 | 54.89 | 0.5626 | 532.0 | 534.3 | |
| 1.08 | -5.00 | 0.62 | -5.00 | 8.98 | 181.17 | -27.77 | 67.01 | 0.5019 | -1038.8 | 999999 | |
| 1.35 | -5.00 | 0.78 | -5.00 | 10.26 | 181.02 | -27.92 | 64.78 | 0.5113 | -834.6 | 999999 | |
| 3.68 | 6.56 | 2.13 | 3.79 | 10.75 | 180.93 | -28.00 | 63.95 | 0.5154 | -767.8 | -528.3 | |
| 6.65 | -5.00 | 3.81 | -5.00 | 9.23 | 181.04 | -27.89 | 66.63 | 0.5050 | -1116.9 | 999999 | |
| 15.54 | -5.00 | 8.94 | -5.00 | 9.88 | 180.91 | -28.02 | 65.53 | 0.5105 | -1117.2 | 999999 | |
| 1.98 | -5.00 | 1.14 | -5.00 | 9.11 | 180.77 | -28.16 | 67.04 | 0.5081 | -898.6 | 999999 | |
| 2.25 | 4.85 | 1.30 | 2.81 | 10.58 | 180.60 | -28.33 | 64.52 | 0.5188 | -717.4 | -385.3 | |
| 7.99 | -5.00 | 4.60 | -5.00 | 9.46 | 180.67 | -28.26 | 66.48 | 0.5114 | -970.3 | 999999 | |
| 1.08 | -5.00 | 0.62 | -5.00 | 8.99 | 180.64 | -28.29 | 67.35 | 0.5093 | -811.3 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 8.33 | 180.14 | -28.80 | 68.92 | 0.5128 | -761.0 | -577.7 | |
| 0.00 | 2.16 | 0.00 | 1.26 | 10.53 | 179.73 | -29.21 | 65.24 | 0.5304 | -625.0 | -428.7 | |
| 0.00 | 4.58 | 0.00 | 2.66 | 9.08 | 179.69 | -29.25 | 67.85 | 0.5229 | 246.0 | 199.8 | |
| 0.00 | 1.17 | 0.00 | 0.68 | 8.62 | 179.62 | -29.31 | 68.73 | 0.5215 | -384.0 | -230.8 | |
| 0.00 | 0.81 | 0.00 | 0.47 | 9.93 | 178.97 | -29.96 | 66.82 | 0.5373 | -622.0 | -548.6 | |
| 0.00 | 1.26 | 0.00 | 0.73 | 8.79 | 178.90 | -30.03 | 68.87 | 0.5323 | 811.0 | 657.1 | |
| 0.00 | 0.99 | 0.00 | 0.58 | 9.72 | 178.53 | -30.41 | 67.46 | 0.5422 | 674.0 | 507.4 | |
| 0.00 | 1.80 | 0.00 | 1.07 | 11.41 | 178.31 | -30.63 | 64.74 | 0.5543 | 846.0 | 731.3 | |
| 1.17 | 57.03 | 0.70 | 34.15 | 11.60 | 178.00 | -30.94 | 64.63 | 0.5595 | 881.4 | 418.1 | |
| 0.00 | 1.44 | 0.00 | 0.85 | 9.77 | 177.99 | -30.95 | 67.73 | 0.5498 | 764.0 | 631.8 | |
| 3.68 | -25.00 | 2.21 | -25.00 | 11.55 | 177.64 | -31.29 | 64.96 | 0.5638 | 990.7 | 999999 | |
| 11.68 | -25.00 | 7.00 | -25.00 | 11.37 | 177.52 | -31.42 | 65.35 | 0.5644 | 967.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 11.69 | 176.93 | -32.00 | 65.19 | 0.5739 | 463.0 | 323.9 | |
| 1.17 | 127.80 | 0.70 | 77.30 | 10.20 | 176.93 | -32.01 | 67.65 | 0.5661 | 921.0 | 390.7 | |
| 2.69 | -30.00 | 1.62 | -30.00 | 10.36 | 176.80 | -32.13 | 67.47 | 0.5686 | 1085.2 | 999999 | |
| 1.71 | -30.00 | 1.03 | -30.00 | 10.43 | 176.50 | -32.43 | 67.53 | 0.5730 | 828.1 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.50 | 12.87 | 176.18 | -32.75 | 63.81 | 0.5900 | 426.0 | 471.4 | |
| 25.60 | -30.00 | 15.51 | -30.00 | 10.84 | 176.27 | -32.67 | 67.00 | 0.5781 | 1043.6 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.94 | 12.88 | 175.96 | -32.98 | 63.94 | 0.5929 | 685.0 | 618.1 | |
| 2.69 | -30.00 | 1.63 | -30.00 | 10.34 | 176.18 | -32.75 | 67.86 | 0.5768 | 896.0 | 999999 | |
| 0.00 | 4.67 | 0.00 | 2.83 | 10.13 | 175.88 | -33.06 | 68.37 | 0.5798 | 641.0 | 480.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
