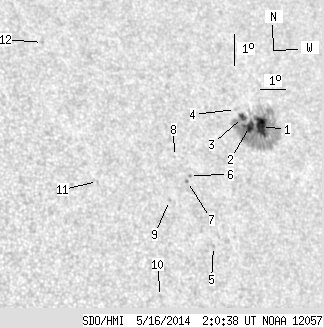

SDO HMI 2014-05-16 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.32 | 145.35 | 17.50 | 100.10 | 15.35 | 248.95 | 40.57 | 295.37 | 0.6962 | -395.1 | -271.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.64 | 136.26 | 10.15 | 94.23 | 15.43 | 249.42 | 41.04 | 295.24 | 0.7020 | -758.5 | -321.3 | |
| 7.63 | -1.00 | 5.25 | -1.00 | 15.41 | 248.92 | 40.53 | 295.47 | 0.6963 | -949.5 | 999999 | |
| 3.05 | -1.00 | 2.10 | -1.00 | 15.69 | 248.70 | 40.31 | 295.95 | 0.6950 | -837.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.74 | 15.94 | 248.47 | 40.08 | 296.40 | 0.6935 | -530.0 | -426.6 | |
| 0.00 | 1.08 | 0.00 | 0.70 | 11.57 | 246.69 | 38.31 | 291.14 | 0.6534 | 466.0 | 496.8 | |
| 0.00 | 1.08 | 0.00 | 0.71 | 13.78 | 246.14 | 37.75 | 294.62 | 0.6564 | 547.0 | 451.8 | |
| 0.00 | 1.17 | 0.00 | 0.76 | 13.59 | 246.02 | 37.64 | 294.40 | 0.6541 | 740.0 | 623.8 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 14.37 | 245.66 | 37.28 | 295.71 | 0.6534 | 554.0 | 436.3 | |
| 0.00 | 1.17 | 0.00 | 0.75 | 12.97 | 245.20 | 36.82 | 293.93 | 0.6412 | 569.0 | 522.6 | |
| 0.00 | 1.17 | 0.00 | 0.73 | 9.95 | 244.40 | 36.01 | 289.79 | 0.6177 | 567.0 | 504.0 | |
| 0.00 | 0.99 | 0.00 | 0.62 | 13.50 | 242.53 | 34.15 | 296.26 | 0.6109 | 507.0 | 433.3 | |
| 0.00 | 1.08 | 0.00 | 0.68 | 17.90 | 241.28 | 32.90 | 303.56 | 0.6225 | 551.0 | 453.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
