SDO HMI 2014-05-16 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.59 | 305.59 | 31.16 | 168.75 | -23.87 | 192.59 | -15.79 | 145.78 | 0.4435 | 604.3 | 357.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

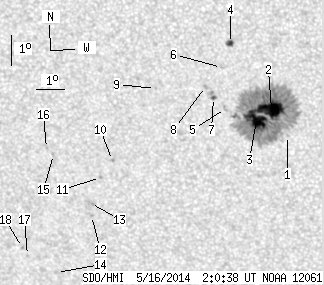

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.45 | -24.50 | 193.69 | -14.69 | 148.38 | 0.4419 | 157.0 | 154.1 | |
| 28.92 | 277.91 | 15.90 | 153.04 | -23.65 | 193.25 | -15.14 | 146.47 | 0.4349 | 1295.9 | 424.7 | |
| 24.43 | -2.00 | 13.49 | -2.00 | -23.96 | 192.69 | -15.69 | 145.99 | 0.4437 | 1026.8 | 999999 | |
| 2.43 | 4.22 | 1.32 | 2.30 | -21.50 | 192.10 | -16.28 | 141.34 | 0.4193 | -981.9 | -718.8 | |
| 0.00 | 2.60 | 0.00 | 1.44 | -23.59 | 191.67 | -16.71 | 143.83 | 0.4484 | 198.0 | 364.5 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -22.27 | 191.70 | -16.68 | 141.90 | 0.4323 | -517.0 | -457.5 | |
| 0.81 | 3.41 | 0.45 | 1.89 | -23.23 | 191.30 | -17.08 | 142.73 | 0.4475 | 904.2 | 857.1 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -22.87 | 191.08 | -17.31 | 141.84 | 0.4455 | 724.0 | 569.5 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -22.91 | 189.34 | -19.05 | 139.33 | 0.4631 | -705.0 | -518.0 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -25.23 | 187.44 | -20.95 | 140.18 | 0.5071 | -889.0 | -703.2 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -25.78 | 186.90 | -21.48 | 140.28 | 0.5181 | -745.0 | -517.3 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -27.04 | 186.32 | -22.06 | 141.26 | 0.5368 | -809.0 | -668.6 | |
| 0.00 | 3.23 | 0.00 | 1.89 | -26.64 | 186.37 | -22.02 | 140.79 | 0.5321 | -747.0 | -638.3 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -28.93 | 184.59 | -23.80 | 141.70 | 0.5720 | -124.0 | -202.8 | |
| 0.00 | 1.80 | 0.00 | 1.04 | -25.00 | 185.35 | -23.03 | 137.33 | 0.5253 | -780.0 | -662.3 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -24.80 | 185.13 | -23.25 | 136.80 | 0.5255 | -795.0 | -625.0 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -28.33 | 183.63 | -24.75 | 139.94 | 0.5748 | -748.0 | -656.7 | |
| 0.00 | 1.44 | 0.00 | 0.87 | -28.06 | 183.51 | -24.87 | 139.46 | 0.5732 | -796.0 | -600.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
