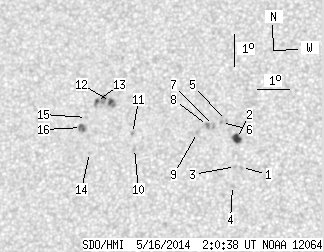

SDO HMI 2014-05-16 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.16 | 46.47 | 5.26 | 24.04 | 8.53 | 195.59 | -12.79 | 48.51 | 0.2925 | -407.2 | 46.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 02:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.73 | 7.22 | 198.28 | -10.10 | 45.75 | 0.2439 | -957.0 | -680.1 | |
| 4.94 | 6.92 | 2.53 | 3.54 | 8.12 | 198.11 | -10.27 | 43.70 | 0.2567 | -1149.4 | -784.3 | |
| 0.00 | 1.44 | 0.00 | 0.73 | 7.26 | 198.10 | -10.29 | 46.18 | 0.2466 | -725.0 | -507.3 | |
| 0.00 | 1.80 | 0.00 | 0.92 | 6.67 | 198.02 | -10.37 | 48.17 | 0.2409 | -808.0 | -611.0 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 8.68 | 197.78 | -10.60 | 43.10 | 0.2673 | -886.0 | -699.7 | |
| 0.00 | 1.35 | 0.00 | 0.69 | 8.62 | 197.63 | -10.76 | 43.67 | 0.2684 | -906.0 | -746.5 | |
| 0.00 | 2.16 | 0.00 | 1.11 | 8.53 | 197.38 | -11.00 | 44.55 | 0.2702 | -1063.0 | -766.0 | |
| 0.00 | 2.87 | 0.00 | 1.48 | 8.53 | 197.19 | -11.19 | 45.03 | 0.2725 | -1077.0 | -807.2 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 8.32 | 196.89 | -11.50 | 46.37 | 0.2737 | -870.0 | -567.4 | |
| 0.00 | 2.16 | 0.00 | 1.12 | 7.84 | 194.93 | -13.46 | 52.08 | 0.2935 | -407.0 | -314.9 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 8.31 | 194.85 | -13.54 | 51.00 | 0.2993 | -918.0 | -764.4 | |
| 1.89 | 15.27 | 0.99 | 7.98 | 9.31 | 194.12 | -14.27 | 49.95 | 0.3191 | 1127.8 | 828.4 | |
| 1.17 | -12.00 | 0.61 | -12.00 | 9.31 | 193.67 | -14.71 | 50.79 | 0.3249 | 918.5 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 7.74 | 193.51 | -14.87 | 55.09 | 0.3115 | 833.0 | 612.0 | |
| 0.00 | 1.17 | 0.00 | 0.61 | 8.82 | 193.37 | -15.01 | 52.55 | 0.3238 | 764.0 | 563.1 | |
| 2.16 | 5.30 | 1.13 | 2.77 | 8.51 | 193.23 | -15.16 | 53.59 | 0.3227 | 1082.0 | 884.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
