SDO HMI 2014-05-16 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.98 | 145.73 | 16.88 | 102.22 | 15.38 | 249.08 | 41.80 | 294.80 | 0.7102 | -464.1 | -282.0 | |
|
previous
or next observation for the same group /

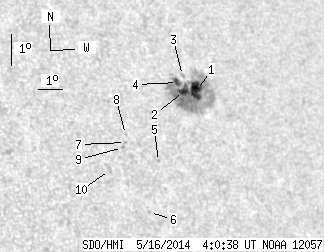

back to the solar disc SDO HMI 2014-05-16 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.82 | 136.55 | 10.47 | 96.07 | 15.48 | 249.48 | 42.19 | 294.75 | 0.7151 | -739.0 | -326.8 | |
| 6.02 | -1.00 | 4.21 | -1.00 | 15.43 | 248.91 | 41.63 | 294.95 | 0.7086 | -980.5 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.14 | 15.94 | 249.00 | 41.72 | 295.59 | 0.7117 | -538.0 | -418.3 | |
| 3.14 | -1.00 | 2.20 | -1.00 | 15.71 | 248.73 | 41.45 | 295.41 | 0.7077 | -857.7 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.73 | 13.17 | 247.37 | 40.09 | 292.59 | 0.6814 | 619.0 | 515.1 | |
| 0.00 | 0.99 | 0.00 | 0.66 | 11.55 | 246.71 | 39.42 | 290.60 | 0.6669 | 616.0 | 542.6 | |
| 0.00 | 0.72 | 0.00 | 0.48 | 13.73 | 246.14 | 38.86 | 293.96 | 0.6693 | 599.0 | 513.0 | |
| 0.00 | 1.08 | 0.00 | 0.72 | 13.99 | 246.20 | 38.91 | 294.29 | 0.6710 | 294.0 | 311.3 | |
| 0.00 | 1.17 | 0.00 | 0.77 | 13.57 | 245.99 | 38.71 | 293.81 | 0.6668 | 559.0 | 531.7 | |
| 0.00 | 2.52 | 0.00 | 1.65 | 12.83 | 245.33 | 38.05 | 293.08 | 0.6555 | 520.0 | 417.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
