SDO HMI 2014-05-16 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.34 | 43.67 | 5.32 | 22.52 | 8.60 | 195.77 | -11.51 | 45.31 | 0.2776 | -247.0 | -70.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 04:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

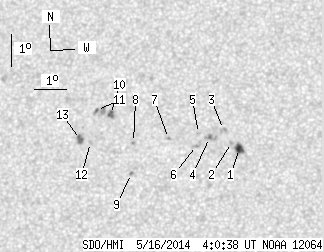

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.94 | 6.92 | 2.52 | 3.53 | 8.16 | 198.22 | -9.07 | 40.09 | 0.2434 | -1156.7 | -829.3 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 8.35 | 197.96 | -9.32 | 40.36 | 0.2485 | -805.0 | -670.3 | |
| 0.00 | 3.05 | 0.00 | 1.57 | 8.75 | 197.70 | -9.58 | 40.08 | 0.2566 | -690.0 | -691.0 | |
| 0.45 | 4.85 | 0.23 | 2.49 | 8.51 | 197.28 | -10.01 | 41.95 | 0.2582 | -1000.0 | -816.5 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 8.63 | 196.93 | -10.35 | 42.59 | 0.2637 | -686.0 | -509.7 | |
| 0.00 | 4.13 | 0.00 | 2.12 | 8.26 | 196.88 | -10.41 | 43.71 | 0.2598 | -911.0 | -682.3 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 8.49 | 196.00 | -11.29 | 45.43 | 0.2729 | -974.0 | -788.9 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 8.38 | 194.90 | -12.38 | 48.35 | 0.2851 | -933.0 | -733.5 | |
| 0.00 | 1.44 | 0.00 | 0.74 | 7.42 | 194.87 | -12.41 | 51.07 | 0.2752 | 944.0 | 766.0 | |
| 1.98 | 3.95 | 1.03 | 2.05 | 9.25 | 194.15 | -13.13 | 47.78 | 0.3041 | 1192.3 | 927.0 | |
| 0.54 | 6.74 | 0.28 | 3.51 | 9.38 | 193.70 | -13.58 | 48.41 | 0.3111 | 796.3 | 799.7 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 8.39 | 193.55 | -13.73 | 51.23 | 0.3025 | 849.0 | 732.4 | |
| 2.43 | 5.21 | 1.26 | 2.71 | 8.49 | 193.23 | -14.05 | 51.61 | 0.3077 | 1047.2 | 804.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
