SDO HMI 2014-05-16 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.95 | 312.07 | 27.27 | 170.81 | -23.86 | 192.48 | -13.71 | 149.38 | 0.4262 | 618.2 | 342.5 | |
|
previous
or next observation for the same group /

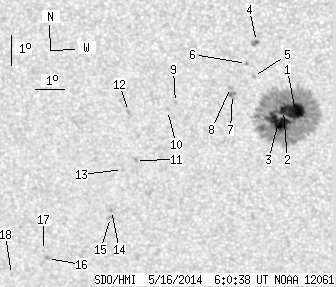

back to the solar disc SDO HMI 2014-05-16 06:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.56 | 283.65 | 11.75 | 154.89 | -23.67 | 193.19 | -13.00 | 150.33 | 0.4178 | 1366.2 | 418.0 | |
| 6.11 | -1.00 | 3.33 | -1.00 | -23.63 | 192.79 | -13.40 | 149.54 | 0.4206 | 1256.3 | 999999 | |
| 21.74 | -1.00 | 11.90 | -1.00 | -23.99 | 192.58 | -13.61 | 149.63 | 0.4270 | 1065.1 | 999999 | |
| 0.54 | 4.40 | 0.29 | 2.38 | -21.40 | 192.10 | -14.08 | 145.08 | 0.3974 | -1017.8 | -792.7 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -22.52 | 191.89 | -14.30 | 146.37 | 0.4137 | 799.0 | 620.7 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -22.10 | 191.69 | -14.49 | 145.40 | 0.4101 | -654.0 | -515.1 | |
| 0.00 | 4.31 | 0.00 | 2.36 | -23.10 | 191.11 | -15.08 | 145.83 | 0.4278 | 1030.0 | 858.6 | |
| 0.00 | 1.98 | 0.00 | 1.08 | -22.87 | 191.07 | -15.12 | 145.43 | 0.4254 | 733.0 | 581.4 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -23.33 | 189.12 | -17.07 | 142.93 | 0.4489 | -862.0 | -662.8 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -23.59 | 188.81 | -17.38 | 142.83 | 0.4549 | -523.0 | -533.3 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -25.20 | 187.45 | -18.74 | 143.12 | 0.4863 | -920.0 | -778.4 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -23.60 | 187.45 | -18.74 | 140.84 | 0.4681 | -752.0 | -692.4 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -25.49 | 186.94 | -19.25 | 142.81 | 0.4943 | -749.0 | -666.0 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -26.84 | 186.30 | -19.88 | 143.75 | 0.5153 | -832.0 | -687.9 | |
| 0.00 | 2.79 | 0.00 | 1.61 | -27.07 | 186.22 | -19.96 | 143.95 | 0.5186 | -929.0 | -677.6 | |
| 0.00 | 2.52 | 0.00 | 1.50 | -28.41 | 183.63 | -22.56 | 142.48 | 0.5561 | -794.0 | -653.7 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -28.14 | 183.54 | -22.64 | 142.03 | 0.5540 | -494.0 | -493.5 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -28.93 | 182.15 | -24.04 | 141.48 | 0.5745 | -518.0 | -455.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
