SDO HMI 2014-05-16 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.89 | 362.47 | 53.83 | 205.71 | 10.44 | 178.85 | -26.24 | 63.12 | 0.4892 | -66.0 | -68.9 | |
|
previous
or next observation for the same group /

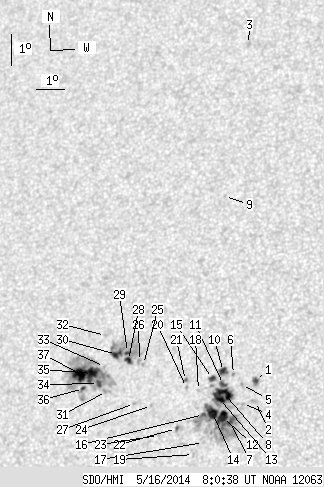

back to the solar disc SDO HMI 2014-05-16 08:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.80 | 5.03 | 0.99 | 2.78 | 10.46 | 182.04 | -23.06 | 60.13 | 0.4460 | -1110.5 | -856.2 | |
| 0.00 | 3.14 | 0.00 | 1.73 | 9.80 | 182.08 | -23.01 | 61.39 | 0.4405 | -820.0 | -525.4 | |
| 0.00 | 3.14 | 0.00 | 1.88 | 21.23 | 180.44 | -24.65 | 44.25 | 0.5593 | -95.0 | -83.7 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 9.75 | 181.65 | -23.44 | 61.93 | 0.4461 | -856.0 | -575.4 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 10.34 | 181.57 | -23.52 | 60.83 | 0.4514 | -846.0 | -629.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 10.66 | 181.28 | -23.81 | 60.51 | 0.4577 | -717.0 | -587.6 | |
| 2.70 | 162.54 | 1.49 | 90.32 | 9.17 | 181.29 | -23.80 | 63.46 | 0.4472 | -1164.8 | -523.5 | |
| 11.59 | -7.00 | 6.45 | -7.00 | 10.07 | 181.02 | -24.07 | 61.91 | 0.4571 | -1127.1 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 16.29 | 180.37 | -24.73 | 51.56 | 0.5146 | 602.0 | 420.3 | |
| 3.68 | 5.93 | 2.06 | 3.31 | 10.76 | 180.93 | -24.16 | 60.66 | 0.4631 | -805.0 | -569.4 | |
| 2.34 | -7.00 | 1.30 | -7.00 | 10.35 | 180.97 | -24.13 | 61.41 | 0.4598 | -803.7 | 999999 | |
| 9.61 | -7.00 | 5.33 | -7.00 | 9.33 | 181.01 | -24.08 | 63.40 | 0.4522 | -1130.0 | 999999 | |
| 7.01 | -7.00 | 3.90 | -7.00 | 9.92 | 180.87 | -24.23 | 62.36 | 0.4582 | -1088.1 | 999999 | |
| 8.98 | -7.00 | 5.00 | -7.00 | 9.49 | 180.66 | -24.43 | 63.40 | 0.4581 | -975.7 | 999999 | |
| 2.34 | -7.00 | 1.31 | -7.00 | 10.55 | 180.58 | -24.51 | 61.41 | 0.4664 | -652.4 | 999999 | |
| 1.08 | -7.00 | 0.60 | -7.00 | 9.43 | 180.36 | -24.73 | 63.78 | 0.4619 | -661.8 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 8.57 | 180.42 | -24.67 | 65.46 | 0.4556 | -599.0 | -442.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 10.18 | 180.13 | -24.96 | 62.53 | 0.4700 | -401.0 | -334.6 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 8.20 | 180.11 | -24.98 | 66.46 | 0.4578 | -441.0 | -413.8 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 10.28 | 179.72 | -25.38 | 62.71 | 0.4764 | -685.0 | -501.8 | |
| 0.45 | 2.07 | 0.25 | 1.16 | 10.50 | 179.66 | -25.43 | 62.34 | 0.4786 | -570.4 | -403.4 | |
| 0.54 | 1.44 | 0.30 | 0.81 | 9.02 | 179.48 | -25.62 | 65.36 | 0.4717 | 436.0 | 278.4 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 8.81 | 178.88 | -26.22 | 66.24 | 0.4789 | 715.0 | 531.1 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 9.75 | 178.56 | -26.53 | 64.70 | 0.4889 | -352.0 | -273.9 | |
| 0.00 | 1.17 | 0.00 | 0.67 | 11.03 | 178.17 | -26.92 | 62.66 | 0.5023 | 793.0 | 757.1 | |
| 0.00 | 1.80 | 0.00 | 1.03 | 11.13 | 178.02 | -27.07 | 62.61 | 0.5050 | 814.0 | 810.4 | |
| 0.00 | 1.26 | 0.00 | 0.72 | 9.82 | 177.97 | -27.12 | 65.04 | 0.4975 | 771.0 | 645.8 | |
| 3.23 | 47.71 | 1.86 | 27.51 | 11.17 | 177.63 | -27.46 | 62.86 | 0.5104 | 1020.1 | 391.7 | |
| 1.89 | -28.00 | 1.09 | -28.00 | 11.42 | 177.57 | -27.52 | 62.46 | 0.5128 | 990.1 | 999999 | |
| 5.30 | -28.00 | 3.06 | -28.00 | 11.37 | 177.19 | -27.90 | 62.87 | 0.5175 | 941.1 | 999999 | |
| 0.00 | 3.14 | 0.00 | 1.81 | 10.22 | 176.96 | -28.13 | 65.09 | 0.5137 | 462.0 | 507.7 | |
| 0.00 | 1.80 | 0.00 | 1.05 | 11.97 | 176.74 | -28.35 | 62.18 | 0.5274 | 557.0 | 381.5 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 11.00 | 176.81 | -28.28 | 63.81 | 0.5204 | 790.0 | 634.6 | |
| 2.61 | 101.53 | 1.51 | 59.09 | 10.47 | 176.65 | -28.44 | 64.86 | 0.5193 | 1032.4 | 349.0 | |
| 12.13 | -34.00 | 7.05 | -34.00 | 10.79 | 176.41 | -28.68 | 64.48 | 0.5245 | 1066.6 | 999999 | |
| 1.08 | 8.98 | 0.63 | 5.22 | 10.33 | 176.14 | -28.95 | 65.49 | 0.5255 | 842.3 | 610.4 | |
| 16.53 | -34.00 | 9.65 | -34.00 | 10.77 | 175.99 | -29.10 | 64.83 | 0.5300 | 965.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
