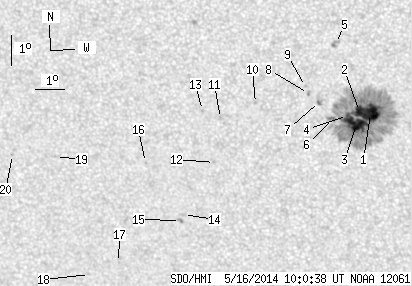

SDO HMI 2014-05-16 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.20 | 317.88 | 27.75 | 172.57 | -23.86 | 192.35 | -11.64 | 153.27 | 0.4108 | 640.7 | 343.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.76 | 293.60 | 10.69 | 159.11 | -23.70 | 193.03 | -10.96 | 154.32 | 0.4035 | 1363.5 | 406.7 | |
| 8.53 | -1.00 | 4.62 | -1.00 | -23.63 | 192.67 | -11.33 | 153.51 | 0.4051 | 1256.1 | 999999 | |
| 19.94 | -1.00 | 10.83 | -1.00 | -24.02 | 192.53 | -11.46 | 153.71 | 0.4115 | 1065.7 | 999999 | |
| 2.16 | -1.00 | 1.17 | -1.00 | -23.76 | 192.25 | -11.74 | 152.84 | 0.4099 | 916.7 | 999999 | |
| 0.00 | 4.31 | 0.00 | 2.31 | -21.43 | 192.06 | -11.94 | 149.35 | 0.3794 | -918.0 | -734.6 | |
| 0.81 | -1.00 | 0.44 | -1.00 | -23.85 | 191.77 | -12.23 | 152.03 | 0.4147 | 778.7 | 999999 | |
| 0.00 | 3.77 | 0.00 | 2.05 | -23.30 | 191.35 | -12.65 | 150.52 | 0.4104 | 864.0 | 707.6 | |
| 0.00 | 1.71 | 0.00 | 0.93 | -23.03 | 191.00 | -12.99 | 149.52 | 0.4096 | 821.0 | 744.4 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -22.81 | 190.93 | -13.07 | 149.06 | 0.4072 | 745.0 | 519.5 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -23.34 | 189.17 | -14.83 | 146.63 | 0.4290 | -854.0 | -657.5 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -23.81 | 187.91 | -16.09 | 145.20 | 0.4460 | -446.0 | -375.3 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -25.25 | 187.51 | -16.49 | 146.51 | 0.4671 | -609.0 | -526.7 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -23.54 | 187.32 | -16.67 | 143.88 | 0.4481 | -756.0 | -648.7 | |
| 0.00 | 2.34 | 0.00 | 1.33 | -26.95 | 186.15 | -17.85 | 146.68 | 0.4993 | -774.0 | -612.5 | |
| 0.00 | 2.16 | 0.00 | 1.23 | -27.15 | 186.01 | -17.99 | 146.72 | 0.5028 | -902.0 | -762.9 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -25.21 | 185.08 | -18.91 | 142.92 | 0.4883 | -751.0 | -605.5 | |
| 0.00 | 0.45 | 0.00 | 0.26 | -28.52 | 183.50 | -20.50 | 145.10 | 0.5397 | -560.0 | -482.0 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -28.91 | 182.34 | -21.65 | 144.16 | 0.5538 | -668.0 | -477.6 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -24.97 | 181.91 | -22.09 | 138.46 | 0.5161 | -717.0 | -561.7 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -24.87 | 180.37 | -23.63 | 136.54 | 0.5307 | -557.0 | -581.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
