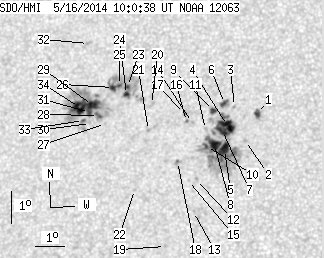

SDO HMI 2014-05-16 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.61 | 327.06 | 49.26 | 183.93 | 10.33 | 178.76 | -25.24 | 62.43 | 0.4746 | -50.2 | -71.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.87 | 5.12 | 1.58 | 2.81 | 10.44 | 182.05 | -21.95 | 58.97 | 0.4308 | -1051.2 | -778.8 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 9.61 | 181.71 | -22.29 | 61.05 | 0.4291 | -787.0 | -548.3 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 10.67 | 181.26 | -22.73 | 59.37 | 0.4432 | -750.0 | -525.5 | |
| 12.76 | 137.91 | 7.04 | 75.96 | 10.09 | 181.07 | -22.92 | 60.74 | 0.4414 | -1129.1 | -596.4 | |
| 8.98 | -4.00 | 4.94 | -4.00 | 9.34 | 181.03 | -22.97 | 62.31 | 0.4367 | -1179.7 | 999999 | |
| 2.52 | 5.75 | 1.39 | 3.18 | 10.77 | 180.92 | -23.08 | 59.54 | 0.4485 | -802.3 | -658.4 | |
| 7.37 | -4.00 | 4.07 | -4.00 | 9.93 | 180.92 | -23.08 | 61.21 | 0.4424 | -1121.3 | 999999 | |
| 8.62 | -4.00 | 4.76 | -4.00 | 9.50 | 180.68 | -23.32 | 62.32 | 0.4426 | -986.8 | 999999 | |
| 2.79 | 4.85 | 1.54 | 2.69 | 10.56 | 180.57 | -23.43 | 60.32 | 0.4517 | -589.2 | -267.5 | |
| 1.62 | -4.00 | 0.89 | -4.00 | 9.45 | 180.42 | -23.58 | 62.70 | 0.4459 | -566.7 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 9.98 | 180.34 | -23.65 | 61.71 | 0.4506 | -540.0 | -368.0 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 8.43 | 180.15 | -23.85 | 65.03 | 0.4430 | -653.0 | -542.1 | |
| 0.00 | 0.72 | 0.00 | 0.40 | 7.45 | 180.11 | -23.89 | 67.13 | 0.4376 | 639.0 | 575.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 10.20 | 179.89 | -24.11 | 61.70 | 0.4584 | -716.0 | -500.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 8.41 | 179.88 | -24.11 | 65.32 | 0.4466 | -546.0 | -404.4 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 10.24 | 179.68 | -24.31 | 61.83 | 0.4615 | -651.0 | -519.7 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 10.49 | 179.60 | -24.40 | 61.43 | 0.4644 | -736.0 | -626.7 | |
| 0.00 | 1.98 | 0.00 | 1.10 | 9.00 | 179.47 | -24.52 | 64.47 | 0.4562 | 564.0 | 405.1 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 6.39 | 179.23 | -24.77 | 70.09 | 0.4447 | 777.0 | 578.1 | |
| 0.00 | 3.14 | 0.00 | 1.78 | 10.79 | 178.44 | -25.55 | 61.93 | 0.4821 | 388.0 | 337.8 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 9.98 | 178.41 | -25.58 | 63.48 | 0.4772 | 904.0 | 681.1 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 8.17 | 178.07 | -25.92 | 67.30 | 0.4710 | 636.0 | 415.4 | |
| 1.44 | 49.23 | 0.82 | 28.11 | 11.37 | 177.56 | -26.43 | 61.64 | 0.4979 | 1009.1 | 458.7 | |
| 2.79 | -23.00 | 1.59 | -23.00 | 11.12 | 177.55 | -26.44 | 62.11 | 0.4964 | 1058.0 | 999999 | |
| 1.26 | -23.00 | 0.72 | -23.00 | 11.41 | 177.28 | -26.71 | 61.82 | 0.5019 | 908.2 | 999999 | |
| 3.50 | -23.00 | 2.01 | -23.00 | 11.35 | 177.08 | -26.92 | 62.10 | 0.5042 | 893.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 10.23 | 176.91 | -27.09 | 64.27 | 0.4994 | 768.0 | 672.0 | |
| 1.98 | 92.63 | 1.13 | 53.40 | 10.49 | 176.64 | -27.35 | 64.01 | 0.5046 | 1020.3 | 316.9 | |
| 10.15 | -28.00 | 5.84 | -28.00 | 10.80 | 176.41 | -27.59 | 63.63 | 0.5098 | 1081.8 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.41 | 10.24 | 176.39 | -27.61 | 64.66 | 0.5066 | 211.0 | 265.6 | |
| 2.61 | -28.00 | 1.50 | -28.00 | 10.59 | 176.32 | -27.68 | 64.09 | 0.5096 | 961.7 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.41 | 12.75 | 176.05 | -27.94 | 60.52 | 0.5271 | 561.0 | 456.0 | |
| 0.63 | 7.64 | 0.36 | 4.39 | 10.34 | 176.14 | -27.86 | 64.67 | 0.5106 | 952.3 | 624.6 | |
| 15.72 | -28.00 | 9.08 | -28.00 | 10.75 | 175.96 | -28.04 | 64.08 | 0.5155 | 948.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
