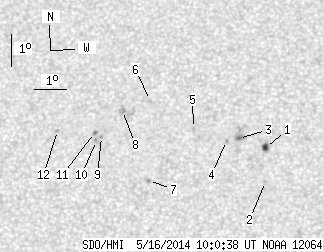

SDO HMI 2014-05-16 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.95 | 31.55 | 2.00 | 16.09 | 8.56 | 195.86 | -8.14 | 35.49 | 0.2398 | 76.9 | 36.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 10:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.87 | 4.40 | 1.46 | 2.23 | 8.17 | 198.42 | -5.58 | 27.43 | 0.2097 | -1125.6 | -888.3 | |
| 0.00 | 1.08 | 0.00 | 0.54 | 7.12 | 198.43 | -5.56 | 29.90 | 0.1939 | -757.0 | -668.8 | |
| 0.72 | 9.07 | 0.36 | 4.61 | 8.45 | 197.59 | -6.41 | 30.16 | 0.2208 | -1168.4 | -721.0 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 8.39 | 197.22 | -6.78 | 31.72 | 0.2232 | -952.0 | -786.9 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 8.77 | 196.19 | -7.81 | 34.49 | 0.2381 | -726.0 | -518.2 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 9.65 | 194.83 | -9.16 | 36.75 | 0.2635 | 776.0 | 547.1 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 7.18 | 194.83 | -9.17 | 43.27 | 0.2317 | 1054.0 | 881.2 | |
| 0.00 | 5.12 | 0.00 | 2.63 | 9.35 | 193.97 | -10.03 | 39.97 | 0.2686 | 914.0 | 723.5 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 8.55 | 193.34 | -10.66 | 43.73 | 0.2658 | 1018.0 | 870.6 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 8.43 | 193.18 | -10.81 | 44.46 | 0.2661 | 907.0 | 801.1 | |
| 0.36 | 1.62 | 0.18 | 0.83 | 8.68 | 193.12 | -10.88 | 43.99 | 0.2699 | 977.2 | 850.9 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 8.75 | 191.96 | -12.04 | 46.68 | 0.2847 | 845.0 | 663.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
