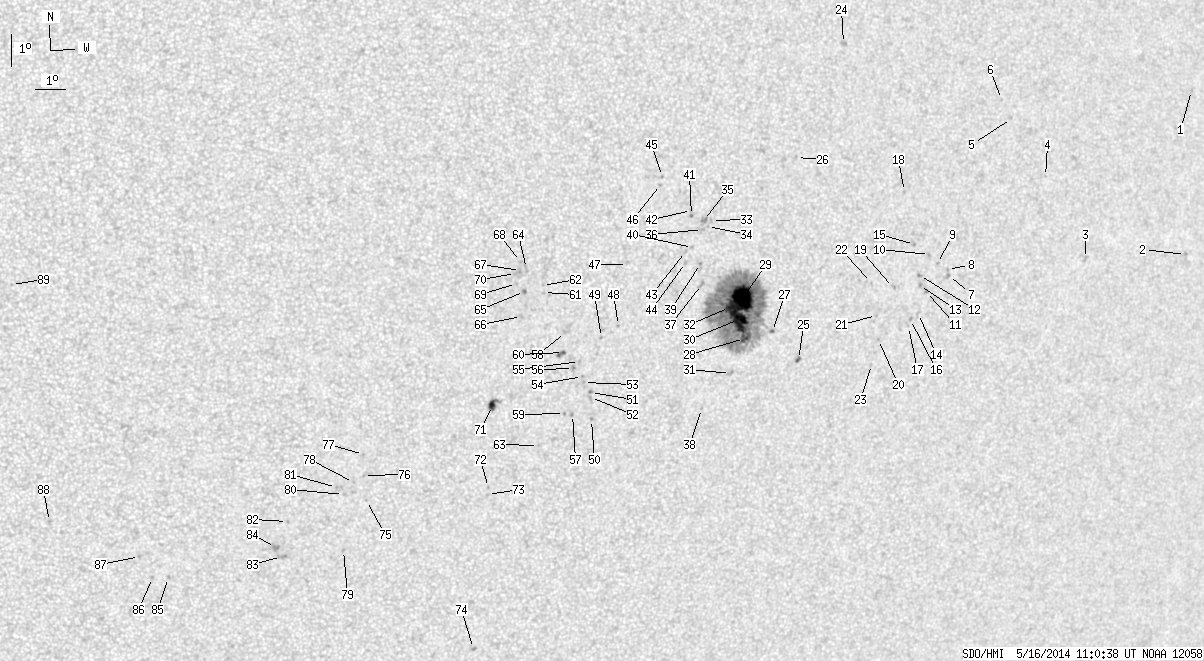

SDO HMI 2014-05-16 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.59 | 511.57 | 44.92 | 288.65 | -14.21 | 229.48 | 26.04 | 243.35 | 0.4786 | 251.3 | 229.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.91 | -6.89 | 246.48 | 43.03 | 262.59 | 0.6854 | 433.0 | 449.5 | |
| 0.00 | 0.99 | 0.00 | 0.68 | -11.90 | 247.00 | 43.55 | 255.46 | 0.6988 | 537.0 | 415.4 | |
| 0.00 | 2.87 | 0.00 | 1.87 | -12.14 | 242.89 | 39.44 | 254.10 | 0.6481 | 625.0 | 466.8 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -9.67 | 240.93 | 37.49 | 257.46 | 0.6168 | 615.0 | 514.1 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -7.93 | 239.43 | 35.98 | 259.99 | 0.5931 | 526.0 | 452.5 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -7.37 | 239.00 | 35.55 | 260.87 | 0.5862 | 534.0 | 518.2 | |
| 0.00 | 2.52 | 0.00 | 1.53 | -12.79 | 237.67 | 34.22 | 251.29 | 0.5812 | 743.0 | 593.9 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -12.61 | 237.61 | 34.16 | 251.57 | 0.5797 | 665.0 | 574.6 | |
| 0.00 | 1.26 | 0.00 | 0.76 | -12.43 | 237.20 | 33.76 | 251.70 | 0.5737 | 734.0 | 595.8 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -12.16 | 236.87 | 33.42 | 252.03 | 0.5682 | 746.0 | 605.1 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -13.30 | 236.92 | 33.48 | 250.11 | 0.5730 | 632.0 | 539.3 | |
| 0.00 | 1.71 | 0.00 | 1.02 | -12.81 | 236.59 | 33.14 | 250.79 | 0.5667 | 903.0 | 725.4 | |
| 0.00 | 1.62 | 0.00 | 0.97 | -13.12 | 236.64 | 33.19 | 250.28 | 0.5684 | 630.0 | 626.9 | |
| 0.00 | 2.87 | 0.00 | 1.73 | -13.99 | 236.73 | 33.28 | 248.86 | 0.5731 | 629.0 | 427.8 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -11.87 | 236.27 | 32.82 | 252.29 | 0.5589 | 876.0 | 760.7 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -14.18 | 236.47 | 33.02 | 248.41 | 0.5703 | 694.0 | 602.3 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -14.40 | 236.43 | 32.98 | 248.02 | 0.5707 | 507.0 | 420.4 | |
| 0.00 | 1.35 | 0.00 | 0.80 | -10.25 | 235.70 | 32.25 | 254.94 | 0.5459 | 706.0 | 465.7 | |
| 0.00 | 1.53 | 0.00 | 0.91 | -13.20 | 235.68 | 32.23 | 249.70 | 0.5558 | 638.0 | 681.4 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -14.82 | 235.38 | 31.93 | 246.76 | 0.5586 | 683.0 | 562.6 | |
| 0.00 | 0.99 | 0.00 | 0.59 | -14.08 | 235.19 | 31.74 | 247.93 | 0.5527 | 846.0 | 661.8 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -13.07 | 234.86 | 31.41 | 249.54 | 0.5439 | 621.0 | 541.9 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -15.60 | 235.25 | 31.80 | 245.36 | 0.5606 | 625.0 | 503.5 | |
| 0.00 | 3.32 | 0.00 | 1.90 | -5.79 | 233.15 | 29.70 | 262.73 | 0.4989 | 355.0 | 334.4 | |
| 0.99 | 2.52 | 0.57 | 1.46 | -15.50 | 232.57 | 29.12 | 243.86 | 0.5244 | -797.0 | -641.5 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -9.29 | 231.75 | 28.31 | 255.25 | 0.4858 | -556.0 | -373.8 | |
| 0.45 | 2.07 | 0.26 | 1.18 | -14.65 | 231.51 | 28.06 | 244.69 | 0.5055 | 672.8 | 465.2 | |
| 5.03 | 370.03 | 2.86 | 209.27 | -14.89 | 230.55 | 27.10 | 243.56 | 0.4937 | 661.4 | 405.0 | |
| 37.01 | -28.00 | 20.92 | -28.00 | -13.65 | 230.32 | 26.88 | 245.76 | 0.4837 | 1354.6 | 999999 | |
| 24.43 | -28.00 | 13.84 | -28.00 | -14.30 | 230.27 | 26.82 | 244.46 | 0.4865 | 1082.8 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.54 | -15.98 | 230.21 | 26.76 | 241.25 | 0.4957 | 376.0 | 328.8 | |
| 6.74 | -28.00 | 3.80 | -28.00 | -13.94 | 229.90 | 26.46 | 244.90 | 0.4794 | 1329.0 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -11.27 | 228.99 | 25.54 | 249.70 | 0.4528 | -562.0 | -497.2 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -11.46 | 228.87 | 25.43 | 249.22 | 0.4519 | -483.0 | -401.5 | |
| 0.00 | 4.94 | 0.00 | 2.74 | -11.28 | 228.72 | 25.27 | 249.51 | 0.4488 | -900.0 | -705.8 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -11.55 | 228.71 | 25.26 | 248.91 | 0.4500 | -630.0 | -525.1 | |
| 0.00 | 3.86 | 0.00 | 2.15 | -13.25 | 228.85 | 25.40 | 245.50 | 0.4608 | 802.0 | 680.2 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -17.09 | 229.35 | 25.90 | 238.49 | 0.4917 | 770.0 | 674.9 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -12.60 | 228.75 | 25.30 | 246.75 | 0.4558 | 852.0 | 742.6 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -12.11 | 228.42 | 24.97 | 247.53 | 0.4486 | -642.0 | -456.3 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -11.13 | 228.30 | 24.85 | 249.54 | 0.4419 | -961.0 | -843.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -10.98 | 228.28 | 24.83 | 249.87 | 0.4410 | -787.0 | -609.4 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -12.24 | 228.20 | 24.75 | 247.10 | 0.4460 | -531.0 | -442.0 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -12.58 | 228.23 | 24.78 | 246.41 | 0.4483 | 707.0 | 492.7 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -9.95 | 227.22 | 23.77 | 251.46 | 0.4205 | -702.0 | -561.8 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -10.20 | 227.17 | 23.72 | 250.86 | 0.4208 | -777.0 | -637.4 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -12.67 | 226.27 | 22.82 | 244.60 | 0.4207 | -431.0 | -373.2 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -14.56 | 226.15 | 22.71 | 240.43 | 0.4313 | -810.0 | -688.8 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -14.94 | 225.62 | 22.17 | 239.09 | 0.4267 | -837.0 | -693.6 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -17.50 | 225.58 | 22.13 | 233.93 | 0.4463 | -763.0 | -554.9 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -16.66 | 225.44 | 21.99 | 235.41 | 0.4376 | -915.0 | -675.9 | |
| 0.00 | 3.05 | 0.00 | 1.68 | -16.81 | 225.46 | 22.01 | 235.13 | 0.4391 | -746.0 | -598.3 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -16.35 | 225.17 | 21.72 | 235.71 | 0.4315 | -822.0 | -676.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.16 | 225.11 | 21.66 | 236.02 | 0.4293 | -788.0 | -660.2 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -15.70 | 224.96 | 21.51 | 236.80 | 0.4236 | -748.0 | -609.6 | |
| 0.00 | 2.34 | 0.00 | 1.28 | -15.92 | 224.78 | 21.33 | 236.14 | 0.4230 | -898.0 | -727.4 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -17.35 | 224.91 | 21.46 | 233.44 | 0.4366 | -887.0 | -745.3 | |
| 0.00 | 2.07 | 0.00 | 1.12 | -14.80 | 224.39 | 20.94 | 238.04 | 0.4090 | -796.0 | -634.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -17.33 | 224.63 | 21.19 | 233.16 | 0.4329 | -829.0 | -761.7 | |
| 0.63 | 4.67 | 0.34 | 2.54 | -15.42 | 224.39 | 20.94 | 236.71 | 0.4138 | -1118.4 | -838.0 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -13.57 | 223.54 | 20.09 | 239.79 | 0.3880 | -586.0 | -535.4 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -13.36 | 223.49 | 20.04 | 240.23 | 0.3857 | -571.0 | -401.8 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -18.34 | 223.87 | 20.42 | 230.26 | 0.4325 | -758.0 | -579.4 | |
| 0.00 | 3.32 | 0.00 | 1.77 | -12.84 | 222.92 | 19.47 | 240.78 | 0.3739 | -565.0 | -561.1 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -13.55 | 222.91 | 19.46 | 239.09 | 0.3791 | -1046.0 | -889.6 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -14.33 | 222.88 | 19.43 | 237.27 | 0.3847 | -833.0 | -618.2 | |
| 0.00 | 1.62 | 0.00 | 0.86 | -12.91 | 222.72 | 19.27 | 240.40 | 0.3716 | -791.0 | -740.6 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -12.63 | 222.70 | 19.25 | 241.05 | 0.3693 | -804.0 | -611.8 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -13.31 | 222.62 | 19.18 | 239.32 | 0.3733 | -814.0 | -697.5 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -13.00 | 222.57 | 19.12 | 239.98 | 0.3701 | -749.0 | -612.7 | |
| 4.31 | 8.62 | 2.33 | 4.66 | -17.11 | 222.18 | 18.73 | 230.37 | 0.4002 | 1041.4 | 775.9 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -19.69 | 222.33 | 18.88 | 225.68 | 0.4277 | -876.0 | -691.9 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -19.92 | 222.33 | 18.88 | 225.28 | 0.4299 | -613.0 | -535.4 | |
| 0.00 | 1.62 | 0.00 | 0.92 | -24.89 | 222.54 | 19.09 | 217.78 | 0.4863 | 738.0 | 740.6 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -20.15 | 218.27 | 14.82 | 218.28 | 0.3893 | -750.0 | -624.1 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -19.36 | 218.10 | 14.65 | 219.34 | 0.3780 | -704.0 | -600.7 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -18.69 | 218.04 | 14.59 | 220.43 | 0.3694 | -840.0 | -636.9 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -19.58 | 217.78 | 14.34 | 218.36 | 0.3776 | -856.0 | -722.4 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -21.76 | 217.66 | 14.21 | 214.57 | 0.4034 | -717.0 | -559.9 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -19.97 | 217.49 | 14.04 | 217.13 | 0.3793 | -682.0 | -542.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -19.75 | 217.24 | 13.79 | 217.02 | 0.3741 | -917.0 | -739.6 | |
| 0.00 | 1.44 | 0.00 | 0.77 | -20.84 | 215.70 | 12.25 | 212.17 | 0.3742 | -885.0 | -670.6 | |
| 0.00 | 4.67 | 0.00 | 2.51 | -21.97 | 215.60 | 12.15 | 210.30 | 0.3884 | -730.0 | -680.2 | |
| 0.00 | 4.22 | 0.00 | 2.26 | -21.68 | 215.37 | 11.92 | 210.25 | 0.3827 | -991.0 | -856.0 | |
| 0.00 | 1.53 | 0.00 | 0.81 | -22.67 | 211.88 | 8.44 | 201.43 | 0.3721 | -827.0 | -642.5 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -22.67 | 211.35 | 7.90 | 200.20 | 0.3691 | -859.0 | -628.2 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -21.99 | 210.89 | 7.44 | 199.78 | 0.3563 | -871.0 | -647.4 | |
| 0.00 | 1.26 | 0.00 | 0.66 | -20.88 | 207.90 | 4.45 | 192.94 | 0.3248 | -959.0 | -698.1 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -13.45 | 206.54 | 3.09 | 195.46 | 0.1978 | -792.0 | -560.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
