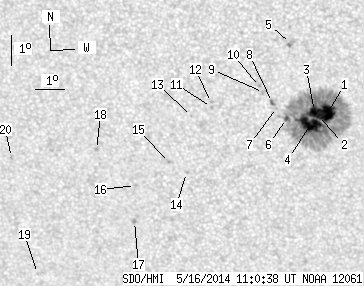

SDO HMI 2014-05-16 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.37 | 302.68 | 28.87 | 164.08 | -23.85 | 192.39 | -11.06 | 154.39 | 0.4066 | 666.5 | 342.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 11:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.69 | 279.03 | 10.09 | 151.01 | -23.67 | 193.10 | -10.35 | 155.52 | 0.3989 | 1356.6 | 407.6 | |
| 2.07 | -1.00 | 1.12 | -1.00 | -23.76 | 192.78 | -10.66 | 154.99 | 0.4024 | 1350.7 | 999999 | |
| 9.79 | -1.00 | 5.29 | -1.00 | -23.63 | 192.66 | -10.79 | 154.59 | 0.4013 | 1268.5 | 999999 | |
| 20.66 | -1.00 | 11.20 | -1.00 | -24.05 | 192.49 | -10.96 | 154.74 | 0.4085 | 1070.4 | 999999 | |
| 0.00 | 3.59 | 0.00 | 1.92 | -21.43 | 192.04 | -11.41 | 150.47 | 0.3751 | -866.0 | -711.8 | |
| 1.44 | -1.00 | 0.78 | -1.00 | -23.85 | 191.70 | -11.75 | 152.94 | 0.4112 | 709.9 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -23.49 | 191.39 | -12.06 | 151.90 | 0.4085 | 612.0 | 641.8 | |
| 0.72 | 2.70 | 0.39 | 1.46 | -23.33 | 191.27 | -12.18 | 151.46 | 0.4072 | 794.9 | 697.7 | |
| 0.00 | 2.78 | 0.00 | 1.51 | -23.00 | 191.00 | -12.45 | 150.51 | 0.4048 | 832.0 | 652.0 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -22.80 | 190.88 | -12.57 | 150.02 | 0.4031 | 785.0 | 505.2 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -23.47 | 189.19 | -14.26 | 147.80 | 0.4258 | -780.0 | -581.4 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -23.30 | 189.21 | -14.24 | 147.61 | 0.4236 | -958.0 | -704.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -23.75 | 188.47 | -14.98 | 146.95 | 0.4356 | -684.0 | -520.4 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -25.58 | 188.07 | -15.38 | 148.68 | 0.4622 | -682.0 | -609.9 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -25.24 | 187.52 | -15.93 | 147.38 | 0.4624 | -810.0 | -641.2 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -25.99 | 186.22 | -17.23 | 146.36 | 0.4825 | -774.0 | -559.9 | |
| 0.00 | 1.89 | 0.00 | 1.08 | -27.18 | 185.99 | -17.45 | 147.52 | 0.4989 | -942.0 | -776.9 | |
| 0.00 | 1.89 | 0.00 | 1.06 | -24.78 | 185.03 | -18.42 | 143.02 | 0.4789 | -845.0 | -611.7 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -28.88 | 182.14 | -21.31 | 144.53 | 0.5506 | -600.0 | -482.1 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -25.00 | 181.97 | -21.48 | 139.25 | 0.5105 | -605.0 | -488.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
