SDO HMI 2014-05-16 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.32 | 107.80 | 14.69 | 81.66 | 15.51 | 249.20 | 46.30 | 293.04 | 0.7593 | -452.9 | -306.6 | |
|
previous
or next observation for the same group /

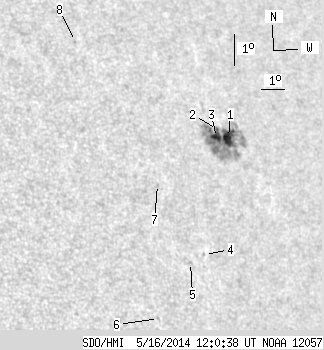

back to the solar disc SDO HMI 2014-05-16 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.31 | 102.85 | 9.40 | 78.17 | 15.62 | 249.56 | 46.66 | 293.05 | 0.7634 | -690.3 | -347.0 | |
| 0.27 | -1.00 | 0.20 | -1.00 | 15.86 | 249.12 | 46.22 | 293.51 | 0.7597 | -654.3 | 999999 | |
| 6.74 | -1.00 | 5.09 | -1.00 | 15.60 | 249.00 | 46.10 | 293.24 | 0.7576 | -912.2 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.45 | 11.87 | 247.53 | 44.63 | 288.94 | 0.7292 | 465.0 | 375.6 | |
| 0.00 | 1.44 | 0.00 | 1.02 | 11.60 | 246.86 | 43.96 | 288.82 | 0.7207 | 577.0 | 437.7 | |
| 0.00 | 0.99 | 0.00 | 0.68 | 9.81 | 245.18 | 42.28 | 286.95 | 0.6954 | 523.0 | 424.6 | |
| 0.00 | 1.17 | 0.00 | 0.83 | 14.02 | 245.97 | 43.07 | 292.40 | 0.7190 | 394.0 | 413.4 | |
| 0.00 | 0.72 | 0.00 | 0.51 | 18.52 | 243.68 | 40.78 | 299.39 | 0.7131 | 587.0 | 471.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
