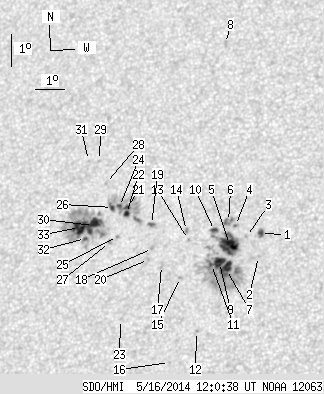

SDO HMI 2014-05-16 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.33 | 337.61 | 48.62 | 188.13 | 10.27 | 178.85 | -24.05 | 61.44 | 0.4580 | -42.2 | -52.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 12:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.34 | 4.49 | 1.27 | 2.44 | 10.40 | 182.05 | -20.85 | 57.78 | 0.4155 | -1055.2 | -834.2 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 9.69 | 182.03 | -20.87 | 59.31 | 0.4101 | -856.0 | -678.0 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 10.31 | 181.59 | -21.31 | 58.50 | 0.4210 | -805.0 | -626.4 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 10.66 | 181.20 | -21.70 | 58.25 | 0.4291 | -825.0 | -634.5 | |
| 24.25 | 39.61 | 13.27 | 21.70 | 10.08 | 181.05 | -21.85 | 59.62 | 0.4266 | -1059.9 | -595.4 | |
| 0.00 | 6.11 | 0.00 | 3.35 | 10.79 | 180.96 | -21.94 | 58.26 | 0.4333 | -832.0 | -671.0 | |
| 10.87 | 114.89 | 5.93 | 62.78 | 9.30 | 181.00 | -21.90 | 61.29 | 0.4214 | -1155.9 | -484.6 | |
| 0.00 | 2.78 | 0.00 | 1.58 | 16.42 | 180.31 | -22.59 | 48.93 | 0.4908 | 717.0 | 496.5 | |
| 7.90 | -7.00 | 4.33 | -7.00 | 9.52 | 180.75 | -22.15 | 61.09 | 0.4265 | -1017.4 | 999999 | |
| 2.07 | -5.00 | 1.14 | -5.00 | 10.52 | 180.51 | -22.39 | 59.31 | 0.4372 | -626.3 | 999999 | |
| 1.26 | -7.00 | 0.69 | -7.00 | 9.47 | 180.49 | -22.41 | 61.49 | 0.4297 | -611.9 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 7.40 | 180.12 | -22.78 | 66.27 | 0.4212 | 800.0 | 610.9 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 10.26 | 179.66 | -23.24 | 60.74 | 0.4468 | -736.0 | -636.1 | |
| 0.00 | 2.43 | 0.00 | 1.34 | 10.54 | 179.58 | -23.32 | 60.27 | 0.4501 | -691.0 | -518.5 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 9.08 | 179.48 | -23.42 | 63.30 | 0.4411 | 369.0 | 271.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 6.47 | 179.27 | -23.63 | 69.06 | 0.4283 | 792.0 | 628.6 | |
| 0.00 | 2.52 | 0.00 | 1.40 | 9.47 | 178.82 | -24.08 | 63.15 | 0.4530 | -574.0 | -398.5 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 10.00 | 178.47 | -24.43 | 62.42 | 0.4614 | 816.0 | 722.4 | |
| 1.08 | 2.87 | 0.60 | 1.61 | 10.75 | 178.38 | -24.52 | 61.06 | 0.4679 | 889.4 | 753.2 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 9.66 | 178.36 | -24.54 | 63.18 | 0.4606 | 730.0 | 541.1 | |
| 1.98 | 46.53 | 1.12 | 26.31 | 11.29 | 177.51 | -25.39 | 60.85 | 0.4834 | 977.5 | 477.0 | |
| 2.43 | -21.00 | 1.37 | -21.00 | 11.11 | 177.49 | -25.41 | 61.22 | 0.4823 | 1004.1 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 7.82 | 177.54 | -25.36 | 67.56 | 0.4609 | 738.0 | 521.6 | |
| 1.71 | -21.00 | 0.97 | -21.00 | 11.33 | 177.23 | -25.67 | 61.04 | 0.4874 | 901.8 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.76 | 10.40 | 177.25 | -25.65 | 62.77 | 0.4808 | 901.0 | 744.2 | |
| 1.89 | -21.00 | 1.07 | -21.00 | 11.31 | 176.99 | -25.91 | 61.31 | 0.4904 | 874.9 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.12 | 10.22 | 176.99 | -25.91 | 63.33 | 0.4832 | 880.0 | 723.0 | |
| 0.00 | 0.99 | 0.00 | 0.56 | 12.06 | 176.68 | -26.22 | 60.23 | 0.4998 | 648.0 | 537.5 | |
| 0.00 | 1.44 | 0.00 | 0.83 | 12.79 | 176.39 | -26.51 | 59.21 | 0.5087 | 659.0 | 422.8 | |
| 13.02 | 90.55 | 7.42 | 51.73 | 10.76 | 176.39 | -26.51 | 62.84 | 0.4948 | 1046.5 | 291.3 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 12.80 | 176.00 | -26.90 | 59.54 | 0.5138 | 675.0 | 582.6 | |
| 1.08 | 5.93 | 0.61 | 3.38 | 10.36 | 176.15 | -26.75 | 63.77 | 0.4955 | 925.3 | 681.1 | |
| 15.45 | -30.00 | 8.83 | -30.00 | 10.71 | 175.91 | -26.99 | 63.33 | 0.5010 | 951.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
