SDO HMI 2014-05-16 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.32 | 303.33 | 26.60 | 163.82 | -23.92 | 192.40 | -9.95 | 156.71 | 0.4001 | 801.7 | 387.6 | |
|
previous
or next observation for the same group /

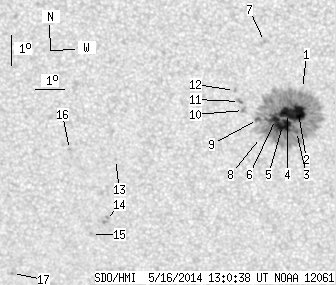

back to the solar disc SDO HMI 2014-05-16 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.67 | -22.89 | 193.23 | -9.12 | 157.28 | 0.3798 | 258.0 | 225.6 | |
| 14.19 | 284.01 | 7.64 | 153.18 | -23.67 | 193.04 | -9.31 | 157.71 | 0.3924 | 1409.1 | 425.2 | |
| 1.53 | -2.00 | 0.83 | -2.00 | -24.29 | 192.93 | -9.43 | 158.12 | 0.4021 | 558.4 | 999999 | |
| 12.31 | -2.00 | 6.63 | -2.00 | -23.70 | 192.67 | -9.68 | 156.96 | 0.3951 | 1305.5 | 999999 | |
| 14.73 | -2.00 | 7.96 | -2.00 | -24.09 | 192.47 | -9.88 | 156.96 | 0.4020 | 1098.1 | 999999 | |
| 5.21 | -2.00 | 2.81 | -2.00 | -23.89 | 192.25 | -10.10 | 156.29 | 0.4006 | 1013.2 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -21.37 | 192.07 | -10.28 | 152.85 | 0.3656 | -845.0 | -681.7 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -24.48 | 191.69 | -10.66 | 155.81 | 0.4125 | -88.0 | -86.9 | |
| 1.35 | -2.00 | 0.73 | -2.00 | -23.89 | 191.64 | -10.71 | 155.05 | 0.4045 | 718.7 | 999999 | |
| 0.00 | 3.05 | 0.00 | 1.65 | -23.59 | 191.20 | -11.15 | 153.81 | 0.4034 | 765.0 | 659.4 | |
| 0.00 | 2.60 | 0.00 | 1.41 | -23.30 | 191.09 | -11.26 | 153.24 | 0.4001 | 753.0 | 632.7 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -22.94 | 190.95 | -11.40 | 152.51 | 0.3961 | 829.0 | 724.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -25.14 | 186.64 | -15.71 | 147.61 | 0.4594 | -713.0 | -529.6 | |
| 0.00 | 3.14 | 0.00 | 1.78 | -27.16 | 186.00 | -16.35 | 149.11 | 0.4898 | -577.0 | -774.6 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -27.62 | 185.43 | -16.92 | 148.82 | 0.5000 | -729.0 | -564.3 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -24.80 | 185.09 | -17.26 | 144.74 | 0.4685 | -842.0 | -685.1 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -28.89 | 182.33 | -20.02 | 146.14 | 0.5400 | -663.0 | -514.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
