SDO HMI 2014-05-16 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.44 | 31.37 | 0.73 | 15.96 | 8.49 | 195.65 | -6.70 | 30.37 | 0.2256 | -61.2 | -67.4 | |
|
previous
or next observation for the same group /

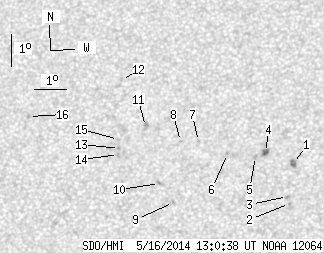

back to the solar disc SDO HMI 2014-05-16 13:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.58 | 0.00 | 2.31 | 8.17 | 198.56 | -3.79 | 19.48 | 0.1974 | -1322.0 | -1003.8 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 6.94 | 198.44 | -3.91 | 22.41 | 0.1783 | -940.0 | -804.0 | |
| 0.00 | 1.53 | 0.00 | 0.77 | 7.16 | 198.38 | -3.97 | 22.27 | 0.1821 | -943.0 | -724.4 | |
| 1.44 | 4.04 | 0.73 | 2.05 | 8.52 | 197.69 | -4.66 | 22.80 | 0.2082 | -1156.8 | -885.6 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 8.39 | 197.39 | -4.96 | 24.37 | 0.2084 | -876.0 | -724.6 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.49 | 196.52 | -5.83 | 27.78 | 0.2164 | -817.0 | -664.5 | |
| 0.00 | 1.08 | 0.00 | 0.55 | 8.87 | 195.62 | -6.73 | 30.44 | 0.2295 | -829.0 | -621.8 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 8.87 | 195.07 | -7.28 | 32.45 | 0.2345 | -788.0 | -618.8 | |
| 0.00 | 1.80 | 0.00 | 0.91 | 6.99 | 194.88 | -7.47 | 38.07 | 0.2102 | 931.0 | 672.4 | |
| 0.00 | 2.87 | 0.00 | 1.46 | 7.58 | 194.44 | -7.91 | 37.97 | 0.2227 | 964.0 | 645.3 | |
| 0.00 | 3.95 | 0.00 | 2.02 | 9.34 | 193.97 | -8.38 | 35.05 | 0.2514 | 920.0 | 698.3 | |
| 0.00 | 1.71 | 0.00 | 0.88 | 10.78 | 193.19 | -9.16 | 34.31 | 0.2788 | 231.0 | 340.7 | |
| 0.00 | 1.17 | 0.00 | 0.60 | 8.67 | 193.18 | -9.17 | 39.18 | 0.2505 | 911.0 | 756.2 | |
| 0.00 | 1.62 | 0.00 | 0.83 | 8.48 | 193.15 | -9.20 | 39.74 | 0.2484 | 894.0 | 777.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 8.95 | 193.14 | -9.21 | 38.59 | 0.2545 | 686.0 | 504.1 | |
| 0.00 | 1.26 | 0.00 | 0.65 | 9.69 | 190.31 | -12.04 | 44.36 | 0.2954 | 859.0 | 706.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
