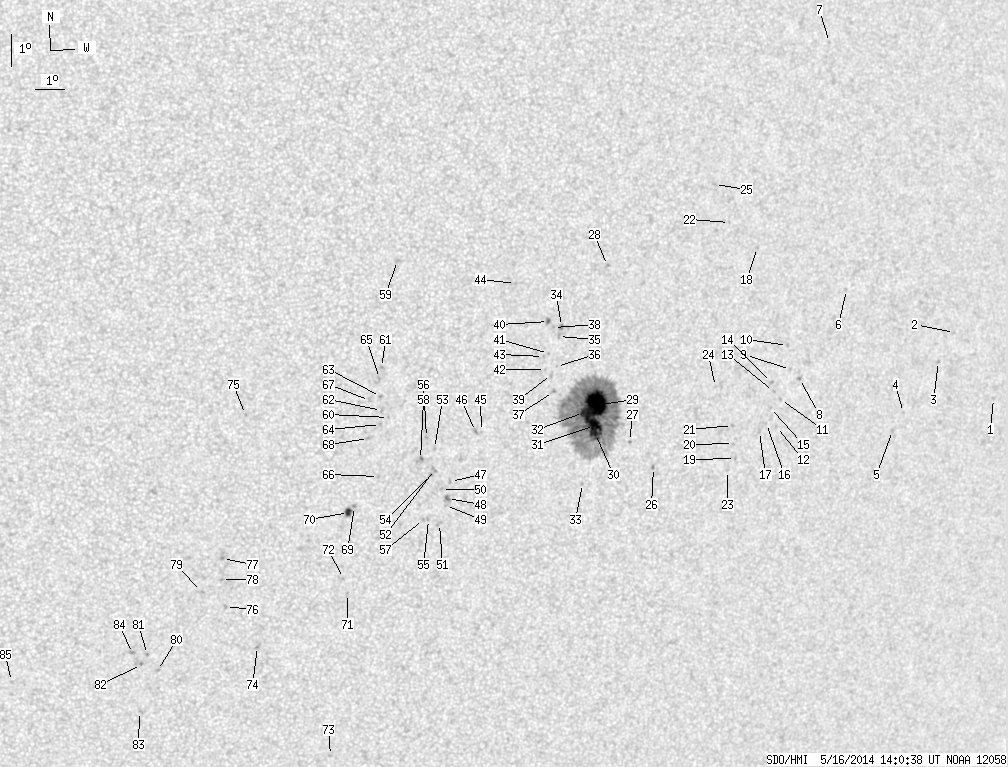

SDO HMI 2014-05-16 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.15 | 485.15 | 39.58 | 277.72 | -14.13 | 229.62 | 27.82 | 245.05 | 0.5014 | 279.9 | 246.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 14:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.94 | -13.09 | 245.60 | 43.80 | 253.82 | 0.7042 | 554.0 | 444.7 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -11.12 | 243.55 | 41.75 | 256.19 | 0.6752 | 491.0 | 442.5 | |
| 0.00 | 1.26 | 0.00 | 0.84 | -12.02 | 243.05 | 41.25 | 254.74 | 0.6708 | 608.0 | 512.4 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -13.63 | 241.93 | 40.13 | 252.05 | 0.6607 | 583.0 | 528.0 | |
| 0.00 | 1.35 | 0.00 | 0.88 | -14.20 | 241.60 | 39.80 | 251.10 | 0.6581 | 664.0 | 523.8 | |
| 0.00 | 1.44 | 0.00 | 0.90 | -9.92 | 239.04 | 37.24 | 256.99 | 0.6141 | 630.0 | 454.9 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -2.43 | 237.80 | 36.00 | 269.32 | 0.5895 | 609.0 | 483.8 | |
| 0.00 | 1.98 | 0.00 | 1.22 | -12.69 | 237.64 | 35.84 | 252.07 | 0.6026 | 697.0 | 563.4 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -12.42 | 237.25 | 35.45 | 252.37 | 0.5965 | 618.0 | 424.9 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -11.68 | 237.02 | 35.23 | 253.50 | 0.5913 | 658.0 | 552.5 | |
| 0.00 | 1.44 | 0.00 | 0.89 | -13.35 | 237.02 | 35.22 | 250.76 | 0.5965 | 588.0 | 469.4 | |
| 0.00 | 0.63 | 0.00 | 0.39 | -14.19 | 237.01 | 35.21 | 249.39 | 0.5994 | 475.0 | 378.0 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -13.11 | 236.71 | 34.91 | 251.03 | 0.5916 | 757.0 | 711.1 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -12.83 | 236.59 | 34.79 | 251.43 | 0.5891 | 929.0 | 739.7 | |
| 0.00 | 1.26 | 0.00 | 0.77 | -13.60 | 236.68 | 34.88 | 250.20 | 0.5929 | 693.0 | 586.2 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -14.10 | 236.61 | 34.81 | 249.36 | 0.5939 | 521.0 | 425.8 | |
| 0.00 | 1.62 | 0.00 | 0.99 | -14.35 | 236.39 | 34.59 | 248.85 | 0.5919 | 492.0 | 459.1 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -8.72 | 235.54 | 33.74 | 258.13 | 0.5631 | 657.0 | 460.4 | |
| 0.00 | 1.35 | 0.00 | 0.82 | -15.21 | 235.63 | 33.83 | 247.09 | 0.5854 | 650.0 | 528.2 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -14.75 | 235.47 | 33.67 | 247.77 | 0.5814 | 688.0 | 612.5 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -14.19 | 235.34 | 33.54 | 248.63 | 0.5774 | 756.0 | 624.6 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -7.98 | 234.44 | 32.64 | 259.17 | 0.5459 | 470.0 | 395.2 | |
| 0.00 | 1.17 | 0.00 | 0.71 | -15.59 | 235.40 | 33.60 | 246.35 | 0.5840 | 551.0 | 402.7 | |
| 0.00 | 0.90 | 0.00 | 0.54 | -13.00 | 234.52 | 32.72 | 250.27 | 0.5617 | 709.0 | 636.9 | |
| 0.00 | 1.44 | 0.00 | 0.84 | -6.83 | 233.80 | 32.00 | 261.14 | 0.5347 | 737.0 | 602.4 | |
| 0.00 | 1.71 | 0.00 | 1.01 | -15.56 | 232.63 | 30.83 | 244.86 | 0.5476 | -830.0 | -658.2 | |
| 0.00 | 1.08 | 0.00 | 0.63 | -14.77 | 231.63 | 29.84 | 245.63 | 0.5302 | 524.0 | 517.3 | |
| 0.00 | 1.35 | 0.00 | 0.76 | -9.38 | 230.21 | 28.41 | 255.11 | 0.4878 | -715.0 | -597.5 | |
| 41.85 | 363.92 | 24.00 | 208.81 | -13.68 | 230.26 | 28.46 | 246.76 | 0.5060 | 1330.7 | 413.7 | |
| 6.02 | -29.00 | 3.47 | -29.00 | -14.54 | 230.38 | 28.58 | 245.23 | 0.5120 | 909.8 | 999999 | |
| 13.29 | -29.00 | 7.64 | -29.00 | -14.30 | 230.31 | 28.51 | 245.64 | 0.5098 | 1075.5 | 999999 | |
| 3.95 | -29.00 | 2.26 | -29.00 | -13.90 | 229.87 | 28.07 | 246.08 | 0.5016 | 1330.4 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -16.11 | 230.15 | 28.35 | 242.24 | 0.5175 | 679.0 | 498.1 | |
| 0.00 | 2.78 | 0.00 | 1.56 | -11.27 | 228.79 | 26.99 | 250.57 | 0.4739 | -829.0 | -746.1 | |
| 0.00 | 2.07 | 0.00 | 1.16 | -11.58 | 228.72 | 26.92 | 249.90 | 0.4742 | -444.0 | -439.3 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -12.50 | 228.75 | 26.95 | 248.06 | 0.4789 | 631.0 | 551.1 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -13.27 | 228.73 | 26.93 | 246.53 | 0.4826 | 844.0 | 737.8 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -11.31 | 228.52 | 26.72 | 250.33 | 0.4701 | -831.0 | -695.4 | |
| 0.00 | 2.60 | 0.00 | 1.47 | -12.75 | 228.60 | 26.80 | 247.47 | 0.4781 | 785.0 | 608.8 | |
| 0.54 | 2.69 | 0.30 | 1.51 | -11.13 | 228.33 | 26.53 | 250.59 | 0.4665 | -919.2 | -725.3 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -12.11 | 228.43 | 26.63 | 248.65 | 0.4724 | -585.0 | -496.7 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -12.60 | 228.38 | 26.58 | 247.62 | 0.4741 | 853.0 | 677.5 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -12.20 | 228.26 | 26.46 | 248.35 | 0.4705 | -647.0 | -523.8 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -9.98 | 227.09 | 25.29 | 252.30 | 0.4435 | -818.0 | -642.0 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -14.55 | 226.38 | 24.58 | 242.18 | 0.4572 | -565.0 | -415.9 | |
| 0.00 | 2.42 | 0.00 | 1.35 | -14.56 | 226.18 | 24.38 | 241.99 | 0.4544 | -936.0 | -709.7 | |
| 0.00 | 1.89 | 0.00 | 1.05 | -16.12 | 225.51 | 23.71 | 238.26 | 0.4561 | -614.0 | -461.9 | |
| 0.00 | 3.95 | 0.00 | 2.20 | -16.66 | 225.47 | 23.67 | 237.19 | 0.4595 | -842.0 | -684.4 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -16.88 | 225.43 | 23.63 | 236.73 | 0.4607 | -565.0 | -460.4 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -16.38 | 225.23 | 23.43 | 237.48 | 0.4543 | -749.0 | -589.0 | |
| 0.00 | 2.69 | 0.00 | 1.50 | -17.44 | 225.30 | 23.50 | 235.53 | 0.4633 | -583.0 | -503.5 | |
| 0.00 | 2.69 | 0.00 | 1.49 | -15.76 | 224.91 | 23.11 | 238.38 | 0.4455 | -839.0 | -651.2 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -15.11 | 224.84 | 23.04 | 239.62 | 0.4398 | -611.0 | -486.6 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -15.92 | 224.83 | 23.03 | 237.98 | 0.4455 | -907.0 | -764.6 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -17.32 | 224.90 | 23.10 | 235.33 | 0.4573 | -719.0 | -555.0 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -14.77 | 224.53 | 22.73 | 240.00 | 0.4332 | -755.0 | -614.6 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -17.33 | 224.73 | 22.93 | 235.14 | 0.4551 | -915.0 | -778.0 | |
| 0.00 | 3.86 | 0.00 | 2.12 | -15.46 | 224.40 | 22.60 | 238.46 | 0.4364 | -974.0 | -765.5 | |
| 0.00 | 2.25 | 0.00 | 1.20 | -9.35 | 223.09 | 21.29 | 251.20 | 0.3801 | -749.0 | -595.0 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -14.17 | 223.18 | 21.38 | 239.88 | 0.4104 | -753.0 | -542.5 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -12.63 | 222.81 | 21.01 | 242.95 | 0.3944 | -872.0 | -715.7 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -13.96 | 222.92 | 21.13 | 240.07 | 0.4053 | -750.0 | -714.0 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -13.52 | 222.85 | 21.05 | 240.96 | 0.4012 | -952.0 | -734.3 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -14.39 | 222.93 | 21.13 | 239.13 | 0.4086 | -814.0 | -726.5 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -12.97 | 222.77 | 20.97 | 242.13 | 0.3962 | -935.0 | -813.2 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -16.00 | 223.03 | 21.23 | 235.84 | 0.4225 | -623.0 | -519.2 | |
| 0.00 | 1.44 | 0.00 | 0.78 | -13.65 | 222.50 | 20.70 | 240.28 | 0.3971 | -827.0 | -592.6 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -14.83 | 222.57 | 20.77 | 237.77 | 0.4070 | -807.0 | -669.1 | |
| 0.00 | 1.89 | 0.00 | 1.03 | -16.95 | 222.33 | 20.53 | 233.07 | 0.4214 | 897.0 | 747.6 | |
| 3.50 | 5.57 | 1.91 | 3.04 | -17.14 | 222.15 | 20.35 | 232.46 | 0.4208 | 1016.6 | 712.3 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -19.70 | 222.43 | 20.63 | 228.05 | 0.4478 | -876.0 | -668.7 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -19.22 | 222.23 | 20.43 | 228.64 | 0.4410 | -709.0 | -561.7 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -24.92 | 222.64 | 20.84 | 220.05 | 0.5035 | 906.0 | 722.8 | |
| 0.00 | 1.98 | 0.00 | 1.09 | -21.42 | 219.57 | 17.77 | 221.06 | 0.4343 | -737.0 | -646.3 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -14.14 | 218.45 | 16.65 | 233.80 | 0.3458 | -831.0 | -686.8 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -20.16 | 218.33 | 16.53 | 221.22 | 0.4071 | -703.0 | -521.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -18.64 | 218.08 | 16.28 | 223.53 | 0.3872 | -949.0 | -816.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -19.30 | 218.11 | 16.31 | 222.36 | 0.3950 | -742.0 | -610.6 | |
| 0.00 | 1.89 | 0.00 | 1.02 | -19.69 | 217.48 | 15.68 | 220.59 | 0.3927 | -952.0 | -798.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -22.23 | 216.26 | 14.46 | 214.31 | 0.4118 | -706.0 | -630.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -21.72 | 215.87 | 14.07 | 214.37 | 0.4018 | -820.0 | -636.6 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -22.04 | 215.70 | 13.90 | 213.57 | 0.4044 | -859.0 | -732.9 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -23.56 | 215.79 | 13.99 | 211.58 | 0.4248 | -694.0 | -552.8 | |
| 0.00 | 2.16 | 0.00 | 1.16 | -21.69 | 215.36 | 13.56 | 213.46 | 0.3969 | -894.0 | -838.2 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -22.62 | 211.40 | 9.60 | 204.07 | 0.3788 | -671.0 | -602.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
