SDO HMI 2014-05-16 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.26 | 103.29 | 18.28 | 80.83 | 15.66 | 249.11 | 47.86 | 292.66 | 0.7760 | -501.2 | -260.1 | |
|
previous
or next observation for the same group /

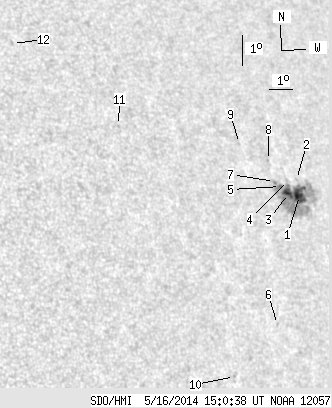

back to the solar disc SDO HMI 2014-05-16 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.91 | 93.58 | 11.76 | 73.59 | 15.61 | 249.58 | 48.33 | 292.42 | 0.7806 | -641.1 | -282.4 | |
| 0.00 | 0.99 | 0.00 | 0.78 | 16.12 | 249.60 | 48.36 | 293.04 | 0.7824 | -392.0 | -321.6 | |
| 7.45 | -1.00 | 5.82 | -1.00 | 15.66 | 249.08 | 47.83 | 292.66 | 0.7756 | -896.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.70 | 16.08 | 249.16 | 47.91 | 293.14 | 0.7778 | -450.0 | -365.1 | |
| 0.90 | -1.00 | 0.70 | -1.00 | 15.87 | 248.77 | 47.52 | 293.03 | 0.7731 | -726.3 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.67 | 11.48 | 247.47 | 46.22 | 287.90 | 0.7459 | 503.0 | 436.3 | |
| 0.00 | 2.33 | 0.00 | 1.81 | 16.02 | 248.53 | 47.29 | 293.31 | 0.7712 | -606.0 | -514.0 | |
| 0.00 | 0.72 | 0.00 | 0.56 | 16.69 | 248.47 | 47.22 | 294.16 | 0.7728 | -498.0 | -407.0 | |
| 0.00 | 0.54 | 0.00 | 0.41 | 17.20 | 247.29 | 46.04 | 295.26 | 0.7626 | -405.0 | -312.5 | |
| 0.00 | 0.90 | 0.00 | 0.64 | 9.80 | 245.26 | 44.01 | 286.36 | 0.7159 | 584.0 | 465.1 | |
| 0.00 | 1.08 | 0.00 | 0.76 | 17.62 | 242.10 | 40.85 | 298.17 | 0.7095 | 437.0 | 343.2 | |
| 0.00 | 1.35 | 0.00 | 0.91 | 20.18 | 238.43 | 37.19 | 303.63 | 0.6836 | 423.0 | 327.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
