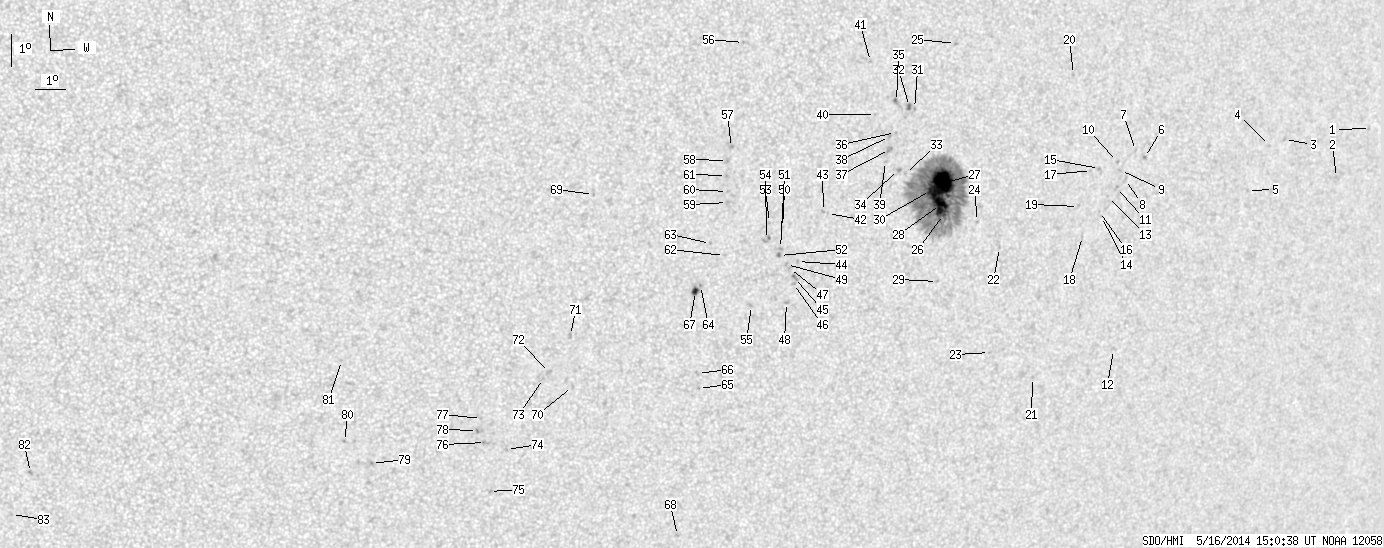

SDO HMI 2014-05-16 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.64 | 468.40 | 37.77 | 269.36 | -14.34 | 229.34 | 28.09 | 244.62 | 0.5076 | 254.6 | 257.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.45 | -11.53 | 246.72 | 45.48 | 256.35 | 0.7212 | 474.0 | 447.9 | |
| 0.00 | 1.62 | 0.00 | 1.13 | -13.08 | 245.56 | 44.32 | 253.96 | 0.7103 | 364.0 | 345.7 | |
| 0.00 | 1.26 | 0.00 | 0.85 | -11.97 | 243.12 | 41.87 | 254.96 | 0.6783 | 564.0 | 466.1 | |
| 0.00 | 1.08 | 0.00 | 0.72 | -12.17 | 242.53 | 41.28 | 254.52 | 0.6715 | 602.0 | 480.5 | |
| 0.00 | 1.26 | 0.00 | 0.83 | -13.58 | 241.90 | 40.65 | 252.28 | 0.6671 | 615.0 | 535.7 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -12.67 | 237.62 | 36.37 | 252.29 | 0.6096 | 715.0 | 592.2 | |
| 0.00 | 1.26 | 0.00 | 0.78 | -12.46 | 237.24 | 35.99 | 252.49 | 0.6040 | 642.0 | 542.7 | |
| 0.00 | 2.78 | 0.00 | 1.73 | -13.37 | 237.01 | 35.76 | 250.94 | 0.6037 | 492.0 | 453.6 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -13.09 | 236.77 | 35.52 | 251.29 | 0.5997 | 780.0 | 672.5 | |
| 0.00 | 1.17 | 0.00 | 0.72 | -12.82 | 236.61 | 35.36 | 251.68 | 0.5966 | 762.0 | 643.5 | |
| 0.00 | 1.62 | 0.00 | 1.00 | -13.62 | 236.70 | 35.46 | 250.41 | 0.6006 | 597.0 | 564.3 | |
| 0.00 | 2.07 | 0.00 | 1.32 | -18.67 | 237.64 | 36.39 | 243.00 | 0.6331 | 20.0 | 112.7 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -13.91 | 236.41 | 35.16 | 249.82 | 0.5977 | 799.0 | 713.5 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -14.53 | 236.29 | 35.04 | 248.76 | 0.5985 | 643.0 | 494.6 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -13.05 | 235.96 | 34.71 | 251.04 | 0.5888 | 703.0 | 645.7 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -14.38 | 236.18 | 34.94 | 248.97 | 0.5965 | 709.0 | 626.2 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -13.12 | 235.67 | 34.42 | 250.81 | 0.5851 | 669.0 | 545.2 | |
| 0.00 | 1.35 | 0.00 | 0.83 | -15.17 | 235.68 | 34.43 | 247.46 | 0.5931 | 652.0 | 509.4 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -14.24 | 235.36 | 34.11 | 248.82 | 0.5852 | 666.0 | 592.8 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -10.19 | 234.59 | 33.34 | 255.41 | 0.5612 | 743.0 | 589.8 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -19.62 | 234.70 | 33.45 | 239.89 | 0.6024 | 608.0 | 471.3 | |
| 0.00 | 1.26 | 0.00 | 0.75 | -15.57 | 232.64 | 31.39 | 245.16 | 0.5550 | -654.0 | -587.2 | |
| 0.00 | 1.08 | 0.00 | 0.65 | -18.87 | 232.89 | 31.64 | 239.89 | 0.5760 | 571.0 | 484.8 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -14.79 | 231.70 | 30.46 | 245.97 | 0.5387 | 482.0 | 426.2 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -9.33 | 230.26 | 29.01 | 255.44 | 0.4964 | -639.0 | -631.8 | |
| 0.27 | 349.70 | 0.16 | 201.69 | -14.59 | 230.44 | 29.20 | 245.54 | 0.5207 | 818.0 | 434.9 | |
| 40.50 | -26.00 | 23.34 | -26.00 | -13.64 | 230.24 | 28.99 | 247.16 | 0.5131 | 1348.8 | 999999 | |
| 17.96 | -26.00 | 10.38 | -26.00 | -14.29 | 230.29 | 29.05 | 246.00 | 0.5170 | 1059.8 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -16.68 | 230.55 | 29.31 | 241.91 | 0.5335 | -651.0 | -480.6 | |
| 3.32 | -26.00 | 1.91 | -26.00 | -13.86 | 229.88 | 28.63 | 246.52 | 0.5092 | 1346.6 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -11.35 | 229.01 | 27.77 | 250.85 | 0.4855 | -498.0 | -423.6 | |
| 0.81 | 2.33 | 0.46 | 1.32 | -11.29 | 228.83 | 27.59 | 250.86 | 0.4826 | -805.8 | -731.2 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -13.35 | 228.93 | 27.68 | 246.87 | 0.4934 | 689.0 | 496.9 | |
| 0.00 | 1.98 | 0.00 | 1.12 | -13.23 | 228.67 | 27.42 | 246.93 | 0.4892 | 783.0 | 731.5 | |
| 0.00 | 2.96 | 0.00 | 1.67 | -11.15 | 228.37 | 27.12 | 250.89 | 0.4752 | -925.0 | -768.6 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -12.10 | 228.43 | 27.18 | 249.02 | 0.4804 | -414.0 | -427.3 | |
| 0.00 | 3.41 | 0.00 | 1.93 | -12.62 | 228.28 | 27.03 | 247.87 | 0.4807 | 688.0 | 669.3 | |
| 0.00 | 1.62 | 0.00 | 0.91 | -12.22 | 228.24 | 26.99 | 248.64 | 0.4781 | -695.0 | -555.0 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -13.00 | 228.18 | 26.93 | 247.08 | 0.4812 | 746.0 | 611.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -11.56 | 227.68 | 26.43 | 249.65 | 0.4670 | -692.0 | -467.2 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -9.94 | 227.36 | 26.11 | 252.85 | 0.4555 | -794.0 | -586.2 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -14.64 | 226.36 | 25.11 | 242.46 | 0.4650 | -420.0 | -386.7 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -14.58 | 226.22 | 24.97 | 242.46 | 0.4626 | -806.0 | -674.1 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -16.14 | 225.51 | 24.26 | 238.75 | 0.4636 | -615.0 | -547.1 | |
| 0.00 | 2.33 | 0.00 | 1.31 | -16.65 | 225.47 | 24.23 | 237.76 | 0.4667 | -896.0 | -697.7 | |
| 0.00 | 1.44 | 0.00 | 0.80 | -16.83 | 225.46 | 24.22 | 237.39 | 0.4680 | -689.0 | -561.7 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -16.37 | 225.26 | 24.02 | 238.09 | 0.4619 | -782.0 | -601.7 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -17.43 | 225.30 | 24.06 | 236.11 | 0.4704 | -698.0 | -581.8 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -16.24 | 225.14 | 23.90 | 238.21 | 0.4595 | -817.0 | -637.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -15.10 | 224.87 | 23.62 | 240.20 | 0.4476 | -641.0 | -500.5 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -15.75 | 224.88 | 23.63 | 238.91 | 0.4523 | -882.0 | -710.0 | |
| 0.00 | 1.89 | 0.00 | 1.05 | -15.97 | 224.87 | 23.62 | 238.47 | 0.4538 | -780.0 | -698.5 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -14.95 | 224.40 | 23.16 | 240.06 | 0.4403 | -669.0 | -540.8 | |
| 0.00 | 3.59 | 0.00 | 1.98 | -15.48 | 224.36 | 23.11 | 238.94 | 0.4435 | -378.0 | -696.0 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -17.54 | 224.11 | 22.86 | 234.65 | 0.4560 | -683.0 | -628.3 | |
| 0.00 | 1.26 | 0.00 | 0.68 | -9.43 | 223.04 | 21.79 | 251.35 | 0.3882 | -902.0 | -685.4 | |
| 0.00 | 2.07 | 0.00 | 1.12 | -12.65 | 222.89 | 21.64 | 243.54 | 0.4037 | -703.0 | -609.5 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -13.05 | 222.79 | 21.54 | 242.53 | 0.4049 | -845.0 | -755.2 | |
| 0.00 | 1.62 | 0.00 | 0.88 | -14.35 | 222.92 | 21.67 | 239.80 | 0.4156 | -912.0 | -735.8 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -14.01 | 222.88 | 21.63 | 240.50 | 0.4127 | -742.0 | -628.9 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -13.52 | 222.80 | 21.55 | 241.50 | 0.4082 | -792.0 | -732.1 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -16.00 | 222.99 | 21.74 | 236.44 | 0.4291 | -671.0 | -526.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -15.63 | 222.48 | 21.23 | 236.60 | 0.4194 | -714.0 | -471.0 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -16.94 | 222.28 | 21.04 | 233.71 | 0.4278 | 864.0 | 700.6 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -20.19 | 222.64 | 21.39 | 228.15 | 0.4614 | -742.0 | -619.3 | |
| 0.00 | 1.89 | 0.00 | 1.05 | -19.72 | 222.54 | 21.29 | 228.85 | 0.4557 | -709.0 | -581.5 | |
| 2.78 | 4.85 | 1.52 | 2.65 | -17.13 | 222.14 | 20.89 | 233.16 | 0.4275 | 1015.6 | 822.9 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -24.94 | 222.67 | 21.42 | 220.74 | 0.5094 | 811.0 | 667.3 | |
| 0.00 | 1.17 | 0.00 | 0.62 | -14.16 | 218.45 | 17.20 | 234.59 | 0.3534 | -814.0 | -682.6 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -20.18 | 218.32 | 17.08 | 222.06 | 0.4131 | -700.0 | -547.2 | |
| 0.00 | 2.33 | 0.00 | 1.26 | -18.57 | 218.08 | 16.84 | 224.60 | 0.3927 | -978.0 | -782.0 | |
| 0.00 | 2.51 | 0.00 | 1.36 | -19.75 | 217.50 | 16.25 | 221.48 | 0.3994 | -975.0 | -792.7 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -19.94 | 217.32 | 16.07 | 220.83 | 0.3997 | -779.0 | -623.5 | |
| 0.00 | 1.17 | 0.00 | 0.64 | -22.22 | 216.32 | 15.07 | 215.39 | 0.4173 | -770.0 | -625.5 | |
| 0.00 | 2.25 | 0.00 | 1.23 | -23.58 | 215.89 | 14.64 | 212.69 | 0.4307 | -724.0 | -564.8 | |
| 0.00 | 2.96 | 0.00 | 1.61 | -22.00 | 215.58 | 14.33 | 214.42 | 0.4078 | -761.0 | -667.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -21.23 | 215.37 | 14.12 | 215.21 | 0.3961 | -111.0 | -129.1 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -21.62 | 215.27 | 14.03 | 214.43 | 0.4002 | -903.0 | -765.6 | |
| 0.00 | 1.26 | 0.00 | 0.67 | -22.71 | 211.82 | 10.57 | 206.06 | 0.3868 | -784.0 | -633.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -22.01 | 210.87 | 9.62 | 204.87 | 0.3701 | -905.0 | -736.8 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -19.42 | 210.61 | 9.36 | 207.76 | 0.3308 | -771.0 | -638.3 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -23.03 | 200.55 | -0.69 | 178.18 | 0.3522 | -910.0 | -709.6 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -24.39 | 199.91 | -1.33 | 176.74 | 0.3750 | -762.0 | -670.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
