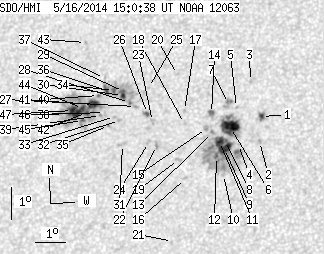

SDO HMI 2014-05-16 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.19 | 321.37 | 41.38 | 176.92 | 10.30 | 178.78 | -22.46 | 59.73 | 0.4364 | -44.5 | -35.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 15:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.89 | 4.31 | 1.02 | 2.32 | 10.37 | 182.08 | -19.17 | 55.68 | 0.3928 | -1056.2 | -856.3 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 9.60 | 182.06 | -19.19 | 57.40 | 0.3864 | -914.0 | -794.1 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 11.47 | 181.64 | -19.60 | 53.98 | 0.4082 | -878.0 | -624.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 9.52 | 181.38 | -19.87 | 58.46 | 0.3950 | -724.0 | -573.3 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 10.67 | 181.24 | -20.01 | 56.18 | 0.4065 | -862.0 | -612.1 | |
| 19.13 | 129.41 | 10.35 | 69.94 | 10.05 | 181.08 | -20.16 | 57.68 | 0.4033 | -1154.5 | -520.4 | |
| 0.00 | 6.83 | 0.00 | 3.71 | 10.80 | 180.97 | -20.28 | 56.26 | 0.4112 | -910.0 | -644.3 | |
| 1.35 | -6.00 | 0.73 | -6.00 | 9.62 | 180.95 | -20.30 | 58.78 | 0.4017 | -1210.5 | 999999 | |
| 10.51 | -6.00 | 5.68 | -6.00 | 9.40 | 180.93 | -20.32 | 59.28 | 0.4002 | -1143.2 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 8.60 | 180.94 | -20.31 | 61.04 | 0.3938 | -161.0 | -148.7 | |
| 6.74 | -6.00 | 3.65 | -6.00 | 9.62 | 180.75 | -20.50 | 59.02 | 0.4044 | -1021.2 | 999999 | |
| 1.17 | -6.00 | 0.63 | -6.00 | 9.16 | 180.68 | -20.57 | 60.11 | 0.4018 | -870.6 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.12 | 9.90 | 180.50 | -20.75 | 58.71 | 0.4101 | -825.0 | -723.5 | |
| 0.00 | 4.04 | 0.00 | 2.20 | 10.49 | 180.43 | -20.82 | 57.56 | 0.4159 | -787.0 | -650.9 | |
| 0.00 | 2.60 | 0.00 | 1.42 | 10.03 | 180.29 | -20.95 | 58.69 | 0.4139 | -717.0 | -570.2 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 8.49 | 179.70 | -21.55 | 62.67 | 0.4107 | -655.0 | -506.8 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 10.60 | 179.53 | -21.72 | 58.40 | 0.4289 | -682.0 | -501.9 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 10.20 | 179.56 | -21.69 | 59.20 | 0.4253 | -701.0 | -497.3 | |
| 0.00 | 2.87 | 0.00 | 1.57 | 9.08 | 179.43 | -21.82 | 61.67 | 0.4187 | -13.0 | 98.6 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 11.73 | 179.20 | -22.04 | 56.54 | 0.4423 | -530.0 | -485.3 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 6.56 | 179.37 | -21.88 | 67.35 | 0.4028 | 637.0 | 421.7 | |
| 0.00 | 2.69 | 0.00 | 1.48 | 9.53 | 178.67 | -22.58 | 61.54 | 0.4325 | -609.0 | -464.0 | |
| 0.00 | 2.78 | 0.00 | 1.53 | 10.28 | 178.48 | -22.76 | 60.21 | 0.4405 | 669.0 | 554.1 | |
| 0.00 | 2.25 | 0.00 | 1.24 | 9.63 | 178.40 | -22.85 | 61.62 | 0.4370 | 622.0 | 566.6 | |
| 0.00 | 0.90 | 0.00 | 0.50 | 11.34 | 178.27 | -22.98 | 58.35 | 0.4516 | 743.0 | 530.1 | |
| 1.08 | 3.77 | 0.60 | 2.08 | 10.53 | 178.30 | -22.95 | 59.90 | 0.4449 | 922.0 | 782.4 | |
| 0.00 | 1.98 | 0.00 | 1.10 | 10.76 | 177.88 | -23.37 | 59.90 | 0.4523 | 1003.0 | 782.1 | |
| 0.36 | 38.44 | 0.20 | 21.46 | 10.89 | 177.66 | -23.58 | 59.87 | 0.4561 | 989.2 | 532.5 | |
| 0.27 | -28.00 | 0.15 | -28.00 | 11.23 | 177.43 | -23.82 | 59.44 | 0.4618 | 1020.0 | 999999 | |
| 2.16 | -28.00 | 1.20 | -28.00 | 11.11 | 177.41 | -23.84 | 59.70 | 0.4612 | 1066.2 | 999999 | |
| 0.00 | 3.68 | 0.00 | 2.04 | 9.58 | 177.53 | -23.72 | 62.57 | 0.4487 | 783.0 | 626.8 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 10.33 | 177.37 | -23.88 | 61.24 | 0.4561 | 896.0 | 771.6 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 10.46 | 177.19 | -24.05 | 61.17 | 0.4594 | 721.0 | 665.0 | |
| 1.62 | -28.00 | 0.90 | -28.00 | 11.27 | 177.09 | -24.16 | 59.71 | 0.4667 | 906.6 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.65 | 10.18 | 177.01 | -24.23 | 61.88 | 0.4600 | 749.0 | 659.6 | |
| 2.87 | -28.00 | 1.61 | -28.00 | 11.28 | 176.85 | -24.40 | 59.94 | 0.4699 | 813.8 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 11.65 | 176.75 | -24.50 | 59.34 | 0.4740 | 401.0 | 281.0 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 10.59 | 176.84 | -24.40 | 61.25 | 0.4651 | 708.0 | 572.5 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 10.50 | 176.72 | -24.53 | 61.55 | 0.4662 | 895.0 | 754.1 | |
| 0.54 | 1.98 | 0.30 | 1.11 | 11.13 | 176.59 | -24.65 | 60.48 | 0.4723 | 768.7 | 574.7 | |
| 7.45 | 90.52 | 4.19 | 51.00 | 10.85 | 176.45 | -24.80 | 61.14 | 0.4723 | 1033.7 | 353.0 | |
| 2.42 | -41.00 | 1.36 | -41.00 | 10.60 | 176.23 | -25.02 | 61.81 | 0.4735 | 1096.0 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.71 | 12.80 | 175.99 | -25.26 | 58.02 | 0.4926 | 675.0 | 625.2 | |
| 2.69 | -41.00 | 1.52 | -41.00 | 10.73 | 176.08 | -25.16 | 61.70 | 0.4764 | 1035.6 | 999999 | |
| 0.99 | -41.00 | 0.55 | -41.00 | 10.36 | 176.12 | -25.13 | 62.38 | 0.4734 | 1006.5 | 999999 | |
| 5.66 | -41.00 | 3.19 | -41.00 | 10.58 | 175.93 | -25.32 | 62.14 | 0.4775 | 1100.0 | 999999 | |
| 6.29 | -41.00 | 3.55 | -41.00 | 10.68 | 175.75 | -25.50 | 62.12 | 0.4806 | 887.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
