SDO HMI 2014-05-16 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.73 | 314.54 | 40.32 | 172.36 | 10.35 | 178.85 | -21.84 | 58.93 | 0.4284 | -87.6 | -23.7 | |
|
previous
or next observation for the same group /

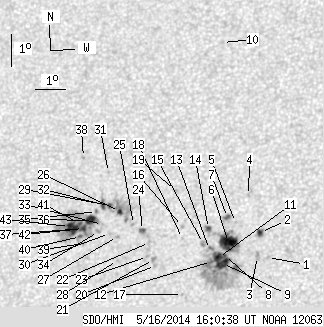

back to the solar disc SDO HMI 2014-05-16 16:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.77 | 9.59 | 182.38 | -18.31 | 56.22 | 0.3744 | -828.0 | -605.9 | |
| 2.69 | 4.76 | 1.45 | 2.55 | 10.37 | 182.11 | -18.59 | 54.88 | 0.3849 | -1048.9 | -773.1 | |
| 0.00 | 4.13 | 0.00 | 2.21 | 9.62 | 182.06 | -18.64 | 56.60 | 0.3791 | -780.0 | -711.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 11.53 | 181.64 | -19.05 | 53.11 | 0.4016 | -749.0 | -581.8 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 10.69 | 181.27 | -19.42 | 55.35 | 0.3989 | -744.0 | -664.4 | |
| 20.56 | 131.47 | 11.09 | 70.80 | 10.07 | 181.08 | -19.61 | 56.92 | 0.3960 | -1123.4 | -493.2 | |
| 1.35 | 4.85 | 0.73 | 2.62 | 10.85 | 181.00 | -19.69 | 55.38 | 0.4039 | -809.7 | -606.8 | |
| 1.26 | -6.00 | 0.68 | -6.00 | 9.67 | 180.98 | -19.72 | 57.93 | 0.3941 | -1215.6 | 999999 | |
| 9.52 | -6.00 | 5.12 | -6.00 | 9.42 | 180.93 | -19.77 | 58.54 | 0.3928 | -1161.9 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.75 | 16.38 | 180.35 | -20.34 | 46.09 | 0.4649 | 665.0 | 525.9 | |
| 7.27 | -6.00 | 3.92 | -6.00 | 9.61 | 180.79 | -19.91 | 58.31 | 0.3963 | -1034.3 | 999999 | |
| 0.54 | -6.00 | 0.29 | -6.00 | 9.49 | 180.56 | -20.13 | 58.85 | 0.3983 | -568.8 | 999999 | |
| 0.00 | 3.23 | 0.00 | 1.75 | 9.86 | 180.48 | -20.22 | 58.15 | 0.4026 | -463.0 | -604.8 | |
| 1.71 | 5.21 | 0.93 | 2.82 | 10.52 | 180.40 | -20.30 | 56.86 | 0.4090 | -674.8 | -493.9 | |
| 0.00 | 3.50 | 0.00 | 1.90 | 10.05 | 180.27 | -20.43 | 58.00 | 0.4070 | -584.0 | -557.1 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 10.59 | 179.54 | -21.16 | 57.76 | 0.4212 | -755.0 | -517.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 8.49 | 179.67 | -21.02 | 62.11 | 0.4031 | -591.0 | -467.9 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 10.22 | 179.56 | -21.13 | 58.50 | 0.4178 | -739.0 | -478.7 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 11.72 | 179.22 | -21.48 | 55.89 | 0.4348 | -781.0 | -604.2 | |
| 0.00 | 1.89 | 0.00 | 1.03 | 9.40 | 178.73 | -21.97 | 61.17 | 0.4231 | -354.0 | -183.2 | |
| 0.00 | 2.69 | 0.00 | 1.47 | 9.59 | 178.65 | -22.05 | 60.87 | 0.4255 | -656.0 | -515.6 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 10.12 | 178.48 | -22.22 | 59.96 | 0.4318 | 640.0 | 504.7 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 9.68 | 178.44 | -22.25 | 60.89 | 0.4291 | 738.0 | 509.1 | |
| 1.44 | 3.32 | 0.79 | 1.83 | 10.49 | 178.22 | -22.48 | 59.48 | 0.4383 | 977.3 | 825.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 10.69 | 177.90 | -22.80 | 59.44 | 0.4440 | 837.0 | 731.8 | |
| 2.25 | 37.72 | 1.25 | 20.97 | 11.10 | 177.40 | -23.30 | 59.16 | 0.4539 | 1108.2 | 551.4 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 10.32 | 177.39 | -23.30 | 60.69 | 0.4482 | 854.0 | 737.2 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 9.58 | 177.45 | -23.25 | 62.13 | 0.4421 | 769.0 | 633.5 | |
| 1.80 | -26.00 | 1.00 | -26.00 | 11.29 | 177.04 | -23.65 | 59.16 | 0.4601 | 960.8 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 10.42 | 177.12 | -23.58 | 60.78 | 0.4527 | 844.0 | 706.8 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 12.33 | 176.91 | -23.78 | 57.35 | 0.4698 | 601.0 | 513.5 | |
| 2.42 | -26.00 | 1.35 | -26.00 | 11.33 | 176.80 | -23.89 | 59.34 | 0.4636 | 821.8 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 10.71 | 176.86 | -23.84 | 60.48 | 0.4583 | 927.0 | 809.6 | |
| 0.00 | 1.80 | 0.00 | 1.00 | 10.49 | 176.74 | -23.96 | 61.02 | 0.4583 | 894.0 | 770.6 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 11.12 | 176.62 | -24.08 | 59.93 | 0.4644 | 759.0 | 587.8 | |
| 7.00 | 87.47 | 3.92 | 49.05 | 10.84 | 176.44 | -24.26 | 60.64 | 0.4649 | 1025.3 | 397.8 | |
| 2.69 | -36.00 | 1.51 | -36.00 | 10.59 | 176.22 | -24.47 | 61.32 | 0.4660 | 1099.0 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.66 | 12.82 | 176.01 | -24.68 | 57.41 | 0.4852 | 781.0 | 628.4 | |
| 0.00 | 1.44 | 0.00 | 0.80 | 10.13 | 176.26 | -24.43 | 62.18 | 0.4623 | 833.0 | 678.3 | |
| 0.81 | -36.00 | 0.45 | -36.00 | 10.35 | 176.14 | -24.55 | 61.87 | 0.4654 | 1074.2 | 999999 | |
| 0.27 | -36.00 | 0.15 | -36.00 | 10.75 | 176.07 | -24.62 | 61.16 | 0.4692 | 1046.7 | 999999 | |
| 5.30 | -36.00 | 2.97 | -36.00 | 10.57 | 175.92 | -24.78 | 61.65 | 0.4700 | 1135.7 | 999999 | |
| 4.85 | -36.00 | 2.72 | -36.00 | 10.67 | 175.74 | -24.95 | 61.64 | 0.4731 | 963.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
