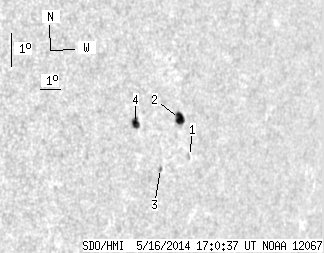

SDO HMI 2014-05-16 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.57 | 21.55 | 9.98 | 17.18 | -8.08 | 251.65 | 51.51 | 261.67 | 0.7853 | 128.0 | 75.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.24 | 0.00 | 1.85 | -8.90 | 253.03 | 52.89 | 260.74 | 0.8005 | 473.0 | 411.9 | |
| 7.54 | 10.42 | 6.10 | 8.42 | -7.76 | 252.31 | 52.16 | 262.12 | 0.7922 | 687.3 | 429.1 | |
| 0.00 | 1.71 | 0.00 | 1.36 | -9.31 | 251.65 | 51.51 | 260.10 | 0.7863 | -448.0 | -390.8 | |
| 5.03 | 7.18 | 3.88 | 5.55 | -7.98 | 250.19 | 50.05 | 261.68 | 0.7695 | -691.6 | -407.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
