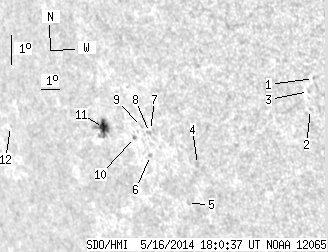

SDO HMI 2014-05-16 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.89 | 31.81 | 8.20 | 28.32 | -18.38 | 144.62 | -54.97 | 110.59 | 0.8310 | 305.6 | 161.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.65 | -17.03 | 154.19 | -45.40 | 111.14 | 0.7322 | -571.0 | -483.0 | |
| 0.00 | 1.08 | 0.00 | 0.79 | -17.99 | 153.74 | -45.85 | 112.29 | 0.7398 | -559.0 | -449.0 | |
| 0.00 | 1.08 | 0.00 | 0.79 | -17.43 | 153.84 | -45.75 | 111.57 | 0.7372 | -519.0 | -424.3 | |
| 0.00 | 2.60 | 0.00 | 2.17 | -19.54 | 147.59 | -51.99 | 112.58 | 0.8064 | 82.0 | 141.6 | |
| 0.00 | 0.63 | 0.00 | 0.54 | -20.75 | 146.47 | -53.12 | 113.78 | 0.8195 | 540.0 | 493.1 | |
| 0.00 | 1.44 | 0.00 | 1.26 | -19.17 | 145.23 | -54.35 | 111.61 | 0.8277 | 532.0 | 483.3 | |
| 0.00 | 0.36 | 0.00 | 0.31 | -18.39 | 145.61 | -53.98 | 110.75 | 0.8229 | 348.0 | 448.0 | |
| 0.00 | 1.98 | 0.00 | 1.72 | -18.45 | 145.52 | -54.06 | 110.81 | 0.8238 | 670.0 | 533.6 | |
| 0.00 | 1.17 | 0.00 | 1.02 | -18.25 | 145.18 | -54.41 | 110.50 | 0.8267 | 511.0 | 410.2 | |
| 0.00 | 1.44 | 0.00 | 1.28 | -18.58 | 144.63 | -54.96 | 110.79 | 0.8322 | 417.0 | 271.5 | |
| 8.89 | 18.59 | 8.20 | 17.20 | -18.21 | 143.04 | -56.54 | 110.05 | 0.8458 | 592.9 | 158.3 | |
| 0.00 | 0.54 | 0.00 | 0.59 | -17.96 | 137.30 | -62.29 | 108.93 | 0.8921 | -445.0 | -305.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
