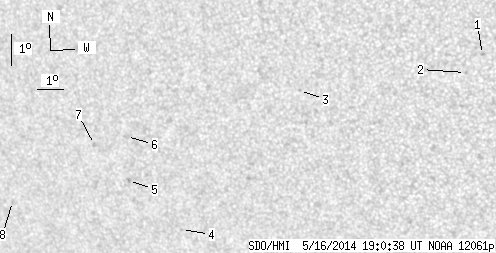

SDO HMI 2014-05-16 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.58 | 0.00 | 8.04 | -20.27 | 163.60 | -35.43 | 120.38 | 0.6267 | -181.6 | -212.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.90 | -17.63 | 175.59 | -23.44 | 124.90 | 0.4642 | 831.0 | 635.7 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -18.19 | 174.92 | -24.11 | 125.22 | 0.4770 | 693.0 | 528.9 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -18.63 | 168.87 | -30.16 | 120.77 | 0.5562 | -712.0 | -533.5 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -22.95 | 163.22 | -35.81 | 123.53 | 0.6486 | -578.0 | -519.0 | |
| 0.00 | 1.62 | 0.00 | 1.06 | -21.33 | 161.55 | -37.48 | 120.29 | 0.6587 | -769.0 | -561.2 | |
| 0.00 | 2.24 | 0.00 | 1.46 | -19.92 | 161.88 | -37.16 | 118.46 | 0.6482 | -147.0 | -207.6 | |
| 0.00 | 1.89 | 0.00 | 1.25 | -20.14 | 160.50 | -38.53 | 118.08 | 0.6651 | -630.0 | -505.3 | |
| 0.00 | 2.24 | 0.00 | 1.59 | -21.86 | 156.42 | -42.62 | 118.57 | 0.7178 | -141.0 | -218.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
