SDO HMI 2014-05-16 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.16 | 300.77 | 41.19 | 162.85 | 10.30 | 179.00 | -20.03 | 56.82 | 0.4037 | -103.4 | -21.8 | |
|
previous
or next observation for the same group /

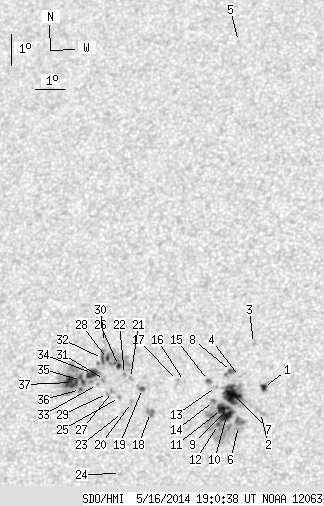

back to the solar disc SDO HMI 2014-05-16 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.69 | 4.67 | 1.43 | 2.48 | 10.31 | 182.11 | -16.93 | 52.49 | 0.3627 | -1065.0 | -819.4 | |
| 0.00 | 6.65 | 0.00 | 3.52 | 9.54 | 182.05 | -16.98 | 54.34 | 0.3561 | -797.0 | -564.4 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 11.69 | 181.70 | -17.33 | 50.18 | 0.3814 | -812.0 | -561.4 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 10.67 | 181.31 | -17.72 | 52.96 | 0.3764 | -785.0 | -532.7 | |
| 0.00 | 1.08 | 0.00 | 0.62 | 21.40 | 180.27 | -18.77 | 36.62 | 0.5042 | -694.0 | -491.7 | |
| 0.00 | 14.46 | 0.00 | 7.68 | 9.12 | 181.36 | -17.67 | 56.37 | 0.3615 | -661.0 | -663.0 | |
| 21.82 | 118.26 | 11.65 | 63.07 | 10.11 | 181.12 | -17.92 | 54.47 | 0.3737 | -1122.0 | -454.5 | |
| 1.26 | 5.39 | 0.67 | 2.89 | 10.83 | 181.04 | -17.99 | 53.02 | 0.3814 | -862.6 | -683.1 | |
| 1.53 | -7.00 | 0.81 | -7.00 | 9.68 | 180.98 | -18.05 | 55.64 | 0.3716 | -1184.8 | 999999 | |
| 9.16 | -7.00 | 4.88 | -7.00 | 9.46 | 180.96 | -18.07 | 56.17 | 0.3700 | -1153.9 | 999999 | |
| 6.82 | -7.00 | 3.64 | -7.00 | 9.65 | 180.79 | -18.25 | 55.99 | 0.3740 | -1027.3 | 999999 | |
| 1.17 | -7.00 | 0.62 | -7.00 | 9.19 | 180.71 | -18.32 | 57.15 | 0.3709 | -928.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 10.37 | 180.58 | -18.45 | 54.69 | 0.3831 | -673.0 | -544.4 | |
| 0.54 | 3.23 | 0.29 | 1.73 | 9.90 | 180.51 | -18.52 | 55.81 | 0.3799 | -840.3 | -650.4 | |
| 0.99 | 2.69 | 0.53 | 1.45 | 10.56 | 180.31 | -18.72 | 54.67 | 0.3884 | -701.5 | -585.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 10.54 | 179.53 | -19.50 | 55.79 | 0.3986 | -690.0 | -455.2 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 10.57 | 179.30 | -19.74 | 56.03 | 0.4020 | -725.0 | -565.7 | |
| 0.00 | 5.84 | 0.00 | 3.16 | 9.60 | 178.47 | -20.56 | 59.15 | 0.4050 | 408.0 | 258.8 | |
| 1.62 | 4.67 | 0.88 | 2.54 | 10.35 | 178.16 | -20.87 | 57.94 | 0.4153 | 973.9 | 716.7 | |
| 0.00 | 2.33 | 0.00 | 1.27 | 9.92 | 177.83 | -21.20 | 59.24 | 0.4164 | 803.0 | 699.9 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 10.66 | 177.74 | -21.29 | 57.79 | 0.4235 | 706.0 | 693.3 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 10.79 | 177.53 | -21.50 | 57.78 | 0.4273 | 1115.0 | 910.3 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 9.61 | 177.55 | -21.48 | 60.20 | 0.4178 | 774.0 | 567.8 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 7.73 | 177.60 | -21.44 | 64.27 | 0.4037 | 709.0 | 567.9 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 10.08 | 177.42 | -21.61 | 59.37 | 0.4232 | 805.0 | 579.7 | |
| 1.89 | 39.87 | 1.04 | 21.92 | 11.08 | 177.31 | -21.72 | 57.46 | 0.4326 | 1123.2 | 505.6 | |
| 0.00 | 1.98 | 0.00 | 1.08 | 10.27 | 177.17 | -21.86 | 59.25 | 0.4280 | 846.0 | 735.4 | |
| 1.44 | -26.00 | 0.79 | -26.00 | 11.30 | 176.93 | -22.10 | 57.46 | 0.4395 | 805.1 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 10.21 | 177.01 | -22.02 | 59.56 | 0.4298 | 902.0 | 737.1 | |
| 0.00 | 1.71 | 0.00 | 0.94 | 11.80 | 176.79 | -22.24 | 56.65 | 0.4454 | 496.0 | 382.3 | |
| 0.00 | 2.24 | 0.00 | 1.23 | 10.65 | 176.88 | -22.15 | 58.82 | 0.4350 | 778.0 | 746.9 | |
| 1.98 | -26.00 | 1.09 | -26.00 | 11.30 | 176.76 | -22.27 | 57.65 | 0.4417 | 785.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 10.50 | 176.66 | -22.37 | 59.37 | 0.4368 | 892.0 | 714.9 | |
| 7.36 | 70.31 | 4.06 | 38.93 | 10.84 | 176.47 | -22.57 | 58.89 | 0.4421 | 993.2 | 411.5 | |
| 3.59 | -34.00 | 1.99 | -34.00 | 10.63 | 176.11 | -22.92 | 59.69 | 0.4452 | 1022.0 | 999999 | |
| 0.81 | -34.00 | 0.45 | -34.00 | 10.35 | 176.10 | -22.93 | 60.26 | 0.4433 | 1045.4 | 999999 | |
| 11.49 | -34.00 | 6.37 | -34.00 | 10.57 | 175.78 | -23.25 | 60.15 | 0.4493 | 1021.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
