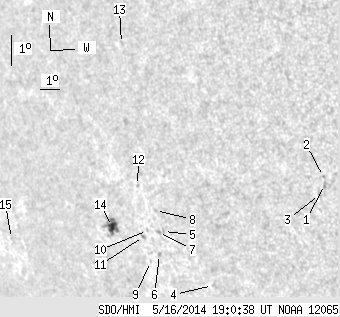

SDO HMI 2014-05-16 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.93 | 35.40 | 5.39 | 30.55 | -18.00 | 145.33 | -53.71 | 110.43 | 0.8179 | 295.2 | 191.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 19:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.78 | 0.00 | 2.00 | -17.23 | 154.12 | -44.92 | 111.56 | 0.7274 | -560.0 | -426.8 | |
| 0.00 | 0.99 | 0.00 | 0.71 | -16.98 | 154.15 | -44.88 | 111.23 | 0.7264 | -550.0 | -479.5 | |
| 0.00 | 2.96 | 0.00 | 2.15 | -17.54 | 153.79 | -45.24 | 111.87 | 0.7319 | -522.0 | -439.4 | |
| 0.00 | 0.54 | 0.00 | 0.45 | -20.23 | 147.56 | -51.47 | 113.55 | 0.8030 | 633.0 | 559.3 | |
| 0.00 | 1.17 | 0.00 | 1.00 | -18.45 | 145.79 | -53.25 | 110.98 | 0.8162 | 623.0 | 567.5 | |
| 0.00 | 1.62 | 0.00 | 1.40 | -19.16 | 145.24 | -53.80 | 111.72 | 0.8226 | 577.0 | 493.1 | |
| 0.00 | 1.98 | 0.00 | 1.70 | -18.47 | 145.51 | -53.53 | 110.94 | 0.8188 | 698.0 | 544.0 | |
| 0.00 | 0.54 | 0.00 | 0.46 | -17.78 | 145.65 | -53.38 | 110.14 | 0.8162 | 535.0 | 441.2 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -19.36 | 144.64 | -54.39 | 111.83 | 0.8284 | 168.0 | 175.7 | |
| 0.00 | 0.99 | 0.00 | 0.86 | -18.39 | 144.95 | -54.09 | 110.73 | 0.8239 | 434.0 | 353.5 | |
| 0.00 | 1.71 | 0.00 | 1.50 | -18.57 | 144.64 | -54.39 | 110.88 | 0.8270 | 366.0 | 261.8 | |
| 0.00 | 1.17 | 0.00 | 1.01 | -16.97 | 145.03 | -54.00 | 109.04 | 0.8207 | 476.0 | 395.1 | |
| 0.00 | 0.90 | 0.00 | 0.75 | -12.56 | 145.78 | -53.25 | 103.78 | 0.8075 | 183.0 | 203.2 | |
| 5.93 | 16.97 | 5.39 | 15.44 | -18.19 | 143.08 | -55.96 | 110.14 | 0.8406 | 594.8 | 345.5 | |
| 0.00 | 0.81 | 0.00 | 0.88 | -18.34 | 136.65 | -62.38 | 109.34 | 0.8932 | -544.0 | -494.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
