SDO HMI 2014-05-16 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.68 | 309.21 | 30.32 | 165.71 | -23.98 | 192.04 | -6.43 | 164.56 | 0.3827 | 728.7 | 341.7 | |
|
previous
or next observation for the same group /

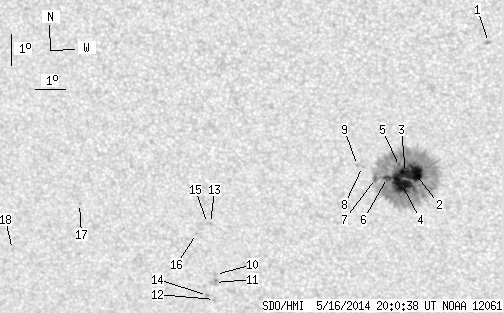

back to the solar disc SDO HMI 2014-05-16 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.69 | 0.00 | 1.40 | -19.55 | 195.30 | -3.18 | 169.90 | 0.2993 | -924.0 | -706.2 | |
| 15.36 | 289.97 | 8.20 | 155.12 | -23.74 | 192.78 | -5.70 | 165.92 | 0.3754 | 1432.2 | 413.8 | |
| 9.97 | -2.00 | 5.33 | -2.00 | -23.74 | 192.44 | -6.04 | 165.14 | 0.3768 | 1408.3 | 999999 | |
| 23.98 | -2.00 | 12.85 | -2.00 | -24.07 | 192.29 | -6.18 | 165.03 | 0.3824 | 1125.0 | 999999 | |
| 1.98 | -2.00 | 1.05 | -2.00 | -23.51 | 192.25 | -6.22 | 164.52 | 0.3740 | 1081.5 | 999999 | |
| 3.95 | -2.00 | 2.12 | -2.00 | -23.87 | 191.84 | -6.64 | 163.83 | 0.3814 | 928.4 | 999999 | |
| 1.44 | -2.00 | 0.77 | -2.00 | -23.90 | 191.43 | -7.04 | 162.94 | 0.3837 | 680.4 | 999999 | |
| 0.00 | 1.35 | 0.00 | 0.72 | -23.51 | 191.02 | -7.45 | 161.66 | 0.3797 | 683.0 | 548.5 | |
| 0.00 | 1.08 | 0.00 | 0.58 | -23.47 | 190.86 | -7.62 | 161.25 | 0.3800 | 679.0 | 475.7 | |
| 0.00 | 1.62 | 0.00 | 0.90 | -27.02 | 185.71 | -12.76 | 154.68 | 0.4621 | -771.0 | -589.8 | |
| 0.00 | 4.40 | 0.00 | 2.46 | -27.28 | 185.65 | -12.83 | 154.84 | 0.4662 | -781.0 | -725.7 | |
| 0.00 | 2.07 | 0.00 | 1.16 | -27.85 | 185.58 | -12.90 | 155.30 | 0.4743 | -778.0 | -626.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -25.33 | 185.73 | -12.75 | 152.85 | 0.4389 | -856.0 | -688.5 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -27.71 | 185.35 | -13.13 | 154.79 | 0.4740 | -901.0 | -661.8 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -25.32 | 185.63 | -12.85 | 152.67 | 0.4397 | -882.0 | -793.7 | |
| 0.00 | 1.35 | 0.00 | 0.75 | -25.65 | 185.21 | -13.27 | 152.32 | 0.4471 | -643.0 | -526.7 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -24.62 | 181.28 | -17.19 | 144.61 | 0.4660 | -699.0 | -583.5 | |
| 0.00 | 1.08 | 0.00 | 0.62 | -26.10 | 178.68 | -19.80 | 142.93 | 0.5067 | -623.0 | -487.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
