SDO HMI 2014-05-16 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.06 | 308.23 | 37.72 | 166.54 | 10.39 | 178.82 | -19.66 | 56.13 | 0.3994 | -111.4 | 53.3 | |
|
previous
or next observation for the same group /

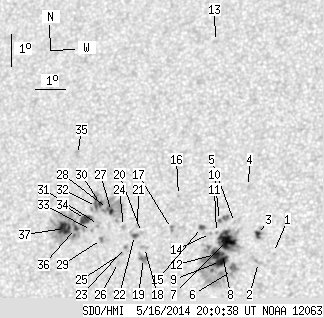

back to the solar disc SDO HMI 2014-05-16 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.33 | 9.71 | 182.64 | -15.84 | 52.04 | 0.3427 | -511.0 | -523.3 | |
| 0.00 | 2.96 | 0.00 | 1.56 | 9.41 | 182.17 | -16.30 | 53.55 | 0.3458 | -738.0 | -597.5 | |
| 2.42 | 6.02 | 1.28 | 3.19 | 10.28 | 182.10 | -16.38 | 51.67 | 0.3552 | -1107.2 | -730.6 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 11.78 | 181.72 | -16.75 | 49.06 | 0.3752 | -783.0 | -711.4 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 10.66 | 181.34 | -17.14 | 52.06 | 0.3688 | -591.0 | -489.2 | |
| 0.00 | 8.89 | 0.00 | 4.71 | 9.17 | 181.35 | -17.13 | 55.42 | 0.3546 | -900.0 | -805.2 | |
| 22.09 | 117.64 | 11.75 | 62.55 | 10.11 | 181.11 | -17.37 | 53.65 | 0.3664 | -1116.6 | -472.4 | |
| 1.08 | -7.00 | 0.57 | -7.00 | 9.67 | 181.00 | -17.47 | 54.79 | 0.3638 | -1231.0 | 999999 | |
| 9.52 | -7.00 | 5.06 | -7.00 | 9.46 | 180.95 | -17.53 | 55.37 | 0.3625 | -1156.7 | 999999 | |
| 0.54 | 5.03 | 0.29 | 2.69 | 10.73 | 180.85 | -17.63 | 52.68 | 0.3758 | -660.2 | -679.9 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 10.36 | 180.77 | -17.70 | 53.61 | 0.3732 | -551.0 | -453.0 | |
| 7.45 | -7.00 | 3.97 | -7.00 | 9.68 | 180.78 | -17.70 | 55.13 | 0.3668 | -1030.0 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.09 | 16.39 | 180.28 | -18.20 | 42.98 | 0.4413 | 651.0 | 513.0 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 10.33 | 180.58 | -17.90 | 53.96 | 0.3755 | -753.0 | -582.9 | |
| 1.35 | 3.59 | 0.72 | 1.92 | 10.52 | 180.28 | -18.20 | 54.00 | 0.3812 | -753.9 | -530.2 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 11.53 | 179.46 | -19.02 | 53.05 | 0.4011 | -750.0 | -547.0 | |
| 0.00 | 2.42 | 0.00 | 1.31 | 10.51 | 179.30 | -19.18 | 55.42 | 0.3939 | -771.0 | -654.6 | |
| 0.00 | 2.96 | 0.00 | 1.60 | 9.93 | 178.46 | -20.02 | 57.77 | 0.4004 | 509.0 | 553.7 | |
| 0.00 | 6.74 | 0.00 | 3.63 | 9.59 | 178.44 | -20.03 | 58.53 | 0.3977 | 392.0 | 354.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 10.40 | 178.33 | -20.15 | 56.94 | 0.4060 | 633.0 | 411.8 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 10.59 | 178.18 | -20.30 | 56.73 | 0.4095 | 808.0 | 543.8 | |
| 1.44 | 3.95 | 0.78 | 2.14 | 10.31 | 178.10 | -20.37 | 57.41 | 0.4083 | 1012.2 | 757.9 | |
| 0.00 | 1.35 | 0.00 | 0.73 | 9.94 | 177.83 | -20.65 | 58.53 | 0.4089 | 937.0 | 774.9 | |
| 0.00 | 2.07 | 0.00 | 1.12 | 10.60 | 177.72 | -20.76 | 57.29 | 0.4158 | 809.0 | 714.9 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 9.76 | 177.71 | -20.77 | 59.06 | 0.4091 | 862.0 | 708.0 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 9.48 | 177.63 | -20.85 | 59.75 | 0.4081 | 798.0 | 643.7 | |
| 1.89 | 46.79 | 1.03 | 25.62 | 11.07 | 177.29 | -21.19 | 56.85 | 0.4254 | 1165.5 | 526.3 | |
| 0.27 | -27.00 | 0.15 | -27.00 | 11.17 | 177.15 | -21.33 | 56.83 | 0.4281 | 1057.7 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 10.20 | 177.02 | -21.46 | 58.94 | 0.4220 | 890.0 | 761.2 | |
| 1.35 | -27.00 | 0.74 | -27.00 | 11.33 | 176.90 | -21.57 | 56.80 | 0.4326 | 781.3 | 999999 | |
| 0.00 | 2.87 | 0.00 | 1.57 | 10.67 | 176.89 | -21.59 | 58.13 | 0.4276 | 846.0 | 733.1 | |
| 0.63 | -27.00 | 0.35 | -27.00 | 11.24 | 176.78 | -21.70 | 57.13 | 0.4336 | 912.0 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.59 | 10.49 | 176.67 | -21.81 | 58.75 | 0.4291 | 875.0 | 721.3 | |
| 6.47 | 75.52 | 3.55 | 41.64 | 10.84 | 176.44 | -22.03 | 58.31 | 0.4348 | 1016.7 | 482.2 | |
| 0.00 | 3.50 | 0.00 | 1.95 | 12.88 | 176.00 | -22.48 | 54.91 | 0.4574 | 688.0 | 610.2 | |
| 1.71 | -34.00 | 0.94 | -34.00 | 10.56 | 176.13 | -22.35 | 59.21 | 0.4369 | 1124.7 | 999999 | |
| 11.85 | -34.00 | 6.54 | -34.00 | 10.57 | 175.76 | -22.71 | 59.60 | 0.4419 | 1002.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
