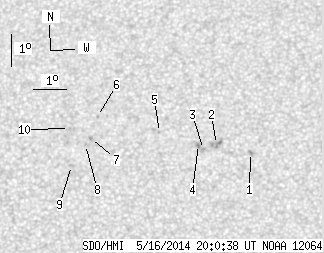

SDO HMI 2014-05-16 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.86 | 0.00 | 10.53 | 8.49 | 196.33 | -2.14 | 10.56 | 0.1978 | -82.1 | -331.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 20:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.25 | 0.00 | 1.13 | 8.24 | 198.82 | 0.35 | 358.16 | 0.1871 | -1193.0 | -831.0 | |
| 0.00 | 6.20 | 0.00 | 3.13 | 8.48 | 197.78 | -0.69 | 3.60 | 0.1917 | -1183.0 | -843.2 | |
| 0.00 | 2.16 | 0.00 | 1.09 | 8.33 | 197.38 | -1.09 | 5.74 | 0.1896 | -984.0 | -754.9 | |
| 0.00 | 2.33 | 0.00 | 1.18 | 8.49 | 197.23 | -1.25 | 6.44 | 0.1926 | -1093.0 | -906.0 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 8.86 | 196.03 | -2.44 | 12.08 | 0.2022 | -776.0 | -576.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 9.36 | 194.12 | -4.35 | 20.04 | 0.2196 | 916.0 | 738.3 | |
| 0.00 | 1.98 | 0.00 | 1.00 | 8.68 | 193.92 | -4.56 | 22.09 | 0.2100 | 952.0 | 667.9 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.50 | 193.76 | -4.71 | 23.10 | 0.2081 | 872.0 | 611.5 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 7.85 | 193.34 | -5.14 | 26.30 | 0.2011 | 1019.0 | 723.0 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 8.99 | 193.27 | -5.21 | 24.27 | 0.2193 | 649.0 | 489.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
