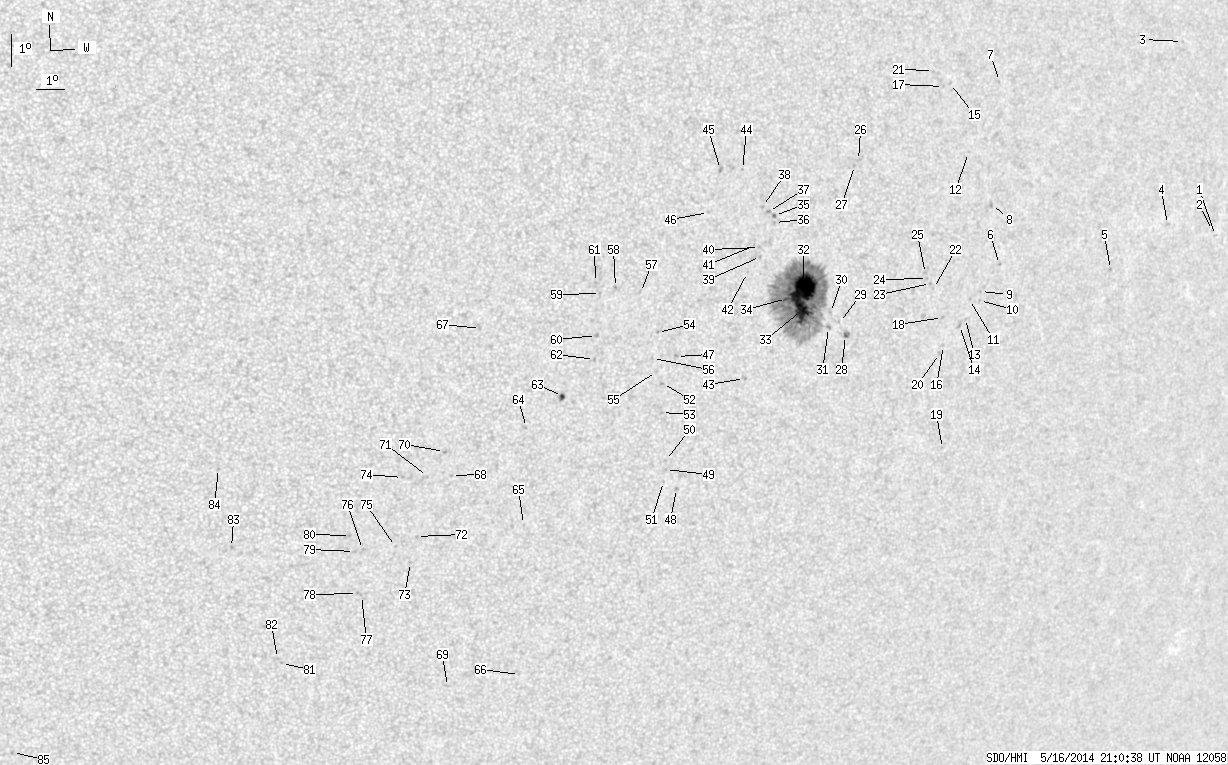

SDO HMI 2014-05-16 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.28 | 436.64 | 44.22 | 260.17 | -14.09 | 229.73 | 31.81 | 247.48 | 0.5561 | 334.6 | 285.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 21:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.89 | -11.48 | 246.73 | 48.81 | 256.96 | 0.7592 | 554.0 | 464.0 | |
| 0.00 | 0.99 | 0.00 | 0.75 | -11.33 | 246.55 | 48.63 | 257.13 | 0.7571 | 616.0 | 518.3 | |
| 0.00 | 0.72 | 0.00 | 0.52 | -5.62 | 244.26 | 46.34 | 264.60 | 0.7255 | 476.0 | 432.4 | |
| 0.00 | 1.35 | 0.00 | 0.98 | -11.21 | 244.46 | 46.53 | 256.96 | 0.7331 | 514.0 | 435.7 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -12.66 | 242.24 | 44.32 | 254.53 | 0.7096 | 691.0 | 601.8 | |
| 0.00 | 1.17 | 0.00 | 0.76 | -12.64 | 237.58 | 39.66 | 253.38 | 0.6522 | 696.0 | 569.6 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -7.05 | 236.79 | 38.87 | 261.86 | 0.6314 | 693.0 | 467.7 | |
| 0.00 | 2.16 | 0.00 | 1.39 | -10.81 | 236.95 | 39.02 | 256.00 | 0.6397 | 586.0 | 510.4 | |
| 0.00 | 0.81 | 0.00 | 0.52 | -13.49 | 236.97 | 39.05 | 251.90 | 0.6468 | 640.0 | 574.9 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -13.77 | 236.99 | 39.06 | 251.49 | 0.6478 | 432.0 | 389.3 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -13.75 | 236.58 | 38.66 | 251.38 | 0.6426 | 521.0 | 458.2 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -9.24 | 235.82 | 37.90 | 258.20 | 0.6216 | 551.0 | 486.8 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -14.34 | 236.54 | 38.62 | 250.47 | 0.6438 | 363.0 | 394.5 | |
| 0.00 | 3.32 | 0.00 | 2.14 | -14.56 | 236.34 | 38.42 | 250.06 | 0.6421 | 583.0 | 557.8 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -7.16 | 234.90 | 36.98 | 261.42 | 0.6058 | 631.0 | 548.1 | |
| 0.00 | 1.26 | 0.00 | 0.81 | -15.19 | 235.84 | 37.91 | 248.90 | 0.6378 | 600.0 | 376.8 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -7.26 | 234.64 | 36.72 | 261.21 | 0.6023 | 603.0 | 557.1 | |
| 0.00 | 0.99 | 0.00 | 0.63 | -14.33 | 235.62 | 37.70 | 250.15 | 0.6322 | 793.0 | 669.7 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -18.41 | 236.56 | 38.64 | 244.44 | 0.6590 | 573.0 | 508.2 | |
| 0.00 | 1.17 | 0.00 | 0.75 | -15.45 | 235.73 | 37.81 | 248.48 | 0.6374 | 574.0 | 401.8 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -6.78 | 234.22 | 36.29 | 261.95 | 0.5958 | 674.0 | 595.0 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -13.44 | 235.10 | 37.17 | 251.33 | 0.6226 | 751.0 | 619.0 | |
| 0.00 | 0.72 | 0.00 | 0.45 | -13.29 | 234.95 | 37.03 | 251.52 | 0.6202 | 693.0 | 567.6 | |
| 0.00 | 1.08 | 0.00 | 0.68 | -13.14 | 234.81 | 36.89 | 251.70 | 0.6179 | 743.0 | 623.2 | |
| 0.00 | 1.53 | 0.00 | 0.96 | -12.99 | 234.70 | 36.78 | 251.91 | 0.6160 | 702.0 | 560.7 | |
| 0.00 | 1.62 | 0.00 | 0.97 | -9.59 | 231.68 | 33.76 | 256.58 | 0.5655 | -720.0 | -594.1 | |
| 0.00 | 1.17 | 0.00 | 0.70 | -9.74 | 231.55 | 33.63 | 256.27 | 0.5641 | -743.0 | -606.3 | |
| 1.08 | 3.59 | 0.66 | 2.20 | -14.97 | 231.98 | 34.06 | 247.57 | 0.5875 | -814.2 | -656.0 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -14.58 | 231.68 | 33.76 | 248.08 | 0.5820 | 254.0 | 109.9 | |
| 0.00 | 0.99 | 0.00 | 0.60 | -14.27 | 231.29 | 33.37 | 248.39 | 0.5755 | 377.0 | 156.6 | |
| 0.00 | 1.98 | 0.00 | 1.20 | -14.74 | 231.30 | 33.37 | 247.62 | 0.5775 | 671.0 | 460.8 | |
| 47.69 | 337.68 | 28.41 | 201.26 | -13.56 | 230.17 | 32.25 | 249.07 | 0.5576 | 1243.2 | 410.0 | |
| 21.64 | -32.00 | 12.93 | -32.00 | -14.24 | 230.21 | 32.28 | 247.91 | 0.5608 | 991.0 | 999999 | |
| 1.26 | -32.00 | 0.75 | -32.00 | -13.88 | 229.60 | 31.67 | 248.22 | 0.5511 | 1002.6 | 999999 | |
| 0.54 | 1.62 | 0.31 | 0.94 | -11.33 | 228.82 | 30.89 | 252.39 | 0.5303 | -713.0 | -634.2 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -11.55 | 228.84 | 30.92 | 252.01 | 0.5314 | -652.0 | -540.8 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -11.22 | 228.59 | 30.66 | 252.51 | 0.5266 | -781.0 | -602.6 | |
| 0.00 | 1.44 | 0.00 | 0.83 | -11.07 | 228.35 | 30.43 | 252.68 | 0.5227 | -833.0 | -624.9 | |
| 0.00 | 1.35 | 0.00 | 0.79 | -12.60 | 228.47 | 30.55 | 249.90 | 0.5302 | 805.0 | 645.7 | |
| 0.00 | 1.35 | 0.00 | 0.78 | -12.33 | 228.40 | 30.48 | 250.37 | 0.5281 | -510.0 | -351.8 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -12.27 | 228.21 | 30.29 | 250.38 | 0.5252 | -612.0 | -500.1 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -13.10 | 228.07 | 30.14 | 248.78 | 0.5267 | 612.0 | 509.8 | |
| 0.00 | 1.89 | 0.00 | 1.12 | -16.39 | 228.46 | 30.54 | 243.22 | 0.5482 | 469.0 | 365.8 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -9.95 | 227.52 | 29.60 | 254.45 | 0.5070 | -666.0 | -552.2 | |
| 0.00 | 2.60 | 0.00 | 1.48 | -9.97 | 226.75 | 28.82 | 254.09 | 0.4958 | -858.0 | -693.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -11.29 | 226.46 | 28.54 | 251.35 | 0.4964 | -671.0 | -504.4 | |
| 0.00 | 1.62 | 0.00 | 0.93 | -15.75 | 225.90 | 27.98 | 242.57 | 0.5107 | -584.0 | -495.3 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -19.90 | 226.61 | 28.69 | 236.03 | 0.5464 | 735.0 | 564.5 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -19.30 | 226.10 | 28.17 | 236.57 | 0.5360 | 660.0 | 592.0 | |
| 0.00 | 1.35 | 0.00 | 0.79 | -19.02 | 226.04 | 28.12 | 237.00 | 0.5334 | 664.0 | 434.0 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -19.68 | 226.10 | 28.17 | 235.95 | 0.5386 | 618.0 | 531.0 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -16.60 | 225.53 | 27.60 | 240.76 | 0.5109 | -776.0 | -639.4 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -17.51 | 225.64 | 27.71 | 239.24 | 0.5181 | -468.0 | -425.4 | |
| 0.00 | 1.17 | 0.00 | 0.67 | -15.02 | 225.12 | 27.20 | 243.34 | 0.4959 | -710.0 | -619.1 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -16.23 | 225.26 | 27.33 | 241.21 | 0.5050 | -677.0 | -566.5 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -15.83 | 225.06 | 27.13 | 241.79 | 0.4999 | -763.0 | -569.5 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -13.79 | 224.36 | 26.44 | 245.14 | 0.4785 | -654.0 | -525.6 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -13.65 | 223.48 | 25.56 | 244.75 | 0.4654 | -709.0 | -623.3 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -13.85 | 222.98 | 25.06 | 243.96 | 0.4596 | -788.0 | -630.1 | |
| 0.00 | 2.07 | 0.00 | 1.16 | -15.15 | 223.00 | 25.08 | 241.39 | 0.4679 | -775.0 | -614.0 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -13.51 | 222.77 | 24.85 | 244.48 | 0.4546 | -831.0 | -697.8 | |
| 0.00 | 1.08 | 0.00 | 0.61 | -15.90 | 223.03 | 25.10 | 239.98 | 0.4732 | -734.0 | -669.1 | |
| 2.07 | 3.95 | 1.16 | 2.21 | -17.07 | 222.07 | 24.15 | 236.86 | 0.4690 | 801.4 | 615.7 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -18.06 | 220.96 | 23.04 | 233.85 | 0.4626 | -623.0 | -533.3 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -21.14 | 221.32 | 23.40 | 228.90 | 0.4935 | -385.0 | -426.0 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -26.01 | 222.11 | 24.19 | 222.46 | 0.5476 | 557.0 | 543.3 | |
| 0.00 | 1.17 | 0.00 | 0.63 | -14.99 | 219.02 | 21.10 | 237.76 | 0.4128 | -875.0 | -708.6 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -19.61 | 218.58 | 20.66 | 228.20 | 0.4476 | -564.0 | -455.3 | |
| 0.00 | 1.26 | 0.00 | 0.73 | -26.45 | 219.56 | 21.64 | 218.92 | 0.5275 | 695.0 | 517.6 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -18.86 | 218.24 | 20.32 | 229.13 | 0.4364 | -737.0 | -746.6 | |
| 0.00 | 1.08 | 0.00 | 0.59 | -19.66 | 217.76 | 19.84 | 227.04 | 0.4385 | -797.0 | -696.4 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -21.57 | 217.64 | 19.72 | 223.61 | 0.4567 | -543.0 | -540.8 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -22.41 | 217.55 | 19.63 | 222.15 | 0.4647 | -675.0 | -463.5 | |
| 0.00 | 1.26 | 0.00 | 0.69 | -19.70 | 216.91 | 18.99 | 225.78 | 0.4292 | -811.0 | -594.9 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -21.90 | 216.96 | 19.04 | 222.13 | 0.4530 | -560.0 | -408.4 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -22.01 | 215.84 | 17.91 | 220.31 | 0.4426 | -744.0 | -600.6 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -23.50 | 216.00 | 18.08 | 218.29 | 0.4612 | -641.0 | -477.1 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -23.44 | 215.86 | 17.93 | 218.17 | 0.4590 | -650.0 | -469.8 | |
| 0.00 | 1.53 | 0.00 | 0.84 | -22.08 | 215.57 | 17.65 | 219.80 | 0.4407 | -853.0 | -636.7 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -21.57 | 215.37 | 17.45 | 220.30 | 0.4328 | -846.0 | -674.2 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -25.76 | 213.53 | 15.60 | 211.43 | 0.4665 | -631.0 | -542.2 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -25.59 | 213.36 | 15.44 | 211.38 | 0.4631 | -680.0 | -550.4 | |
| 0.00 | 1.35 | 0.00 | 0.73 | -21.99 | 211.38 | 13.46 | 212.80 | 0.4002 | -821.0 | -673.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -19.48 | 210.73 | 12.81 | 215.49 | 0.3616 | -728.0 | -605.6 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -28.79 | 204.47 | 6.55 | 192.70 | 0.4563 | -476.0 | -443.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
