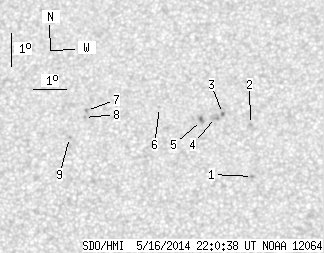

SDO HMI 2014-05-16 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.28 | 0.00 | 7.72 | 8.34 | 196.85 | -0.52 | 2.43 | 0.1916 | -293.1 | -434.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.17 | 0.00 | 0.59 | 6.68 | 198.93 | 1.56 | 350.35 | 0.1622 | -940.0 | -778.5 | |
| 0.00 | 1.17 | 0.00 | 0.59 | 8.28 | 198.88 | 1.51 | 352.06 | 0.1894 | -1022.0 | -810.1 | |
| 0.00 | 1.35 | 0.00 | 0.68 | 8.62 | 198.02 | 0.65 | 356.66 | 0.1937 | -910.0 | -809.2 | |
| 0.00 | 4.13 | 0.00 | 2.09 | 8.49 | 197.81 | 0.44 | 357.73 | 0.1914 | -926.0 | -829.0 | |
| 0.00 | 2.96 | 0.00 | 1.50 | 8.40 | 197.38 | 0.01 | 359.96 | 0.1897 | -1104.0 | -899.2 | |
| 0.00 | 0.90 | 0.00 | 0.45 | 8.80 | 196.09 | -1.28 | 6.43 | 0.1979 | -638.0 | -494.8 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 8.72 | 193.85 | -3.52 | 17.35 | 0.2044 | 1023.0 | 817.2 | |
| 0.00 | 1.26 | 0.00 | 0.64 | 8.50 | 193.79 | -3.58 | 17.95 | 0.2012 | 900.0 | 712.5 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 7.89 | 193.33 | -4.03 | 21.17 | 0.1938 | 979.0 | 867.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
