SDO HMI 2014-05-16 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.43 | 47.92 | 8.62 | 40.23 | -18.21 | 145.00 | -52.37 | 111.03 | 0.8044 | 176.2 | 54.6 | |
|
previous
or next observation for the same group /

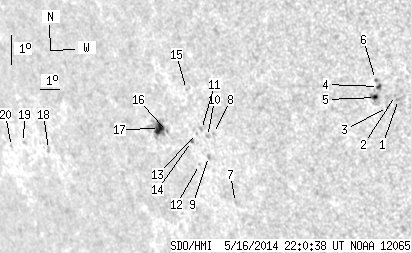

back to the solar disc SDO HMI 2014-05-16 22:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 1.06 | -17.61 | 154.84 | -42.53 | 112.88 | 0.7015 | -255.0 | -243.2 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -17.48 | 154.75 | -42.62 | 112.66 | 0.7022 | -205.0 | -181.3 | |
| 0.00 | 0.99 | 0.00 | 0.69 | -17.85 | 154.29 | -43.08 | 113.01 | 0.7086 | -557.0 | -457.8 | |
| 1.08 | 2.25 | 0.75 | 1.57 | -17.18 | 154.10 | -43.27 | 112.03 | 0.7087 | -770.9 | -637.4 | |
| 1.62 | 4.58 | 1.14 | 3.23 | -17.52 | 153.87 | -43.50 | 112.41 | 0.7124 | -815.3 | -567.8 | |
| 0.00 | 0.81 | 0.00 | 0.57 | -16.96 | 154.03 | -43.34 | 111.70 | 0.7088 | -559.0 | -474.8 | |
| 0.00 | 1.17 | 0.00 | 0.97 | -20.62 | 146.01 | -51.35 | 114.06 | 0.8028 | 110.0 | 141.2 | |
| 0.00 | 0.81 | 0.00 | 0.66 | -18.41 | 145.87 | -51.50 | 111.32 | 0.7994 | 607.0 | 554.7 | |
| 0.00 | 2.34 | 0.00 | 1.95 | -19.12 | 145.29 | -52.07 | 112.06 | 0.8064 | 604.0 | 480.2 | |
| 0.00 | 1.89 | 0.00 | 1.56 | -18.49 | 145.52 | -51.85 | 111.34 | 0.8029 | 662.0 | 561.9 | |
| 0.00 | 1.89 | 0.00 | 1.57 | -18.26 | 145.30 | -52.06 | 111.01 | 0.8045 | 574.0 | 422.1 | |
| 0.00 | 0.63 | 0.00 | 0.53 | -19.35 | 144.71 | -52.66 | 112.21 | 0.8124 | 303.0 | 230.3 | |
| 0.00 | 0.99 | 0.00 | 0.83 | -18.38 | 144.99 | -52.38 | 111.09 | 0.8078 | 400.0 | 301.2 | |
| 0.36 | 1.62 | 0.30 | 1.36 | -18.62 | 144.62 | -52.75 | 111.30 | 0.8118 | 278.2 | 198.1 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -16.99 | 145.05 | -52.32 | 109.40 | 0.8047 | 517.0 | 514.7 | |
| 0.00 | 0.99 | 0.00 | 0.85 | -18.26 | 143.49 | -53.88 | 110.63 | 0.8218 | 460.0 | 387.4 | |
| 7.37 | 20.39 | 6.43 | 17.85 | -18.15 | 143.10 | -54.27 | 110.42 | 0.8252 | 632.9 | 158.0 | |
| 0.00 | 2.25 | 0.00 | 2.37 | -18.57 | 136.19 | -61.18 | 109.76 | 0.8844 | -467.0 | -374.5 | |
| 0.00 | 0.99 | 0.00 | 1.09 | -18.29 | 134.65 | -62.72 | 109.25 | 0.8957 | -379.0 | -347.5 | |
| 0.00 | 0.54 | 0.00 | 0.61 | -18.39 | 133.73 | -63.64 | 109.24 | 0.9024 | -223.0 | -234.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
