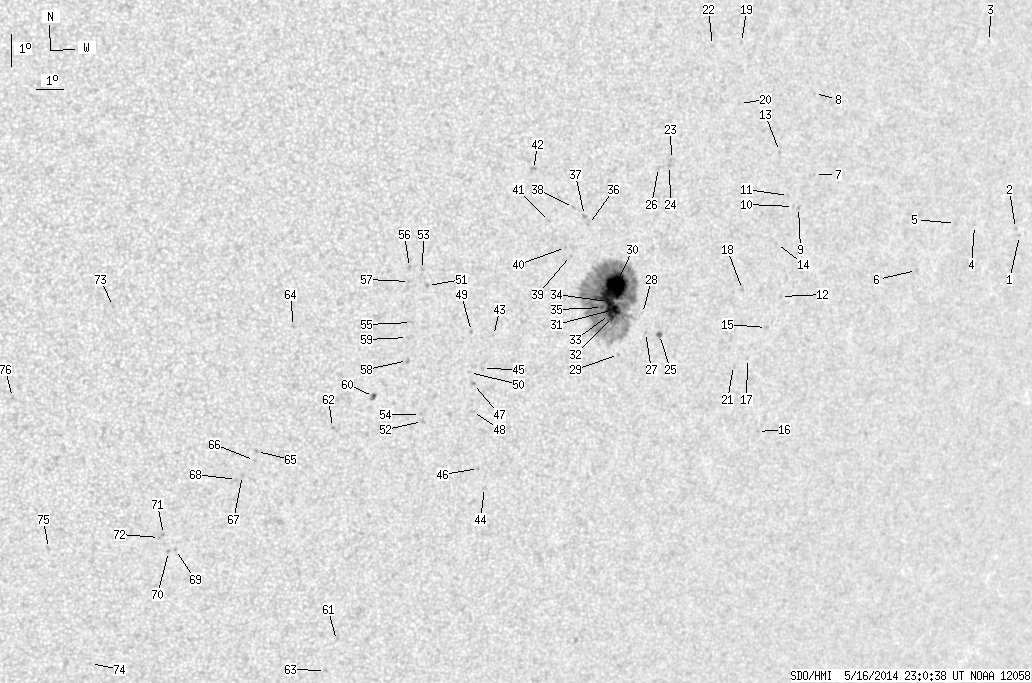

SDO HMI 2014-05-16 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.97 | 425.04 | 38.58 | 256.03 | -13.98 | 229.69 | 32.88 | 248.23 | 0.5693 | 276.2 | 301.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-16 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.84 | -11.47 | 246.72 | 49.91 | 257.12 | 0.7714 | 539.0 | 448.2 | |
| 0.00 | 1.44 | 0.00 | 1.11 | -11.27 | 246.48 | 49.67 | 257.36 | 0.7685 | 648.0 | 554.6 | |
| 0.00 | 0.81 | 0.00 | 0.59 | -5.61 | 244.32 | 47.51 | 264.66 | 0.7394 | 468.0 | 336.7 | |
| 0.00 | 0.36 | 0.00 | 0.27 | -11.23 | 244.55 | 47.73 | 257.11 | 0.7469 | 620.0 | 545.5 | |
| 0.00 | 1.17 | 0.00 | 0.85 | -11.20 | 243.67 | 46.85 | 257.02 | 0.7368 | 313.0 | 328.1 | |
| 0.00 | 1.26 | 0.00 | 0.90 | -12.69 | 242.24 | 45.43 | 254.72 | 0.7228 | 681.0 | 643.4 | |
| 0.00 | 0.99 | 0.00 | 0.65 | -9.87 | 237.39 | 40.58 | 257.77 | 0.6580 | 647.0 | 518.5 | |
| 0.00 | 0.81 | 0.00 | 0.53 | -7.41 | 237.08 | 40.26 | 261.48 | 0.6503 | 466.0 | 391.8 | |
| 0.00 | 1.26 | 0.00 | 0.82 | -10.90 | 236.90 | 40.09 | 256.11 | 0.6537 | 637.0 | 559.4 | |
| 0.00 | 1.08 | 0.00 | 0.70 | -10.87 | 236.70 | 39.88 | 256.10 | 0.6510 | 594.0 | 414.9 | |
| 0.00 | 0.90 | 0.00 | 0.58 | -10.54 | 236.44 | 39.63 | 256.55 | 0.6470 | 585.0 | 495.0 | |
| 0.00 | 1.17 | 0.00 | 0.77 | -13.65 | 236.67 | 39.86 | 251.91 | 0.6575 | 372.0 | 350.2 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -9.21 | 235.90 | 39.08 | 258.49 | 0.6373 | 552.0 | 480.2 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -12.02 | 236.20 | 39.39 | 254.22 | 0.6473 | 559.0 | 406.1 | |
| 0.00 | 1.44 | 0.00 | 0.94 | -14.62 | 236.30 | 39.49 | 250.34 | 0.6557 | 609.0 | 475.4 | |
| 0.00 | 1.35 | 0.00 | 0.90 | -17.87 | 236.72 | 39.90 | 245.76 | 0.6719 | 62.0 | 150.3 | |
| 0.00 | 0.99 | 0.00 | 0.64 | -15.60 | 235.75 | 38.93 | 248.68 | 0.6520 | 534.0 | 432.2 | |
| 0.00 | 1.08 | 0.00 | 0.69 | -13.47 | 235.11 | 38.29 | 251.66 | 0.6371 | 711.0 | 621.7 | |
| 0.00 | 1.08 | 0.00 | 0.67 | -5.93 | 234.07 | 37.26 | 263.47 | 0.6084 | 492.0 | 436.1 | |
| 0.00 | 0.90 | 0.00 | 0.56 | -7.79 | 234.16 | 37.35 | 260.44 | 0.6118 | 638.0 | 515.6 | |
| 0.00 | 0.54 | 0.00 | 0.35 | -15.83 | 235.23 | 38.42 | 248.13 | 0.6465 | 473.0 | 455.7 | |
| 0.00 | 1.44 | 0.00 | 0.88 | -6.05 | 232.98 | 36.16 | 263.14 | 0.5932 | 565.0 | 495.9 | |
| 0.00 | 0.72 | 0.00 | 0.44 | -9.55 | 231.77 | 34.96 | 256.96 | 0.5821 | -698.0 | -578.0 | |
| 0.00 | 1.53 | 0.00 | 0.93 | -9.74 | 231.72 | 34.90 | 256.63 | 0.5818 | -720.0 | -598.7 | |
| 1.44 | 3.05 | 0.89 | 1.89 | -14.94 | 232.13 | 35.32 | 248.20 | 0.6039 | -750.6 | -611.7 | |
| 0.00 | 1.98 | 0.00 | 1.20 | -9.81 | 231.31 | 34.50 | 256.40 | 0.5764 | -583.0 | -445.0 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -14.89 | 231.59 | 34.77 | 248.03 | 0.5966 | 530.0 | 421.1 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -14.31 | 231.37 | 34.55 | 248.88 | 0.5914 | 420.0 | 324.4 | |
| 0.00 | 1.08 | 0.00 | 0.66 | -15.60 | 230.69 | 33.87 | 246.45 | 0.5878 | -417.0 | -349.8 | |
| 36.38 | 334.25 | 21.95 | 201.61 | -13.53 | 230.18 | 33.37 | 249.63 | 0.5726 | 1198.8 | 445.2 | |
| 10.15 | -30.00 | 6.14 | -30.00 | -14.21 | 230.25 | 33.44 | 248.52 | 0.5762 | 921.6 | 999999 | |
| 2.25 | -30.00 | 1.36 | -30.00 | -14.42 | 230.25 | 33.44 | 248.16 | 0.5771 | 904.8 | 999999 | |
| 1.89 | -30.00 | 1.14 | -30.00 | -14.36 | 230.13 | 33.32 | 248.20 | 0.5752 | 1012.6 | 999999 | |
| 9.52 | -30.00 | 5.74 | -30.00 | -13.96 | 229.99 | 33.18 | 248.80 | 0.5717 | 1045.1 | 999999 | |
| 1.17 | -30.00 | 0.70 | -30.00 | -14.15 | 229.83 | 33.02 | 248.41 | 0.5704 | 975.8 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -11.61 | 228.95 | 32.13 | 252.41 | 0.5487 | -558.0 | -467.9 | |
| 0.00 | 2.07 | 0.00 | 1.22 | -11.34 | 228.77 | 31.95 | 252.82 | 0.5452 | -751.0 | -607.1 | |
| 0.00 | 1.53 | 0.00 | 0.90 | -11.10 | 228.34 | 31.52 | 253.07 | 0.5384 | -811.0 | -658.4 | |
| 0.00 | 1.08 | 0.00 | 0.64 | -12.58 | 228.42 | 31.60 | 250.45 | 0.5448 | 637.0 | 559.6 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -12.33 | 228.20 | 31.39 | 250.78 | 0.5409 | -352.0 | -374.4 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -11.55 | 227.52 | 30.71 | 251.90 | 0.5284 | -638.0 | -514.4 | |
| 0.00 | 2.52 | 0.00 | 1.45 | -9.97 | 226.77 | 29.96 | 254.54 | 0.5124 | -746.0 | -690.5 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -15.10 | 225.99 | 29.17 | 244.56 | 0.5232 | -631.0 | -517.8 | |
| 0.00 | 1.62 | 0.00 | 0.96 | -19.87 | 226.50 | 29.69 | 236.84 | 0.5585 | 604.0 | 551.1 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -16.14 | 225.75 | 28.94 | 242.56 | 0.5257 | -445.0 | -305.2 | |
| 0.00 | 1.17 | 0.00 | 0.69 | -19.28 | 226.16 | 29.35 | 237.54 | 0.5504 | 733.0 | 605.5 | |
| 0.00 | 1.71 | 0.00 | 0.99 | -16.61 | 225.50 | 28.69 | 241.55 | 0.5252 | -684.0 | -479.1 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -17.49 | 225.61 | 28.80 | 240.11 | 0.5320 | -694.0 | -540.3 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -14.99 | 225.18 | 28.37 | 244.22 | 0.5117 | -799.0 | -634.3 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -16.27 | 225.30 | 28.49 | 242.01 | 0.5206 | -659.0 | -441.9 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -13.60 | 223.44 | 26.63 | 245.63 | 0.4802 | -698.0 | -604.1 | |
| 0.00 | 2.34 | 0.00 | 1.35 | -17.83 | 223.87 | 27.05 | 238.12 | 0.5119 | -725.0 | -523.8 | |
| 0.00 | 1.44 | 0.00 | 0.81 | -13.11 | 223.21 | 26.40 | 246.44 | 0.4743 | -598.0 | -520.2 | |
| 0.00 | 1.26 | 0.00 | 0.72 | -17.62 | 223.76 | 26.95 | 238.41 | 0.5091 | -773.0 | -643.0 | |
| 0.00 | 1.89 | 0.00 | 1.06 | -14.75 | 223.03 | 26.22 | 243.08 | 0.4810 | -741.0 | -640.1 | |
| 0.00 | 1.71 | 0.00 | 0.96 | -13.06 | 222.76 | 25.94 | 246.22 | 0.4676 | -947.0 | -693.2 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -13.49 | 222.80 | 25.99 | 245.39 | 0.4706 | -774.0 | -630.1 | |
| 0.00 | 2.25 | 0.00 | 1.27 | -15.94 | 223.05 | 26.23 | 240.86 | 0.4886 | -749.0 | -597.8 | |
| 0.00 | 1.26 | 0.00 | 0.71 | -15.22 | 222.95 | 26.14 | 242.13 | 0.4828 | -521.0 | -444.7 | |
| 1.17 | 3.23 | 0.66 | 1.83 | -17.08 | 222.02 | 25.20 | 237.83 | 0.4828 | 769.0 | 599.0 | |
| 0.00 | 0.99 | 0.00 | 0.58 | -24.90 | 222.10 | 25.28 | 225.16 | 0.5484 | 458.0 | 467.5 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -18.08 | 220.72 | 23.91 | 234.74 | 0.4738 | -671.0 | -613.5 | |
| 0.00 | 1.62 | 0.00 | 0.96 | -25.89 | 221.91 | 25.09 | 223.57 | 0.5557 | 680.0 | 514.9 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -14.94 | 218.99 | 22.18 | 239.03 | 0.4271 | -747.0 | -536.2 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -18.87 | 218.20 | 21.39 | 230.44 | 0.4494 | -855.0 | -723.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -19.16 | 218.17 | 21.36 | 229.89 | 0.4516 | -810.0 | -629.5 | |
| 0.00 | 1.26 | 0.00 | 0.70 | -19.64 | 217.82 | 21.01 | 228.60 | 0.4520 | -903.0 | -650.9 | |
| 0.00 | 1.08 | 0.00 | 0.60 | -19.77 | 217.63 | 20.82 | 228.13 | 0.4510 | -619.0 | -532.2 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -22.03 | 215.84 | 19.02 | 221.90 | 0.4543 | -752.0 | -652.7 | |
| 0.00 | 1.17 | 0.00 | 0.65 | -22.10 | 215.60 | 18.79 | 221.46 | 0.4527 | -790.0 | -629.8 | |
| 0.00 | 1.35 | 0.00 | 0.74 | -21.55 | 215.36 | 18.54 | 221.97 | 0.4442 | -793.0 | -670.9 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -21.65 | 215.23 | 18.42 | 221.63 | 0.4439 | -750.0 | -626.9 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -14.40 | 212.97 | 16.15 | 232.31 | 0.3420 | -770.0 | -655.8 | |
| 0.00 | 1.17 | 0.00 | 0.66 | -25.77 | 213.40 | 16.59 | 212.92 | 0.4750 | -616.0 | -496.8 | |
| 0.00 | 2.16 | 0.00 | 1.17 | -22.04 | 211.50 | 14.68 | 214.95 | 0.4119 | -770.0 | -613.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | -17.26 | 209.88 | 13.07 | 220.13 | 0.3366 | -714.0 | -556.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
