SDO HMI 2014-05-16 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.92 | 0.00 | 5.04 | -21.19 | 161.83 | -34.99 | 121.26 | 0.6304 | -572.3 | -524.9 | |
|
previous
or next observation for the same group /

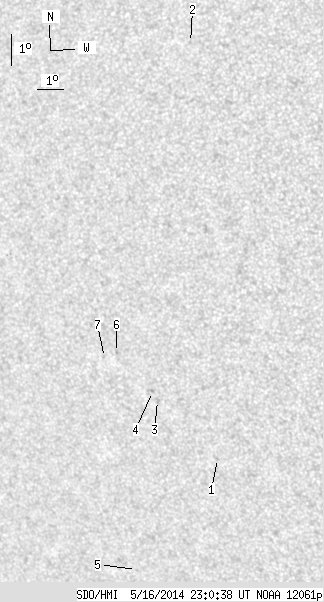

back to the solar disc SDO HMI 2014-05-16 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.35 | 0.00 | 0.85 | -23.62 | 163.53 | -33.29 | 126.14 | 0.6249 | -601.0 | -545.5 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -10.56 | 165.11 | -31.71 | 105.88 | 0.5393 | -430.0 | -459.8 | |
| 0.00 | 2.43 | 0.00 | 1.55 | -21.70 | 161.69 | -35.12 | 122.19 | 0.6339 | -644.0 | -557.2 | |
| 0.00 | 1.26 | 0.00 | 0.80 | -21.41 | 161.57 | -35.24 | 121.70 | 0.6336 | -856.0 | -678.8 | |
| 0.00 | 0.81 | 0.00 | 0.56 | -27.18 | 158.96 | -37.86 | 127.97 | 0.6948 | -351.0 | -326.4 | |
| 0.00 | 0.72 | 0.00 | 0.46 | -20.13 | 160.48 | -36.33 | 119.22 | 0.6396 | -785.0 | -613.0 | |
| 0.00 | 0.45 | 0.00 | 0.29 | -20.27 | 159.96 | -36.85 | 119.14 | 0.6464 | -339.0 | -224.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
