SDO HMI 2014-05-16 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.23 | 272.86 | 35.25 | 145.77 | 10.31 | 178.96 | -17.85 | 53.75 | 0.3747 | -98.4 | 75.0 | |
|
previous
or next observation for the same group /

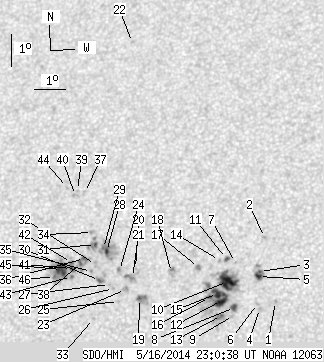

back to the solar disc SDO HMI 2014-05-16 23:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.26 | 0.00 | 0.66 | 9.46 | 182.71 | -14.11 | 49.47 | 0.3177 | -834.0 | -656.6 | |
| 0.00 | 1.62 | 0.00 | 0.85 | 11.45 | 182.26 | -14.55 | 45.81 | 0.3449 | 812.0 | 576.5 | |
| 0.63 | 12.31 | 0.33 | 6.47 | 10.39 | 182.16 | -14.66 | 48.34 | 0.3346 | -910.0 | -667.5 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 9.25 | 182.21 | -14.61 | 50.96 | 0.3219 | -933.0 | -775.1 | |
| 2.96 | -3.00 | 1.56 | -3.00 | 10.24 | 182.13 | -14.68 | 48.74 | 0.3332 | -1132.8 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 9.40 | 182.14 | -14.68 | 50.71 | 0.3244 | -787.0 | -638.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 10.68 | 181.38 | -15.44 | 49.15 | 0.3473 | -588.0 | -490.3 | |
| 2.87 | 4.31 | 1.51 | 2.26 | 9.29 | 181.41 | -15.40 | 52.33 | 0.3326 | -1136.1 | -935.5 | |
| 0.00 | 1.98 | 0.00 | 1.04 | 9.04 | 181.39 | -15.43 | 52.97 | 0.3305 | -617.0 | -551.9 | |
| 17.61 | 89.11 | 9.28 | 46.99 | 10.10 | 181.15 | -15.67 | 50.88 | 0.3441 | -1151.1 | -541.3 | |
| 1.17 | 2.43 | 0.62 | 1.28 | 10.81 | 181.08 | -15.73 | 49.39 | 0.3523 | -844.1 | -719.1 | |
| 10.51 | -10.00 | 5.53 | -10.00 | 9.51 | 180.98 | -15.83 | 52.54 | 0.3404 | -1175.1 | 999999 | |
| 0.63 | 13.20 | 0.33 | 6.94 | 9.05 | 181.01 | -15.81 | 53.62 | 0.3356 | -1153.4 | -604.1 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 10.75 | 180.86 | -15.96 | 49.92 | 0.3545 | -644.0 | -448.8 | |
| 6.38 | -10.00 | 3.36 | -10.00 | 9.73 | 180.85 | -15.97 | 52.26 | 0.3443 | -1062.4 | 999999 | |
| 1.35 | -10.00 | 0.71 | -10.00 | 9.61 | 180.60 | -16.22 | 52.97 | 0.3464 | -643.9 | 999999 | |
| 0.00 | 3.32 | 0.00 | 1.76 | 10.55 | 180.20 | -16.62 | 51.51 | 0.3608 | -811.0 | -660.5 | |
| 0.00 | 5.93 | 0.00 | 3.16 | 10.40 | 179.33 | -17.48 | 53.21 | 0.3705 | -540.0 | -592.5 | |
| 1.53 | 9.52 | 0.82 | 5.08 | 9.61 | 178.34 | -18.47 | 56.44 | 0.3765 | 746.8 | 148.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 10.54 | 178.16 | -18.66 | 54.65 | 0.3873 | -417.0 | -182.8 | |
| 0.00 | 8.35 | 0.00 | 4.48 | 10.27 | 178.08 | -18.74 | 55.36 | 0.3858 | 823.0 | 687.5 | |
| 0.00 | 1.26 | 0.00 | 0.70 | 17.71 | 177.44 | -19.37 | 42.68 | 0.4681 | 438.0 | 459.4 | |
| 0.00 | 3.41 | 0.00 | 1.83 | 9.90 | 177.87 | -18.94 | 56.46 | 0.3853 | 948.0 | 813.1 | |
| 0.00 | 2.25 | 0.00 | 1.21 | 10.49 | 177.64 | -19.18 | 55.49 | 0.3936 | 929.0 | 785.3 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 9.53 | 177.66 | -19.15 | 57.56 | 0.3850 | 957.0 | 736.7 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 9.93 | 177.48 | -19.34 | 56.91 | 0.3910 | 756.0 | 601.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 10.06 | 177.34 | -19.48 | 56.82 | 0.3939 | 758.0 | 586.8 | |
| 1.62 | 34.94 | 0.88 | 18.94 | 11.09 | 177.17 | -19.64 | 54.86 | 0.4051 | 1194.9 | 673.4 | |
| 0.27 | -28.00 | 0.15 | -28.00 | 11.18 | 177.07 | -19.75 | 54.81 | 0.4073 | 989.0 | 999999 | |
| 1.08 | 7.28 | 0.58 | 3.93 | 10.19 | 177.00 | -19.81 | 56.98 | 0.3995 | 988.1 | 759.9 | |
| 1.26 | -28.00 | 0.68 | -28.00 | 11.31 | 176.80 | -20.02 | 54.91 | 0.4120 | 924.8 | 999999 | |
| 0.00 | 2.52 | 0.00 | 1.36 | 10.69 | 176.84 | -19.98 | 56.14 | 0.4060 | 681.0 | 706.9 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 9.01 | 176.88 | -19.94 | 59.71 | 0.3917 | 755.0 | 611.7 | |
| 0.00 | 2.16 | 0.00 | 1.17 | 11.69 | 176.67 | -20.15 | 54.32 | 0.4170 | 621.0 | 503.2 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 10.47 | 176.72 | -20.09 | 56.74 | 0.4057 | 835.0 | 710.4 | |
| 1.44 | 47.70 | 0.78 | 25.99 | 10.88 | 176.46 | -20.35 | 56.22 | 0.4126 | 892.2 | 627.1 | |
| 0.00 | 1.89 | 0.00 | 1.04 | 12.95 | 176.30 | -20.51 | 52.36 | 0.4330 | 525.0 | 500.1 | |
| 1.26 | -36.00 | 0.68 | -36.00 | 10.73 | 176.34 | -20.47 | 56.69 | 0.4129 | 1096.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 13.02 | 176.06 | -20.75 | 52.54 | 0.4366 | 670.0 | 501.5 | |
| 0.00 | 2.52 | 0.00 | 1.38 | 12.86 | 176.01 | -20.80 | 52.91 | 0.4359 | 737.0 | 646.9 | |
| 1.62 | -36.00 | 0.88 | -36.00 | 10.58 | 176.06 | -20.76 | 57.36 | 0.4155 | 1089.8 | 999999 | |
| 0.45 | -36.00 | 0.24 | -36.00 | 10.77 | 176.04 | -20.77 | 56.99 | 0.4172 | 838.8 | 999999 | |
| 0.36 | -36.00 | 0.20 | -36.00 | 10.33 | 176.07 | -20.74 | 57.85 | 0.4132 | 1059.2 | 999999 | |
| 0.00 | 1.26 | 0.00 | 0.69 | 13.12 | 175.72 | -21.09 | 52.80 | 0.4418 | 538.0 | 496.9 | |
| 10.96 | -36.00 | 5.98 | -36.00 | 10.55 | 175.73 | -21.09 | 57.81 | 0.4197 | 1044.0 | 999999 | |
| 0.27 | -36.00 | 0.15 | -36.00 | 10.34 | 175.51 | -21.30 | 58.51 | 0.4209 | 754.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
