SDO HMI 2014-05-17 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.89 | 69.99 | 7.81 | 61.40 | 15.70 | 249.43 | 53.17 | 290.96 | 0.8273 | -445.1 | -303.3 | |
|
previous
or next observation for the same group /

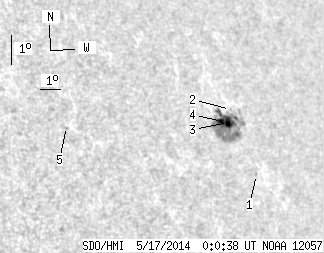

back to the solar disc SDO HMI 2014-05-17 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.88 | 14.09 | 250.51 | 54.25 | 288.78 | 0.8336 | 540.0 | 482.3 | |
| 0.00 | 0.81 | 0.00 | 0.72 | 16.13 | 249.88 | 53.62 | 291.34 | 0.8325 | -93.0 | -106.1 | |
| 5.30 | 67.65 | 4.67 | 59.40 | 15.71 | 249.61 | 53.35 | 290.92 | 0.8290 | -640.9 | -325.2 | |
| 3.59 | -3.00 | 3.14 | -3.00 | 15.73 | 249.25 | 52.99 | 291.05 | 0.8257 | -857.3 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.40 | 15.32 | 241.61 | 45.35 | 293.13 | 0.7485 | 427.0 | 433.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
