SDO HMI 2014-05-17 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.94 | 273.73 | 36.07 | 145.84 | 10.30 | 178.90 | -17.36 | 52.99 | 0.3682 | -52.1 | 76.1 | |
|
previous
or next observation for the same group /

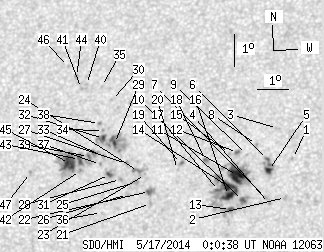

back to the solar disc SDO HMI 2014-05-17 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.44 | 0.00 | 0.75 | 10.57 | 182.89 | -13.37 | 45.34 | 0.3209 | 541.0 | 351.8 | |
| 0.00 | 2.34 | 0.00 | 1.22 | 9.37 | 182.72 | -13.54 | 48.55 | 0.3095 | -905.0 | -688.5 | |
| 0.00 | 1.80 | 0.00 | 0.95 | 11.51 | 182.37 | -13.89 | 44.36 | 0.3378 | 824.0 | 661.8 | |
| 0.00 | 1.08 | 0.00 | 0.56 | 9.19 | 182.22 | -14.04 | 50.02 | 0.3139 | -930.0 | -789.8 | |
| 3.05 | 12.85 | 1.60 | 6.73 | 10.21 | 182.15 | -14.11 | 47.71 | 0.3258 | -1140.2 | -754.5 | |
| 0.63 | -5.00 | 0.33 | -5.00 | 10.55 | 182.10 | -14.16 | 47.02 | 0.3301 | -798.7 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.03 | 9.37 | 182.09 | -14.17 | 49.82 | 0.3175 | -919.0 | -676.2 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 11.02 | 181.73 | -14.53 | 46.71 | 0.3398 | -658.0 | -490.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 10.72 | 181.43 | -14.84 | 47.97 | 0.3402 | -665.0 | -431.8 | |
| 1.71 | 8.80 | 0.89 | 4.61 | 9.29 | 181.36 | -14.90 | 51.42 | 0.3260 | -1199.2 | -795.8 | |
| 17.79 | 91.82 | 9.35 | 48.28 | 10.07 | 181.17 | -15.09 | 49.93 | 0.3364 | -1159.3 | -532.5 | |
| 0.72 | 2.34 | 0.38 | 1.23 | 10.78 | 181.13 | -15.13 | 48.37 | 0.3444 | -905.1 | -693.7 | |
| 1.44 | 6.74 | 0.75 | 3.53 | 9.02 | 180.99 | -15.27 | 52.76 | 0.3281 | -1064.2 | -710.2 | |
| 10.15 | -11.00 | 5.34 | -11.00 | 9.70 | 180.93 | -15.33 | 51.23 | 0.3357 | -1097.3 | 999999 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 10.75 | 180.88 | -15.38 | 48.90 | 0.3473 | -557.0 | -470.8 | |
| 7.19 | -11.00 | 3.77 | -11.00 | 9.45 | 180.91 | -15.35 | 51.86 | 0.3335 | -1130.2 | 999999 | |
| 1.53 | -11.00 | 0.80 | -11.00 | 9.61 | 180.58 | -15.68 | 52.06 | 0.3393 | -576.3 | 999999 | |
| 0.00 | 2.34 | 0.00 | 1.24 | 10.58 | 180.12 | -16.14 | 50.64 | 0.3550 | -665.0 | -640.9 | |
| 0.00 | 2.16 | 0.00 | 1.15 | 10.46 | 179.35 | -16.91 | 52.17 | 0.3636 | -897.0 | -753.2 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 10.28 | 179.24 | -17.03 | 52.78 | 0.3634 | -538.0 | -497.9 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 9.24 | 178.42 | -17.84 | 56.40 | 0.3646 | 901.0 | 575.7 | |
| 1.71 | 5.66 | 0.91 | 3.01 | 9.61 | 178.37 | -17.89 | 55.62 | 0.3686 | 700.9 | 236.5 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 10.14 | 178.21 | -18.05 | 54.67 | 0.3755 | 557.0 | 411.8 | |
| 0.00 | 6.92 | 0.00 | 3.70 | 10.24 | 177.98 | -18.28 | 54.79 | 0.3795 | 815.0 | 706.7 | |
| 0.00 | 4.04 | 0.00 | 2.16 | 9.90 | 177.87 | -18.39 | 55.70 | 0.3779 | 923.0 | 796.0 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 9.53 | 177.66 | -18.60 | 56.82 | 0.3775 | 791.0 | 683.5 | |
| 0.00 | 2.25 | 0.00 | 1.21 | 10.49 | 177.57 | -18.69 | 54.82 | 0.3871 | 861.0 | 773.7 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 10.00 | 177.41 | -18.85 | 56.13 | 0.3849 | 903.0 | 734.6 | |
| 1.44 | 32.88 | 0.78 | 17.75 | 11.12 | 177.14 | -19.12 | 54.10 | 0.3985 | 1214.8 | 676.4 | |
| 0.00 | 0.99 | 0.00 | 0.54 | 12.47 | 176.94 | -19.32 | 51.66 | 0.4135 | 617.0 | 539.2 | |
| 1.53 | 5.66 | 0.82 | 3.04 | 10.16 | 177.04 | -19.22 | 56.28 | 0.3913 | 1042.5 | 764.6 | |
| 1.98 | -29.00 | 1.07 | -29.00 | 11.28 | 176.77 | -19.49 | 54.28 | 0.4048 | 904.0 | 999999 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 10.72 | 176.81 | -19.46 | 55.39 | 0.3993 | 881.0 | 748.6 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 11.53 | 176.75 | -19.51 | 53.79 | 0.4073 | 677.0 | 557.3 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 12.91 | 176.58 | -19.68 | 51.32 | 0.4223 | 715.0 | 498.5 | |
| 0.00 | 0.72 | 0.00 | 0.39 | 8.98 | 176.85 | -19.42 | 59.14 | 0.3841 | 701.0 | 549.0 | |
| 0.00 | 1.17 | 0.00 | 0.63 | 10.47 | 176.72 | -19.54 | 56.03 | 0.3982 | 782.0 | 670.2 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 11.75 | 176.60 | -19.66 | 53.55 | 0.4112 | 593.0 | 456.2 | |
| 0.72 | 54.17 | 0.39 | 29.42 | 10.73 | 176.31 | -19.95 | 56.03 | 0.4059 | 1023.6 | 540.6 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 12.98 | 176.08 | -20.18 | 51.87 | 0.4292 | 645.0 | 523.9 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 12.86 | 175.92 | -20.34 | 52.31 | 0.4300 | 704.0 | 580.9 | |
| 0.00 | 1.98 | 0.00 | 1.07 | 10.30 | 176.08 | -20.18 | 57.24 | 0.4053 | 998.0 | 851.0 | |
| 3.14 | -39.00 | 1.71 | -39.00 | 10.64 | 176.02 | -20.24 | 56.59 | 0.4090 | 998.7 | 999999 | |
| 0.00 | 1.44 | 0.00 | 0.79 | 13.24 | 175.72 | -20.54 | 51.86 | 0.4360 | 714.0 | 601.1 | |
| 13.21 | -39.00 | 7.18 | -39.00 | 10.52 | 175.70 | -20.56 | 57.24 | 0.4123 | 1025.3 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 13.56 | 175.43 | -20.83 | 51.66 | 0.4426 | 646.0 | 485.8 | |
| 0.00 | 1.80 | 0.00 | 0.98 | 10.26 | 174.43 | -21.83 | 59.28 | 0.4274 | 813.0 | 658.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
