SDO HMI 2014-05-17 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.35 | 21.22 | 5.59 | 14.20 | -17.18 | 155.87 | -40.39 | 113.06 | 0.6752 | 427.2 | 253.6 | |
|
previous
or next observation for the same group /

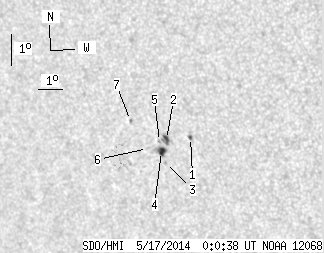

back to the solar disc SDO HMI 2014-05-17 00:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.81 | 1.89 | 0.53 | 1.24 | -17.01 | 157.06 | -39.21 | 113.29 | 0.6604 | 560.4 | 504.2 | |
| 2.96 | 7.01 | 1.98 | 4.68 | -17.04 | 156.05 | -40.21 | 112.94 | 0.6725 | 764.3 | 588.9 | |
| 0.00 | 0.90 | 0.00 | 0.60 | -17.76 | 155.82 | -40.44 | 113.88 | 0.6779 | 459.0 | 426.3 | |
| 4.58 | 7.82 | 3.08 | 5.25 | -17.41 | 155.75 | -40.51 | 113.35 | 0.6775 | 731.4 | 112.9 | |
| 0.00 | 1.26 | 0.00 | 0.84 | -17.10 | 155.75 | -40.51 | 112.90 | 0.6764 | 391.0 | 400.8 | |
| 0.00 | 0.90 | 0.00 | 0.61 | -17.30 | 155.19 | -41.07 | 112.98 | 0.6837 | -237.0 | -134.8 | |
| 0.00 | 1.44 | 0.00 | 0.98 | -16.41 | 154.71 | -41.55 | 111.54 | 0.6864 | -579.0 | -534.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
