SDO HMI 2014-05-17 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.11 | 261.62 | 36.66 | 139.00 | 10.32 | 178.92 | -16.78 | 52.06 | 0.3609 | -81.3 | 38.9 | |
|
previous
or next observation for the same group /

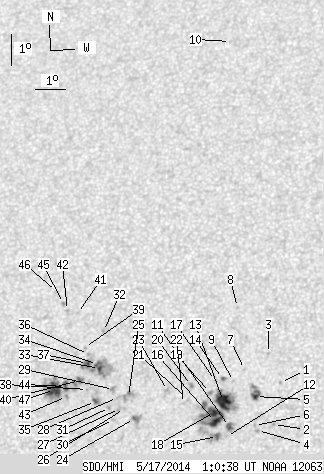

back to the solar disc SDO HMI 2014-05-17 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.56 | 10.64 | 182.94 | -12.77 | 43.91 | 0.3146 | 646.0 | 455.4 | |
| 0.00 | 0.81 | 0.00 | 0.42 | 9.34 | 182.77 | -12.94 | 47.36 | 0.3017 | -809.0 | -680.1 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 11.55 | 182.52 | -13.19 | 42.85 | 0.3302 | 833.0 | 653.8 | |
| 0.00 | 1.62 | 0.00 | 0.84 | 9.16 | 182.27 | -13.44 | 48.88 | 0.3059 | -1038.0 | -814.0 | |
| 2.25 | 12.13 | 1.17 | 6.34 | 10.21 | 182.16 | -13.54 | 46.55 | 0.3188 | -1197.6 | -775.5 | |
| 0.00 | 1.35 | 0.00 | 0.70 | 9.31 | 182.17 | -13.54 | 48.70 | 0.3089 | -877.0 | -616.7 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 11.06 | 181.78 | -13.93 | 45.45 | 0.3330 | -541.0 | -327.2 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 13.00 | 181.45 | -14.26 | 42.12 | 0.3593 | -647.0 | -492.0 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 10.69 | 181.44 | -14.26 | 46.94 | 0.3328 | -667.0 | -570.7 | |
| 0.00 | 0.63 | 0.00 | 0.35 | 21.59 | 180.52 | -15.18 | 30.94 | 0.4756 | -578.0 | -439.7 | |
| 2.43 | 6.56 | 1.27 | 3.43 | 9.29 | 181.38 | -14.33 | 50.35 | 0.3186 | -1194.1 | -825.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 8.98 | 181.30 | -14.41 | 51.27 | 0.3165 | -896.0 | -660.3 | |
| 15.09 | 76.46 | 7.92 | 40.10 | 10.07 | 181.15 | -14.55 | 48.92 | 0.3296 | -1197.0 | -552.3 | |
| 0.72 | 1.62 | 0.38 | 0.85 | 10.79 | 181.09 | -14.62 | 47.42 | 0.3382 | -852.6 | -700.4 | |
| 1.62 | 16.17 | 0.85 | 8.46 | 8.99 | 181.01 | -14.70 | 51.81 | 0.3203 | -1088.9 | -543.2 | |
| 9.16 | -13.00 | 4.80 | -13.00 | 9.45 | 180.93 | -14.78 | 50.82 | 0.3261 | -1126.6 | 999999 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 10.73 | 180.87 | -14.84 | 47.97 | 0.3402 | -666.0 | -497.8 | |
| 10.06 | -13.00 | 5.28 | -13.00 | 9.73 | 180.85 | -14.86 | 50.29 | 0.3299 | -1076.0 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.18 | 10.35 | 180.73 | -14.98 | 49.08 | 0.3380 | -770.0 | -607.2 | |
| 0.00 | 2.25 | 0.00 | 1.19 | 10.58 | 180.11 | -15.60 | 49.70 | 0.3481 | -803.0 | -729.0 | |
| 0.00 | 1.17 | 0.00 | 0.62 | 10.15 | 180.00 | -15.71 | 50.87 | 0.3450 | -626.0 | -463.7 | |
| 0.00 | 1.08 | 0.00 | 0.57 | 10.02 | 179.88 | -15.83 | 51.37 | 0.3453 | -267.0 | -223.3 | |
| 0.00 | 1.62 | 0.00 | 0.86 | 10.43 | 179.35 | -16.36 | 51.35 | 0.3563 | -844.0 | -723.2 | |
| 0.72 | 8.72 | 0.38 | 4.62 | 9.58 | 178.33 | -17.38 | 54.93 | 0.3614 | 854.4 | 325.2 | |
| 0.00 | 7.10 | 0.00 | 3.78 | 10.27 | 178.10 | -17.61 | 53.73 | 0.3708 | 415.0 | 405.4 | |
| 0.00 | 0.99 | 0.00 | 0.53 | 9.90 | 177.99 | -17.72 | 54.73 | 0.3688 | 941.0 | 768.5 | |
| 0.00 | 2.52 | 0.00 | 1.34 | 9.90 | 177.83 | -17.88 | 54.96 | 0.3710 | 800.0 | 759.4 | |
| 0.00 | 1.26 | 0.00 | 0.67 | 10.24 | 177.74 | -17.96 | 54.33 | 0.3752 | 764.0 | 596.2 | |
| 0.00 | 3.86 | 0.00 | 2.07 | 10.49 | 177.60 | -18.11 | 53.99 | 0.3794 | 830.0 | 698.5 | |
| 0.00 | 1.35 | 0.00 | 0.72 | 9.56 | 177.65 | -18.06 | 55.99 | 0.3703 | 913.0 | 711.5 | |
| 0.00 | 1.44 | 0.00 | 0.77 | 9.93 | 177.50 | -18.21 | 55.36 | 0.3756 | 833.0 | 728.8 | |
| 0.00 | 1.08 | 0.00 | 0.58 | 12.31 | 177.15 | -18.55 | 50.88 | 0.4024 | 849.0 | 699.8 | |
| 1.98 | 37.02 | 1.06 | 19.93 | 11.15 | 177.10 | -18.60 | 53.31 | 0.3920 | 1175.0 | 623.8 | |
| 1.89 | -33.00 | 1.02 | -33.00 | 11.28 | 177.03 | -18.68 | 53.15 | 0.3941 | 883.4 | 999999 | |
| 1.62 | 4.49 | 0.87 | 2.41 | 10.13 | 177.04 | -18.67 | 55.60 | 0.3836 | 1039.8 | 844.5 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 11.60 | 176.71 | -18.99 | 52.95 | 0.4012 | 715.0 | 539.8 | |
| 2.79 | -33.00 | 1.50 | -33.00 | 11.31 | 176.70 | -19.01 | 53.55 | 0.3987 | 860.5 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 10.50 | 176.75 | -18.95 | 55.18 | 0.3907 | 824.0 | 699.1 | |
| 0.00 | 1.26 | 0.00 | 0.68 | 11.82 | 176.57 | -19.14 | 52.71 | 0.4051 | 680.0 | 531.0 | |
| 1.80 | 8.45 | 0.97 | 4.56 | 10.79 | 176.47 | -19.23 | 54.96 | 0.3969 | 981.5 | 830.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 12.89 | 176.26 | -19.45 | 51.06 | 0.4192 | 727.0 | 598.3 | |
| 0.00 | 1.17 | 0.00 | 0.64 | 12.99 | 175.92 | -19.79 | 51.34 | 0.4243 | 747.0 | 623.1 | |
| 0.00 | 1.44 | 0.00 | 0.78 | 10.30 | 176.08 | -19.63 | 56.54 | 0.3978 | 1058.0 | 839.6 | |
| 3.14 | 40.25 | 1.70 | 21.80 | 10.61 | 176.03 | -19.68 | 55.94 | 0.4012 | 1004.3 | 463.5 | |
| 0.00 | 2.07 | 0.00 | 1.13 | 13.21 | 175.77 | -19.94 | 51.13 | 0.4283 | 767.0 | 595.2 | |
| 0.00 | 1.35 | 0.00 | 0.74 | 13.59 | 175.50 | -20.21 | 50.78 | 0.4352 | 659.0 | 455.9 | |
| 13.84 | -44.00 | 7.49 | -44.00 | 10.52 | 175.67 | -20.04 | 56.59 | 0.4052 | 1026.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
