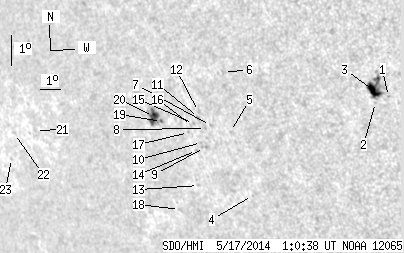

SDO HMI 2014-05-17 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.69 | 58.52 | 14.24 | 44.99 | -18.16 | 147.49 | -48.21 | 112.01 | 0.7630 | 143.4 | 55.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-17 01:00:38 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.61 | -17.82 | 154.27 | -41.44 | 113.58 | 0.6898 | -703.0 | -555.0 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -17.99 | 153.66 | -42.04 | 113.59 | 0.6974 | -416.0 | -410.7 | |
| 9.52 | 23.36 | 6.55 | 16.03 | -17.61 | 153.69 | -42.02 | 113.08 | 0.6958 | -748.4 | -557.6 | |
| 0.00 | 0.63 | 0.00 | 0.49 | -20.76 | 147.02 | -48.69 | 115.00 | 0.7773 | 521.0 | 461.3 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -18.70 | 146.78 | -48.92 | 112.35 | 0.7743 | 366.0 | 366.5 | |
| 0.00 | 1.35 | 0.00 | 1.04 | -16.85 | 147.13 | -48.58 | 110.08 | 0.7664 | 181.0 | 265.4 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -18.48 | 145.88 | -49.82 | 111.84 | 0.7829 | 639.0 | 596.1 | |
| 0.00 | 0.81 | 0.00 | 0.64 | -18.57 | 145.60 | -50.11 | 111.87 | 0.7860 | 600.0 | 535.1 | |
| 0.00 | 2.52 | 0.00 | 2.02 | -19.16 | 145.30 | -50.41 | 112.54 | 0.7903 | 533.0 | 505.5 | |
| 0.00 | 0.90 | 0.00 | 0.72 | -19.00 | 145.22 | -50.49 | 112.32 | 0.7908 | 467.0 | 444.2 | |
| 0.00 | 1.17 | 0.00 | 0.93 | -18.21 | 145.39 | -50.32 | 111.38 | 0.7873 | 558.0 | 532.1 | |
| 0.00 | 1.71 | 0.00 | 1.36 | -18.03 | 145.47 | -50.24 | 111.16 | 0.7861 | 607.0 | 485.4 | |
| 0.00 | 0.90 | 0.00 | 0.74 | -20.35 | 144.46 | -51.24 | 113.78 | 0.8012 | 383.0 | 314.8 | |
| 0.00 | 0.81 | 0.00 | 0.66 | -19.25 | 144.86 | -50.85 | 112.53 | 0.7948 | 393.0 | 310.9 | |
| 0.00 | 0.72 | 0.00 | 0.58 | -18.39 | 145.07 | -50.64 | 111.52 | 0.7909 | 438.0 | 352.0 | |
| 0.00 | 0.99 | 0.00 | 0.80 | -18.45 | 144.94 | -50.77 | 111.57 | 0.7923 | 283.0 | 266.8 | |
| 0.00 | 0.81 | 0.00 | 0.66 | -18.67 | 144.70 | -51.01 | 111.77 | 0.7952 | 201.0 | 190.4 | |
| 0.00 | 1.17 | 0.00 | 0.99 | -21.08 | 143.11 | -52.60 | 114.32 | 0.8156 | 432.0 | 346.4 | |
| 0.45 | 16.62 | 0.37 | 13.95 | -18.28 | 143.47 | -52.24 | 111.01 | 0.8064 | 585.4 | 409.3 | |
| 8.72 | -19.00 | 7.32 | -19.00 | -18.11 | 143.12 | -52.59 | 110.72 | 0.8094 | 637.6 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -18.31 | 136.23 | -59.48 | 109.72 | 0.8708 | -405.0 | -478.7 | |
| 0.00 | 0.72 | 0.00 | 0.75 | -18.35 | 134.84 | -60.87 | 109.57 | 0.8818 | -416.0 | -338.6 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -19.13 | 134.16 | -61.55 | 110.34 | 0.8879 | -174.0 | -275.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
